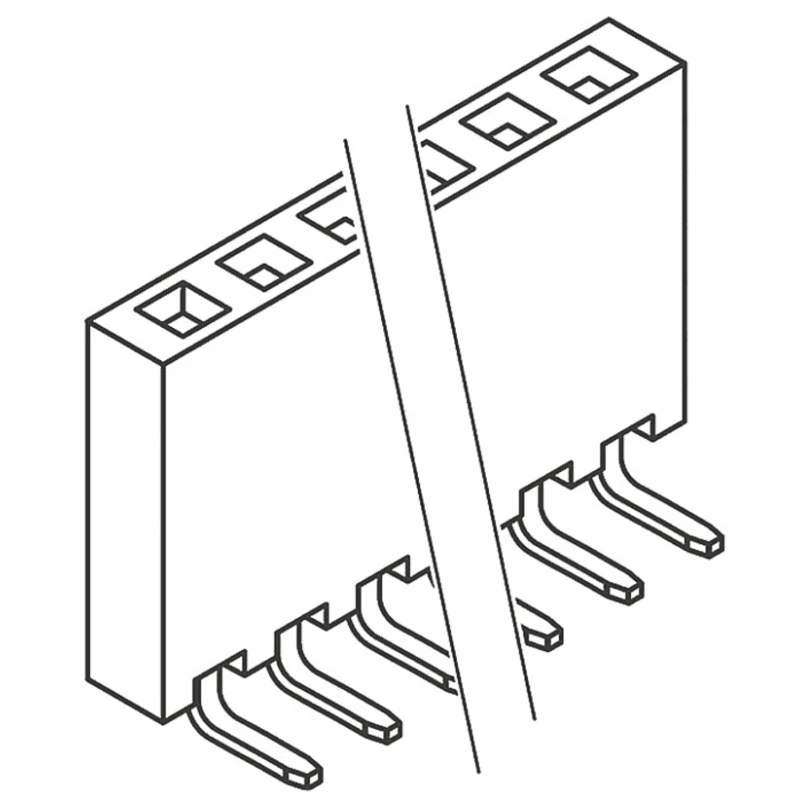

Samtec Right Angle Through Hole PCB Socket 9-Contact 1 Row 2.54 mm Pitch 550V Gold Plated SSW-109-02-G-S-RA
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 550V |
| Brand | Samtec |
| Orientation | Right Angle |
| Current | 6.9A |
| Model | SSW-109-02-G-S-RA |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Bronze |
| Series | SSW |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 9 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- Constructed with liquid crystal polymer housing for high durability.
- Features phosphor bronze contacts with 0.51μm gold plating for excellent conductivity.
- Designed for through-hole mounting with right angle orientation.
- Supports current rating of 6.9 A and voltage up to 550 V.
- Operates between -55°C to 125°C with robust thermal performance.
- Compatible with TSW and TSM series headers offering versatile mating options.
- Offers a single row with 9 female contacts spaced at 2.54 mm pitch.
- Ideal for industrial and electronic component PCB applications.
Product Description
Samtec SSW-109-02-G-S-RA is a right angle through hole PCB socket designed for board-to-board applications featuring 9 contacts arranged in a single row with a 2.54 mm pitch. It utilizes a black liquid crystal polymer housing ensuring high mechanical strength and thermal stability. The phosphor bronze contacts are plated with 0.51μm gold on the mating area and gold flash on the tail providing excellent electrical performance and corrosion resistance.
This PCB socket supports a current rating of 6.9 A and can withstand voltages up to 550 V. It is built for through-hole mounting with right angle orientation, facilitating compact PCB designs and reliable connections. The operating temperature range of -55°C to 125°C makes it suitable for harsh environments common in industrial electronics and manufacturing equipment.
The SSW series accepts mating from TSW series through hole and TSM SMT square post headers, enabling flexible mechanical and electrical configurations. Its robust construction and precise contact arrangement ensure dependable signal integrity in power and connector applications.
Common use cases include electronic device assembly, industrial controls, communications equipment, and other PCB interconnection needs requiring durability and high performance over a broad temperature range.
Liquid crystal polymer housing for mechanical and thermal durability. Gold plated phosphor bronze contacts ensuring reliable conductivity. Right angle orientation for PCB space optimization. Through-hole solder termination type for secure mounting.
Voltage rating of 550 V and current carrying capacity of 6.9 A. Compliance with industrial standards though no specific certifications stated. Operating temperature from -55°C to 125°C for demanding environments. Compatible with related Samtec header series for board-to-board connections.
Explore the extensive range of PCB Sockets and connectors available to meet your industrial and electronic component needs at EnvMart.
