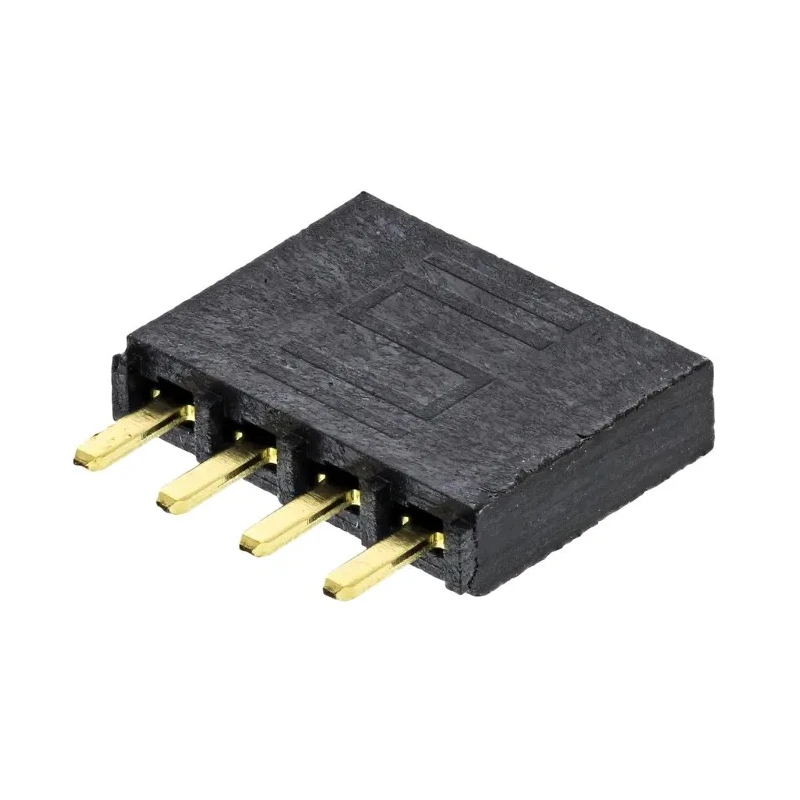

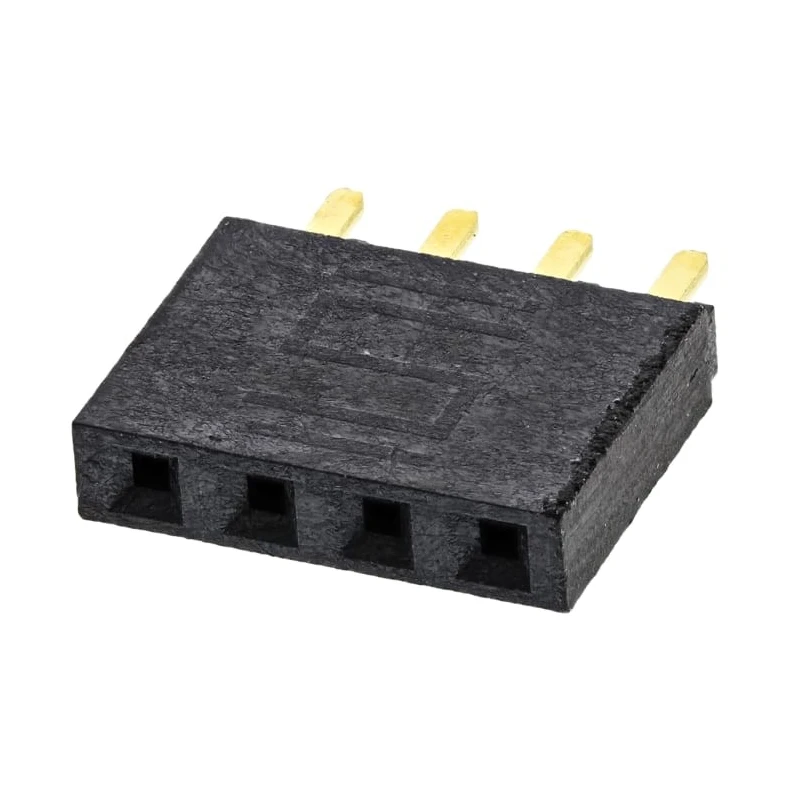

Samtec PCB Socket Straight Through Hole 4-Contact 1 Row 2.54 mm Pitch Solder 550V SSW-104-01-G-S

The Samtec SSW-104-01-G-S is a high-quality PCB socket designed for straight through hole mounting with four contacts arranged in a single row at a 2.54 mm pitch. The gold flash plated bronze contacts provide superior electrical conductivity and resistance to corrosion, ensuring effective signal and power transmission in electronic systems.

The housing is made from liquid crystal polymer, offering excellent insulation and mechanical strength while protecting the contacts from electrical shock and environmental damage. Its through-hole mounting type provides a sturdy and vibration-resistant installation, ideal for rugged industrial and manufacturing settings.

This PCB socket supports a current rating of 6.9A and voltage rating of 550V, making it suitable for advanced electronics, industrial automation, medical device manufacturing, and pharmaceutical equipment. It reliably operates across a wide temperature range from -55°C to 125°C, accommodating various environmental conditions.

The low insertion force characteristic reduces friction and wear during mated partner insertion and removal, enhancing durability and ease of maintenance. Designed to optimize PCB board density, the compact 2.54 mm pitch allows for efficient space utilization in densely packed circuit designs.

Applications include automated assembly lines, industrial devices, relays, stepper motors, and multiple board-to-board interconnects. This socket series supports flexible configurations, enabling easy retrofitting and integration into new or existing electronic assemblies.

Gold flash plated bronze contacts ensure excellent electrical performance and corrosion resistance. Liquid crystal polymer housing provides durability and electrical insulation. Through-hole mount type offers strong mechanical integrity and vibration resistance.

Current rated at 6.9A with 550V voltage rating for demanding industrial usage. Wide operating temperature range from -55°C to 125°C. Low insertion force design minimizes wear and prolongs connector lifespan. Compact 2.54 mm pitch maximizes board space efficiency.

Ideal for electronics manufacturing, industrial automation, and medical device applications. Explore our range of PCB Sockets and connectors at EnvMart to find the perfect components for your electronic assembly needs.
