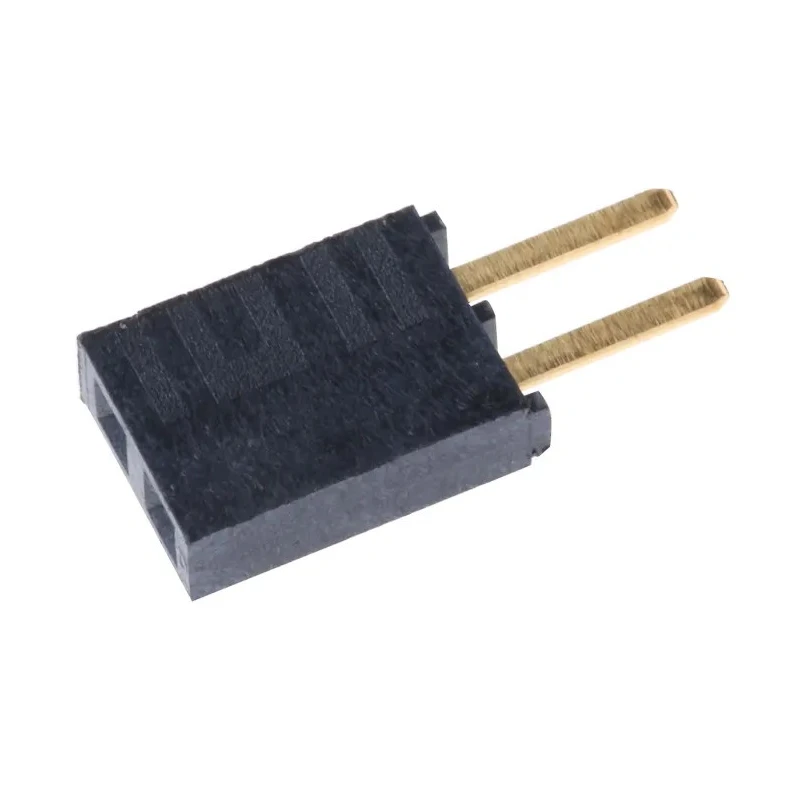

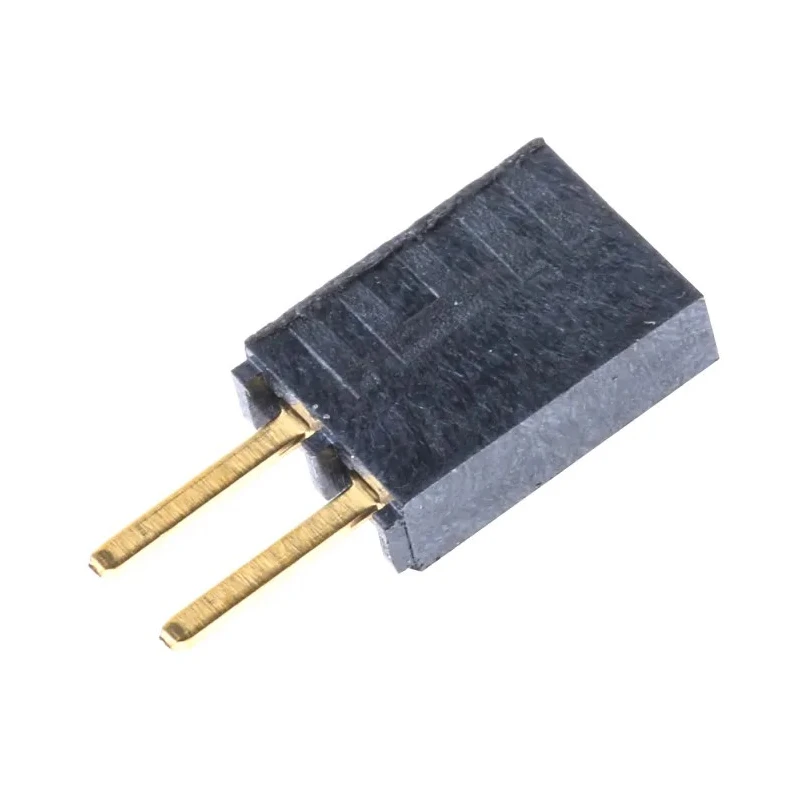

Samtec Straight Through Hole PCB Socket 2-Contact 1 Row 2.54 mm Pitch 6.9A Current Rating Solder Mount SSW-102-02-G-S
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 550V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 6.9A |
| Model | SSW-102-02-G-S |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Bronze |
| Series | SSW |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 2 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- Supports a maximum current rating of 6.9A per pin for medium power applications.
- Constructed with phosphor bronze contacts plated in gold for excellent conductivity and corrosion resistance.
- Housing made from liquid crystal polymer offering effective electrical insulation.
- Designed for through hole solder mounting with straight orientation for easy front-facing installation.
- Operates reliably within a wide temperature range from -55°C to 125°C.
- Durable design supports up to 100 mating cycles ensuring long service life.
- Compatible with board-to-board connector systems and suitable for consumer electronics and aerospace.
- Compact 2.54 mm pitch spacing ideal for space-limited PCB layouts.
Product Description
Samtec SSW-102-02-G-S Straight Through Hole PCB Socket is a reliable connector designed for efficient board-to-board mounting. This single row socket features two female contacts with a pitch of 2.54 mm, facilitating secure and stable signal and power transmission. The connector is rated for up to 6.9A current per pin, making it suitable for medium-power electronic applications.
The contacts are made from phosphor bronze and plated with gold to ensure outstanding electrical conductivity and corrosion resistance. The housing utilizes liquid crystal polymer, providing excellent electrical insulation and durability even under harsh operating conditions.
Mounting is accomplished by soldering the pins into through holes on the PCB, with the straight orientation allowing convenient front-facing installation. The product is engineered to withstand a wide operating temperature range from -55°C to 125°C and endures up to 100 mating cycles, ensuring longevity in demanding industrial environments.
This PCB socket finds applications across consumer electronics, aerospace engineering, telecommunications, and medical technology sectors where reliable board connections are essential. Its compact design with 2.54 mm pitch is ideal for use in space-constrained PCB assemblies.
Supports a maximum current rating of 6.9A per pin for medium power applications. Phosphor bronze contacts with gold plating ensure durability and conductivity. Liquid crystal polymer housing offers effective insulation and mechanical strength.
Through hole solder mount with straight orientation for easy installation. Wide operating temperature range of -55°C to 125°C for harsh environments. Durable for up to 100 mating cycles ensuring long-term performance.
For users seeking trusted PCB sockets with reliable performance, the Samtec SSW series offers well-engineered connectors meeting stringent industrial standards. Explore more Samtec products and PCB Socket solutions in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum current rating of 6.9A per pin, making it suitable for medium power applications.
The contacts of this PCB socket are spaced at a pitch of 2.54 mm, which is ideal for compact PCB layouts.
It features contacts made from phosphor bronze plated with gold for conductivity, and the housing is constructed from liquid crystal polymer for effective insulation.
This unit operates reliably within a wide temperature range from -55°C to 125°C.
The socket is designed for through hole solder mounting, allowing for straightforward installation on printed circuit boards.
It is designed to support up to 100 mating cycles, ensuring longevity in various applications.
This PCB socket is compatible with board-to-board connector systems, making it versatile for various electronic applications.
The orientation of this model is straight, allowing for easy front-facing installation on the PCB.
This unit features two female contacts, facilitating secure and stable connections.
The voltage rating for this connector is 550V, suitable for various electronic applications.
The country of origin for this PCB socket is India.
It is suitable for applications in consumer electronics, aerospace engineering, telecommunications, and medical technology where reliable board connections are essential.
