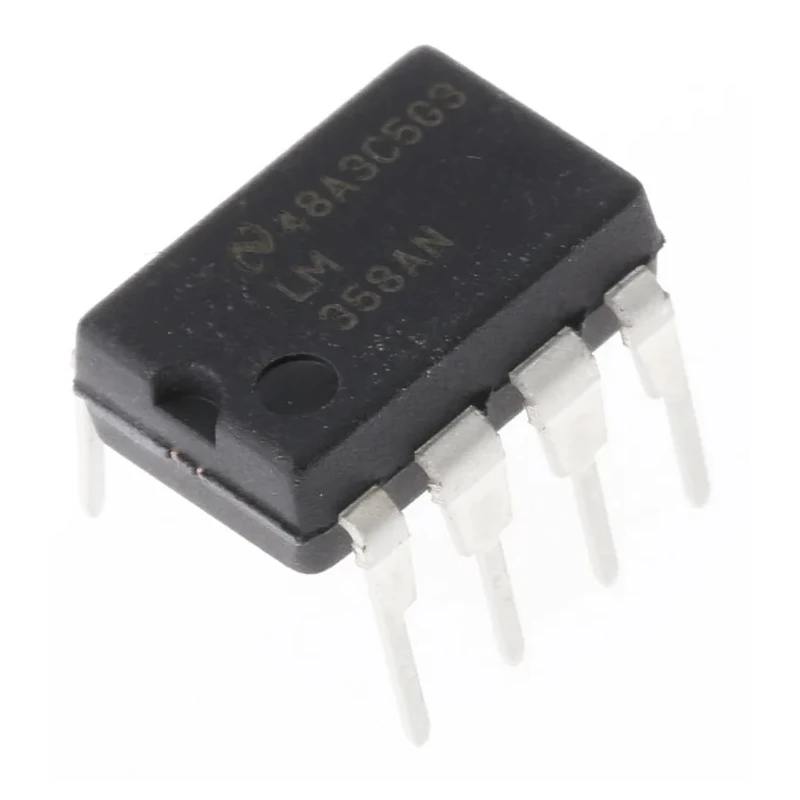

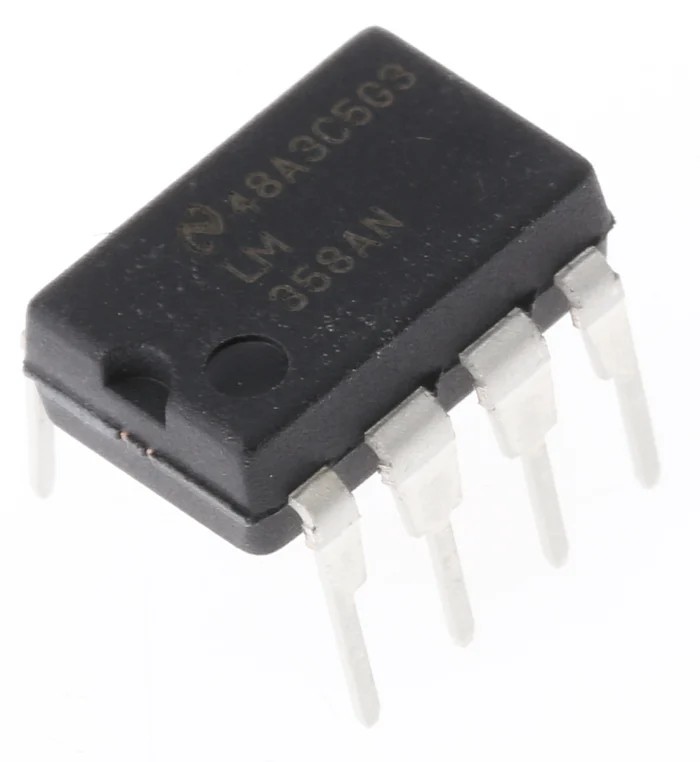

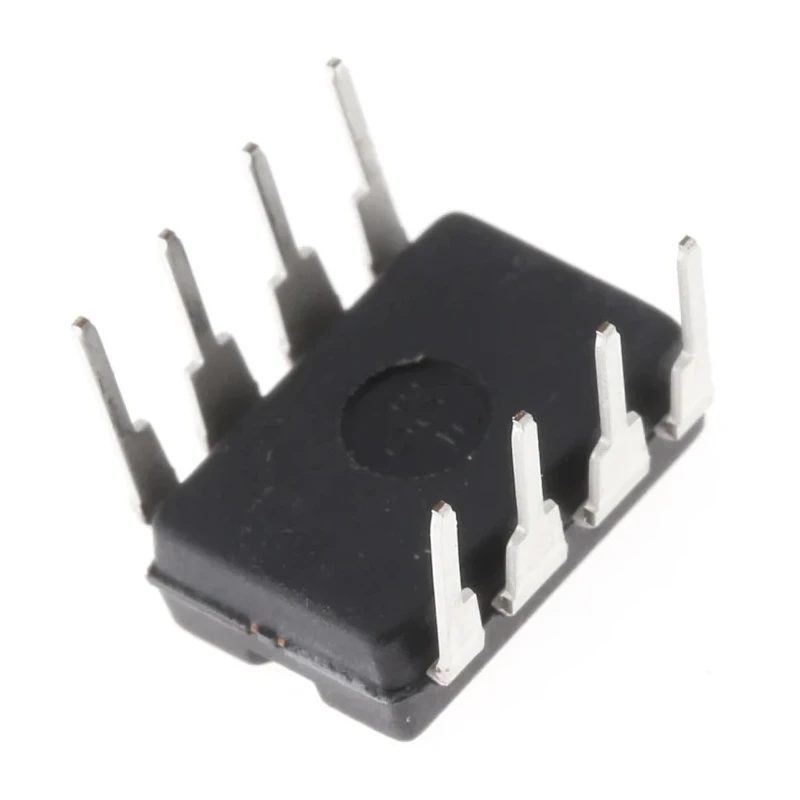

Texas Instruments Operational Amplifier 8-Pin PDIP, 32V, 2 Channels, LM358AN/NOPB

Texas Instruments LM358AN/NOPB is a dual-channel operational amplifier housed in an 8-pin PDIP package designed for a wide range of general purpose applications. It offers a maximum supply voltage rating of 32 volts and a minimum supply voltage of 3 volts, providing flexibility for diverse circuit designs.

This op amp features a low input bias current of 250 nanoamperes and an input offset voltage of 7 millivolts, ensuring accurate signal amplification with minimal drift. The slew rate of 0.3 volts per microsecond supports moderate speed signal changes, suitable for analog signal conditioning.

The device can operate reliably in ambient temperatures from 0°C to 70°C, making it suitable for typical industrial and laboratory environments. Its output current capability of up to 40 milliamperes allows it to drive various loads effectively.

Physical dimensions of 10.16mm length, 6.6mm width, and 5.08mm height optimize PCB layout space without compromising performance. Manufactured in Malaysia, this LM358-N series op amp does not have specific automotive standards or additional certifications, focusing on cost-effective, reliable operation.

Commonly employed in electronic circuits within industrial control systems, laboratory instrumentation, and consumer electronics, the LM358AN/NOPB enables precise signal amplification and processing. It is available in through-hole mounting, facilitating easy installation on printed circuit boards.

This operational amplifier supports a maximum supply voltage of 32 volts. The device features two independent channels in an 8-pin PDIP package. It operates at temperatures from 0°C to 70°C for reliable performance. The input bias current is 250 nanoamperes, suitable for precision applications.

Input offset voltage is low at 7 millivolts, reducing signal distortion. The slew rate is 0.3 volts per microsecond, enabling moderate speed signal processing. Output current is capable up to 40 milliamperes, supporting a variety of loads.

Compact dimensions of 10.16mm length, 6.6mm width, and 5.08mm height optimize PCB space. The device is manufactured in Malaysia and conforms to the LM358-N series standards. Ideal for use in industrial, laboratory instrumentation, and electronic equipment requiring general purpose amplification.

This product is catalogued under operational amplifiers in semiconductor components and caters to engineers and designers seeking robust and cost-efficient amplification solutions.
