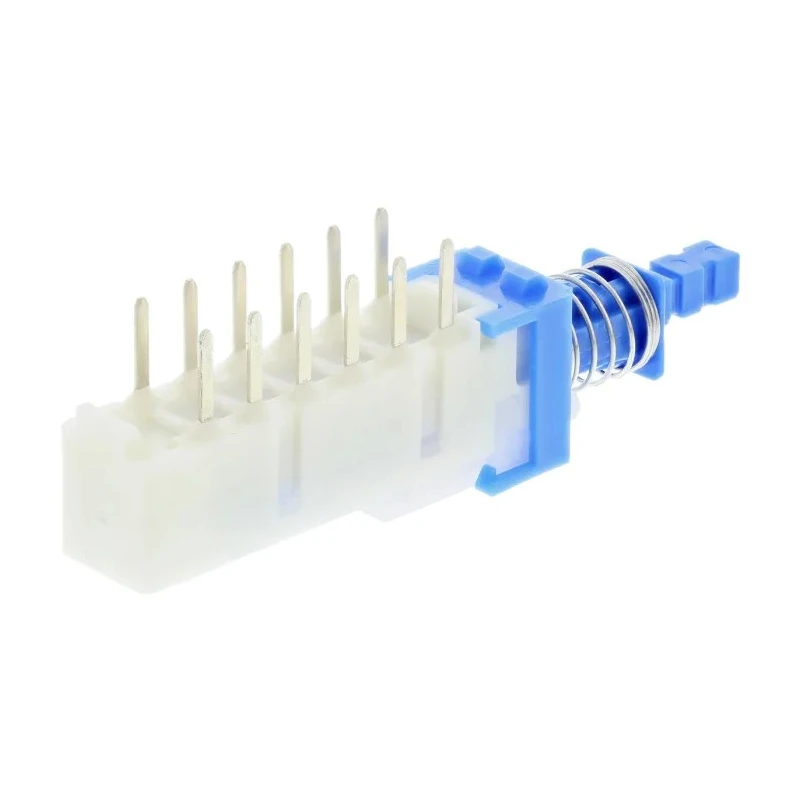

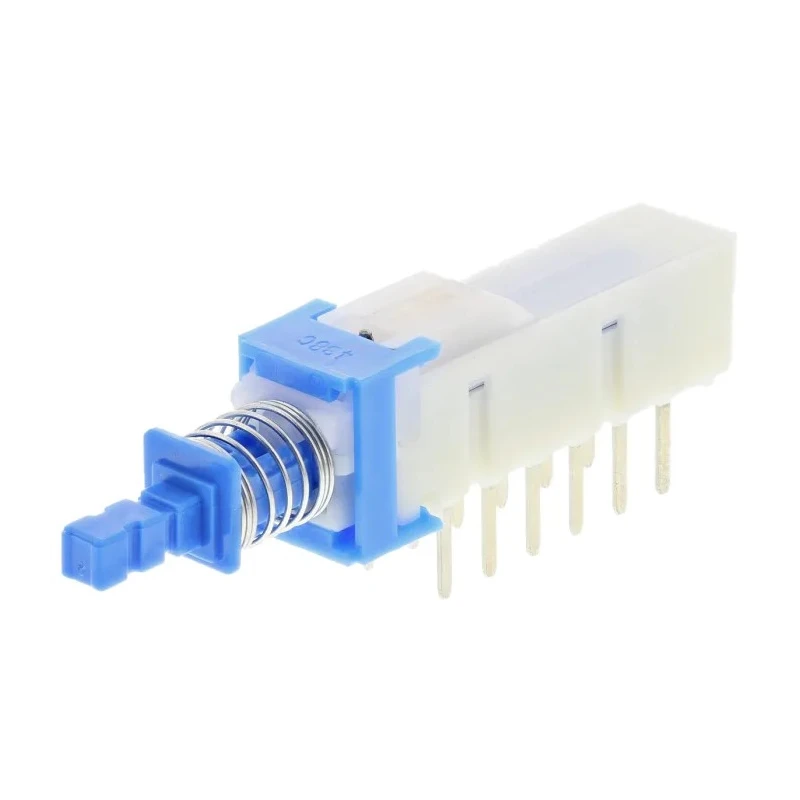

Alps Alpine SPUN Series Push Button Switch, Latching, PCB Mount, 4PDT, Through Hole Terminals SPUN194700

Alps Alpine SPUN194700 is a professional grade push button switch with latching action, designed for through-hole PCB mounting. Part of the SPUN series, this switch provides a 4PDT contact configuration and a reliable switching current rating of 100mA at 30 V DC. It operates reliably within a temperature range of -40°C to 85°C, making it suitable for various industrial, electrical, and automation applications.

The switch's non-illuminated push button design features through-hole terminals for secure PCB mounting. Its robust build quality and compliance with RoHS standards ensure environmentally friendly manufacturing without compromising performance.

The SPUN series distinguishes itself with a 2.5 mm switch travel and a compact form factor measuring 54 mm overall depth, 13 mm height, and 10 mm width for 4 pole configurations. This configuration allows switching multiple circuits simultaneously, making it ideal for complex signal switching and control tasks in electronic devices.

Typically, this latching push button switch is used in industrial control panels, instrumentation, consumer electronics, and machinery where reliable user input toggling is required. Being manufactured in Japan, the product meets high standards of precision and durability.

This push button switch features a latching operation suitable for self-lock functions. It has a 4PDT contact configuration enabling multiple switching paths. Mount type is through hole for reliable PCB soldering. Operating temperature ranges from -40°C to 85°C for broad environmental tolerance.

This switch supports a switch contact current of 100mA at 30 V DC. The switch is non-illuminated with a robust design from the SPUN series. Manufactured in Japan adhering to RoHS compliance standards. Designed for use in electronics, automation, and signal switching applications.

Dimensions are approximately 54mm depth, 13mm height, and 10mm width for 4 pole configuration. Explore the range of Push Button Switches available from Alps Alpine at EnvMart for industrial and commercial electronics projects.
