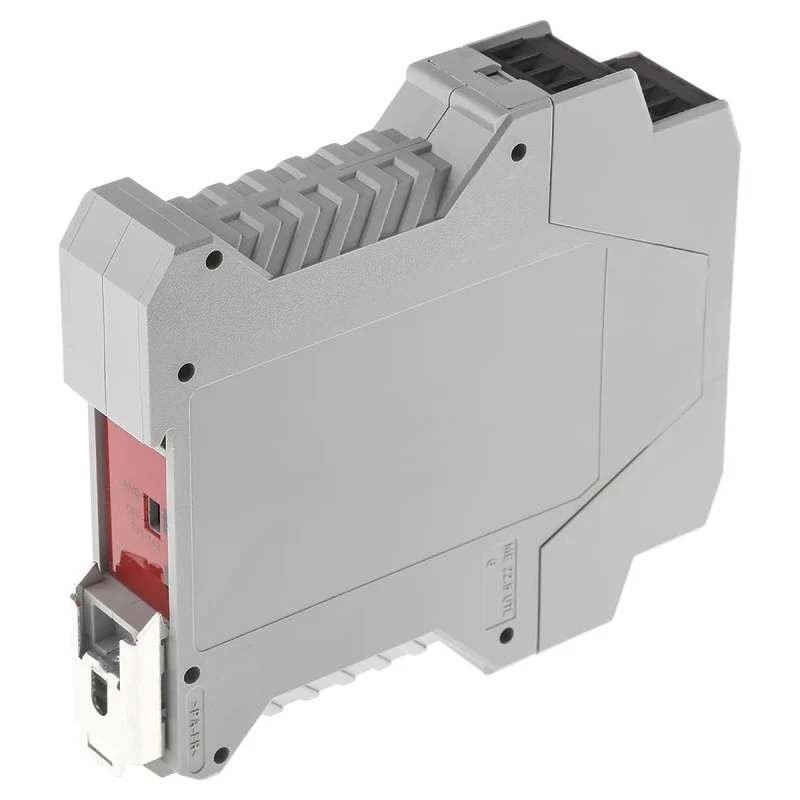

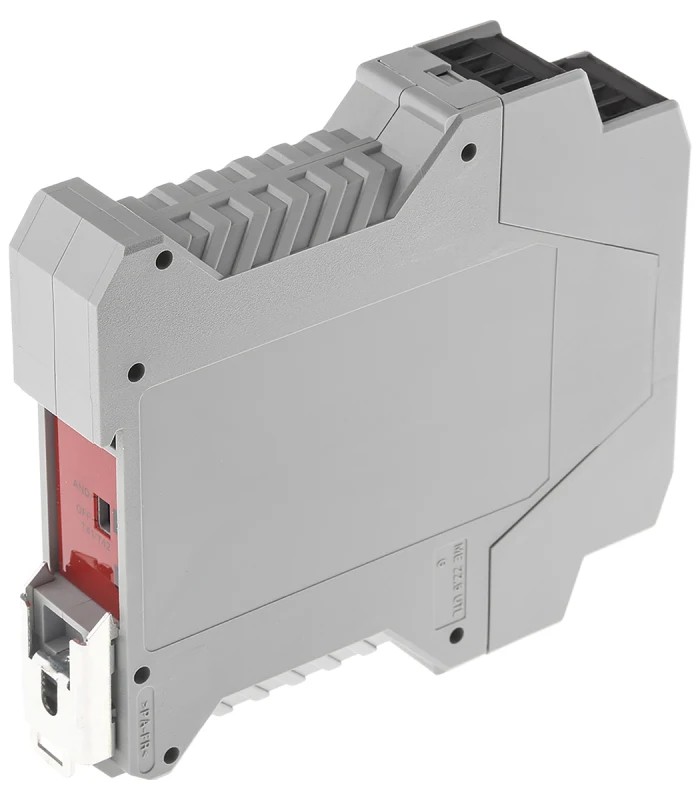

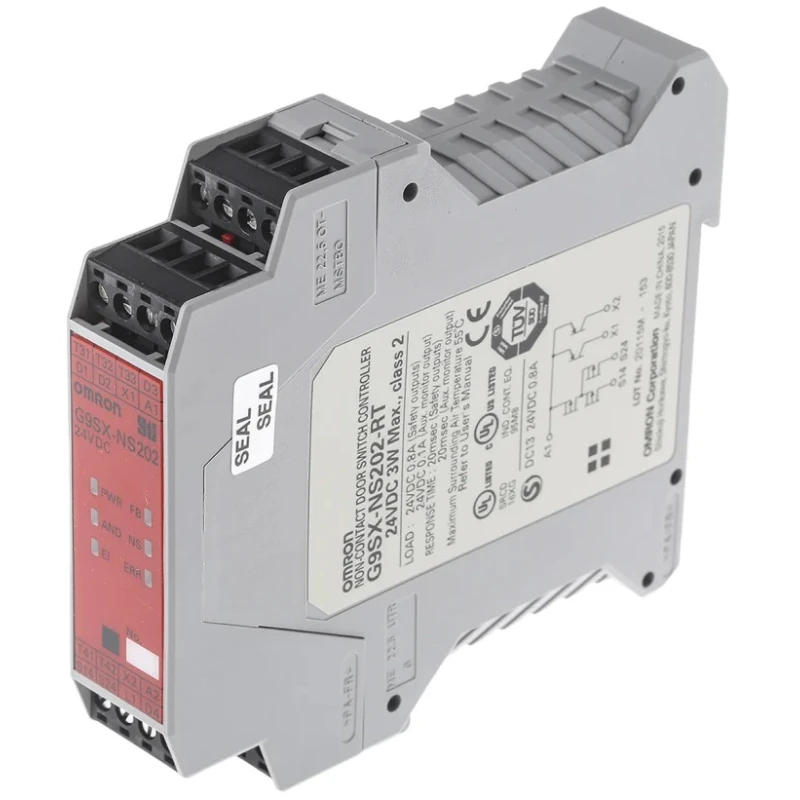

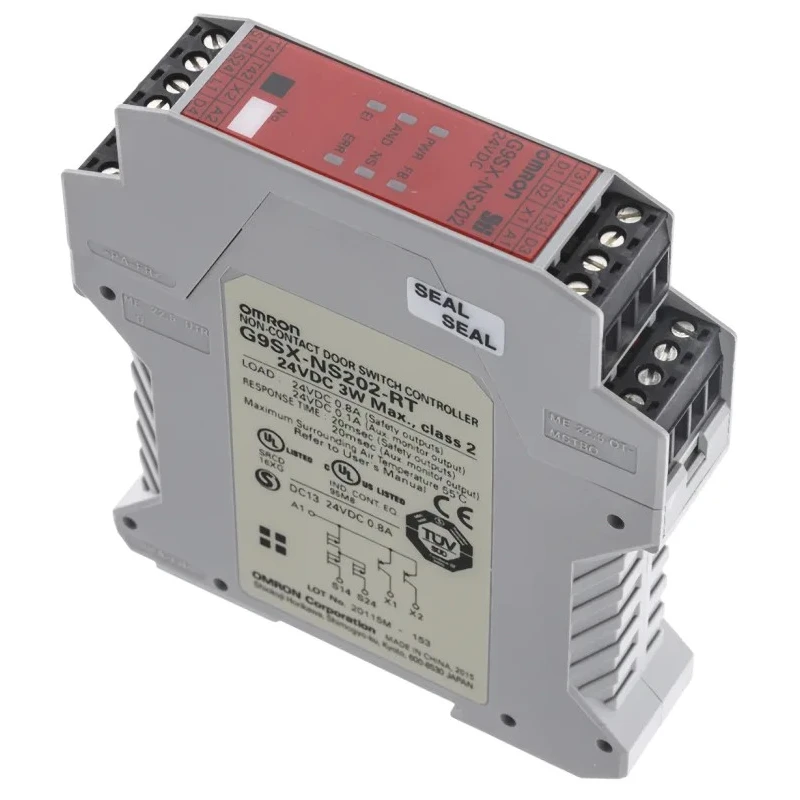

Omron 24V DC Safety Relay with 2 Safety Contacts, 2 Auxiliary Contacts, DPST Configuration G9SX-NS
Specifications
| Country of Origin | China |
|---|---|
| Power Consumption | 3W |
| Brand | Omron |
| Height | 115mm |
| Length | 100mm |
| Model | G9SX-NS |
| Width | 23mm |
| Mount Type | Surface |
| Series | G9SX-NS |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | DPST |
| Time Delay | 3 s |
| Minimum Operating Temperature | -10°C |
| Safety Category | 4 |
| Terminal type | Screw |
| Standards/Approvals | EN 50178 |
| Reset Method | Automatic & Manual |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 24V dc |
| Switching AC Voltage | 24V ac |
| Contact Current | 0.8A |
| Safety Contacts | 2 |
| Number of Auxiliary Contacts | 2 |
| Omron G9SR Series Input/Output Module, 2 Inputs, 2 Outputs, 24V dc, 3PST-NOBrand | Omron |
| Omron NX Series Safety Controller, 0 Safety InputsBrand | Omron |
| Omron G9SR, 24V dc Safety Relay, 2 Safety Contacts, 1Brand | Omron |
Key Features
- Equipped with automatic and manual reset methods for versatile operation.
- Surface mount design with screw terminal for secure wiring connections.
- Complies with EN 50178 standard and ISO 13849-1 Safety Category 3 for high safety assurance.
- Low power consumption of 3W ensures energy efficiency.
- Operates reliably between temperatures of -10°C to 55°C ensuring performance across varied environments.
- Compact dimensions of 100mm length, 23mm width, and 115mm height optimize panel space.
- Supports switching AC voltage at 24V ac and DC voltage at 24V dc.
- Contact current rating of 0.8A suitable for safety circuit signaling.
Product Description
Omron G9SX-NS model G9SX-NS202-RT DC24 is a 24V DC safety relay designed for industrial automation and machinery safety applications. It provides 2 safety contacts and 2 auxiliary contacts configured as DPST to effectively manage safety interlocks and access control mechanisms. The relay supports both automatic and manual reset methods, allowing for flexible recovery after fault conditions.
This safety relay complies with EN 50178 standards and meets ISO 13849-1 Safety Category 3, providing a robust safety solution that adheres to international safety requirements. Its low power consumption rating of 3W makes it energy efficient and reliable for continuous operation. The device features a compact design with dimensions that optimize control panel space, measuring 100mm in length, 23mm in width, and 115mm in height.
Designed for use with screw terminal connections, the relay ensures secure and reliable wiring for safety devices. It operates optimally within an ambient temperature range from -10°C to 55°C, making it suitable for a variety of industrial environments. With a contact current of 0.8A and switching voltages of 24V AC and DC, it fits well into safety switching circuits requiring dependable performance.
Typical applications include safety interlock systems on machinery, controlling access points with safety switches, and integration within automated manufacturing processes to enhance workplace safety. The G9SX-NS series is ideal for industries requiring high safety standards in electrical control equipment and automation.
Equipped with 2 safety contacts and 2 auxiliary contacts for versatile safety configurations. Automatic and manual reset capabilities allow prompt and safe system recovery after faults. Compliance with EN 50178 and ISO 13849-1 Safety Category 3 ensures trusted safety performance.
Compact surface mount design with screw terminal facilitates easy installation and maintenance. Low power consumption of 3W supports efficient energy usage. Operates reliably between -10°C and 55°C for broad applicability.
Contact current rating of 0.8A supports effective circuit control. Dimensions optimized for space-saving in control panels. Ideal for safety interlock and automation applications in industrial and manufacturing environments.
Explore more products in the Safety Relay category at EnvMart for comprehensive industrial automation safety solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The G9SX-NS safety relay features a DPST (Double Pole Single Throw) contact configuration, providing 2 safety contacts and 2 auxiliary contacts.
It operates reliably within a temperature range of -10°C to 55°C, making it suitable for various industrial environments.
This safety relay has a low power consumption rating of 3W, supporting energy-efficient operation.
The dimensions of this model are 100mm in length, 23mm in width, and 115mm in height, which optimizes panel space.
It supports both automatic and manual reset methods, allowing for flexible recovery after fault conditions.
The contact current rating is 0.8A, suitable for safety circuit signaling.
It can switch both AC voltage at 24V and DC voltage at 24V, making it versatile for various applications.
The G9SX-NS is designed for surface mounting, which facilitates secure installation.
It complies with EN 50178 and meets ISO 13849-1 Safety Category 4, ensuring high safety assurance.
The relay features screw terminals for secure and reliable wiring connections.
Typical applications include safety interlock systems on machinery and controlling access points with safety switches.
The time delay for this model is 3 seconds, which can be important for certain applications.
