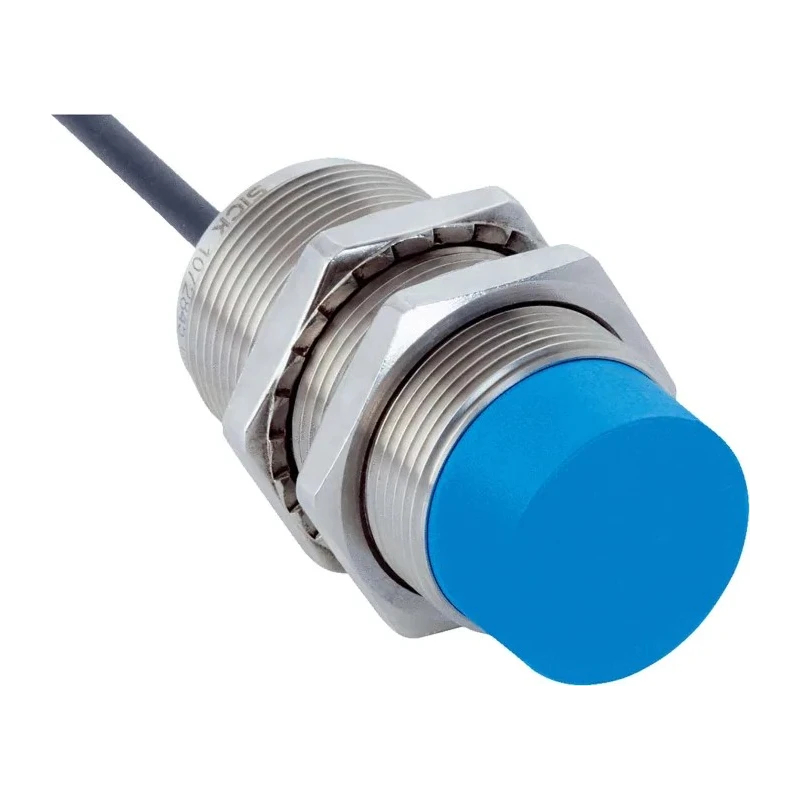

SICK Threaded Barrel Inductive Proximity Sensor M30 x 1.5 PNP Stainless Steel 30 V DC 200 mA IMB30-20NPPVU6S
Specifications
| Country of Origin | Hungary |
|---|---|
| Brand | SICK |
| Temperature range | - 40 °C to +100 °C |
| Length | 60mm |
| Model | IMB30-20NPPVU6S |
| IP Rating | IP68, IP69K |
| Width | 30mm |
| Mount Type | Non-Flush |
| Housing Material | Stainless Steel |
| Types | M8 to M30 |
| Output type | PNP |
| Series | IMB |
| Maximum Operating Temperature | 100°C |
| Thread Size | M30 x 1.5 |
| Enclosure Rating | IP 68, IP 69K |
| Minimum Operating Temperature | -40°C |
| Interfaces | lance |
| Switching Current | 200mA |
| Terminal type | Cable |
| Body Style | Threaded Barrel |
| Maximum dc Voltage | 30V dc |
| Shielding | Unshielded |
| Maximum Switching Frequency | 500Hz |
| Maximum Supply Voltage | 30V |
| Materials Detected | Plastic |
| Maximum Detection | 20mm |
| Extended sensing ranges | 2 mm to 20 mm |
| Electrical configuration | DC 3-/4-wire, DC 2-wire |
| Standards/ApprovalsEN 60529, EN 60947-5-2, ISO 20653 | 2013-03 |
Key Features
- The sensor features a rugged stainless steel housing with a plastic sensing face for enhanced durability.
- It supports PNP output type with a switching frequency up to 500 Hz.
- The device is designed for non-flush mounting and includes a cable terminal type for connection.
- Rated for IP68 and IP69K protection, it is resistant to oils and cooling lubricants.
- Operating temperature range spans from -40°C to +100°C for versatile industrial applications.
- Extended sensing ranges provide stable, precise detection enabled by SICK ASIC technology.
- Equipped with an optical adjustment indicator and self-locking nuts for easy installation and error reduction.
- Communication via IO-Link allows flexible and advanced automation integration.
Product Description
SICK IMB30-20NPPVU6S Threaded Barrel Inductive Proximity Sensor offers reliable and precise sensing with an M30 x 1.5 threaded barrel design, stainless steel housing, and a plastic sensing face. It operates at 30 V DC with a maximum switching current of 200 mA and a detection range of up to 20 mm. Designed for non-flush mounting and protected by IP68 and IP69K enclosure ratings, this sensor withstands harsh conditions including exposure to oils and cooling lubricants. It supports PNP output and switching frequencies up to 500 Hz.
The sensor's operating temperature range of -40°C to +100°C makes it ideal for diverse industrial, automation, and control gear applications. Utilizing SICK's advanced ASIC technology, it achieves extended and highly precise sensing distances, enhancing process stability and reducing machine downtime. The optical adjustment indicator and self-locking nuts facilitate quick, error-free installation, while IO-Link compatibility offers expanded communication and customization options.
This Proximity Sensor is well suited for applications including speed measurement, material transport monitoring, valve piston position detection, roll-down gate monitoring, elevator door leaf detection, automatic sliding door position determination, speed monitoring in escalators, and other industrial automation tasks requiring robust and accurate object detection.
The sensor’s robust construction ensures long service life even in demanding environments. Its extended sensing range helps reduce the number of sensor variants required, simplifying product selection and inventory management.
Self-locking nuts and optical adjustment indicator enable easy setup and maintenance. IO-Link interface increases flexibility and supports customer-specific variants. High degree of protection and resistance to contaminants guarantees reliable outdoor and industrial operation.
Choose the SICK IMB30-20NPPVU6S sensor for dependable proximity sensing ensuring productivity and process reliability across automation, manufacturing, and material handling industries. Explore EnvMart's broad range of sensors and industrial components for comprehensive solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum detection range of the SICK IMB30-20NPPVU6S sensor is 20 mm.
This model operates within a temperature range of -40°C to +100°C.
It supports a PNP output type.
The sensor has a length of 60 mm and a width of 30 mm.
The maximum switching frequency is 500 Hz.
It has an IP68 and IP69K rating, making it suitable for harsh environments.
This sensor is designed for non-flush mounting.
It can detect plastic materials.
The maximum switching current is 200 mA.
It utilizes a cable terminal type for connection.
It complies with EN 60529, EN 60947-5-2, and ISO 20653 standards.
The housing is made of stainless steel, providing durability in harsh conditions.
