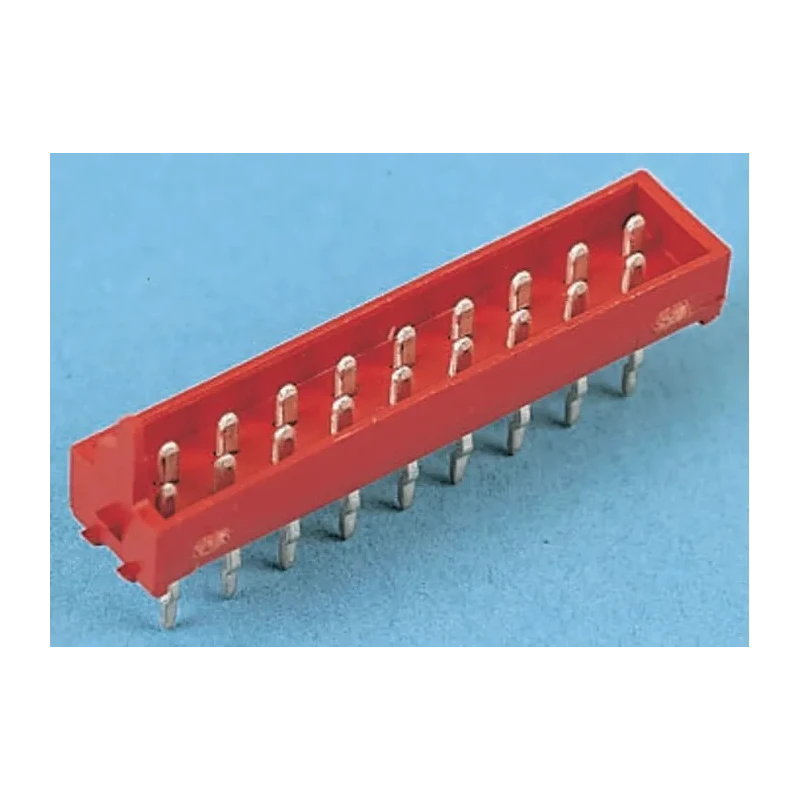

TE Connectivity Micro-MaTch Series Straight Through Hole PCB Header 16 Contacts 1.27 mm Pitch 2 Row Shrouded 8-215464-6
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 230V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 1.5A |
| Mount Type | Through Hole |
| Housing Material | Fibreglass Reinforced Polybutylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Series | Micro-MaTch |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 1.27mm |
| Contact Plating | Tin |
| Number of Contacts | 16 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board |
| Tail Pin Length | 3.1mm |
Key Features
- Compact Micro-MaTch design suitable for space-saving applications.
- 16 male contacts with 1.27 mm pitch arranged in 2 rows.
- Fibreglass reinforced Polybutylene Terephthalate housing material ensures durability.
- Shrouded design for secure board-to-board connection.
- Phosphor Bronze contacts with tin plating for excellent conductivity.
- Kinked legs provide secure retention to PCB during assembly.
- Solder termination type with 3.1 mm tail pin length.
- Operating temperature range from -40°C to 105°C.
Product Description
TE Connectivity 8-215464-6 is a Micro-MaTch Series Straight Through Hole PCB Header designed with 16 male contacts in 2 rows, spaced at a 1.27 mm pitch. It is engineered for robust board-to-board connections with a shrouded connector system that ensures precise mating and protection.
This PCB header uses a fiberglass reinforced Polybutylene Terephthalate housing that offers mechanical stability and resistance to harsh environments. The contacts are made of phosphor bronze and fully tin plated to prevent corrosion and provide reliable electrical conductivity.
The connector features kinked legs for secure retention on the PCB, minimizing the risk of loosening during vibration or handling. Suitable for solder termination, the tail pins have a length of 3.1 mm for ease of assembly.
Its operating temperature range from -40°C to 105°C and current rating of 1.5A at 230V make it ideal for various industrial and electronic applications requiring durable and compact connectors.
Typical applications include production and material handling equipment, robotics, control units, automotive electronics such as car radios and dashboard systems, navigation systems, base stations, audio equipment, and set-top boxes. These connectors ensure gas-tight, fretting corrosion resistant connections, enhancing operational reliability even under vibration and thermal cycling.
Compact Micro-MaTch design for space saving. 16 contacts at 1.27 mm pitch in 2 rows. Fibreglass reinforced housing for durability. Shrouded connector system for secure mating. Phosphor bronze tin plated contacts ensure reliability.
Kinked legs for secure PCB retention. Solder termination with 3.1 mm tail pin. Operating range -40°C to 105°C. Rated 1.5A current and 230V voltage. Manufactured in Germany.
This product exemplifies TE Connectivity's commitment to robust and compact PCB connectors for demanding industrial, commercial, and electronics manufacturing sectors. Browse more PCB Headers and connectors on EnvMart for comprehensive sourcing options.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contacts in this PCB header are arranged with a pitch of 1.27 mm.
This model has a maximum operating temperature of 105°C.
It features 16 male contacts arranged in 2 rows.
It uses a solder termination type.
The current rating is 1.5A at 230V.
The housing is made of fiberglass reinforced Polybutylene Terephthalate.
The tail pin length is 3.1 mm.
This connector is shrouded, providing secure mating.
This product is manufactured in Germany.
It supports board-to-board connections, ensuring precise mating and protection.
The minimum operating temperature is -40°C.
The contacts are made of phosphor bronze and fully tin plated to prevent corrosion.
