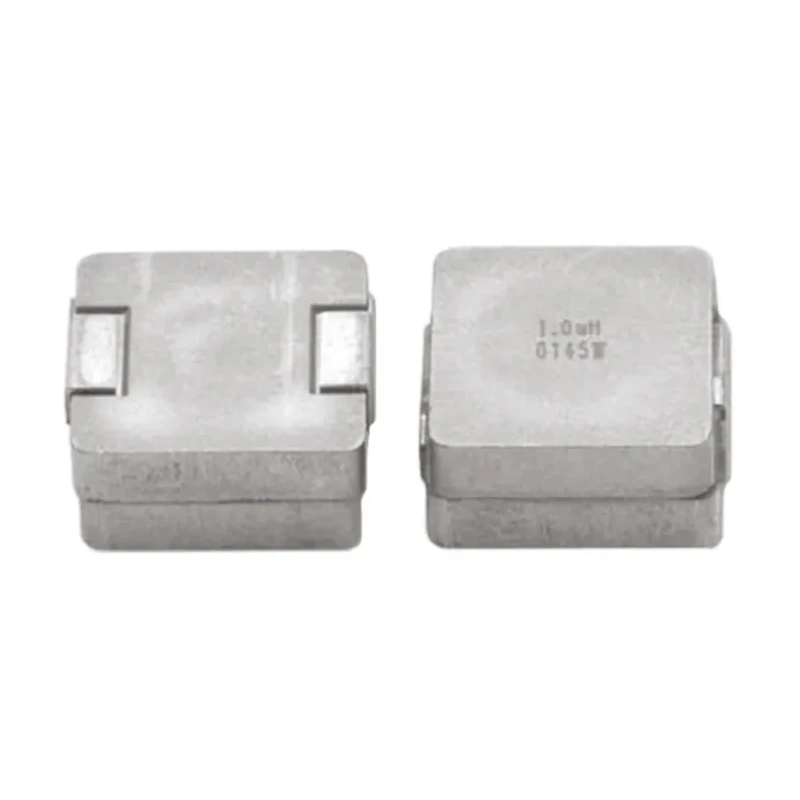

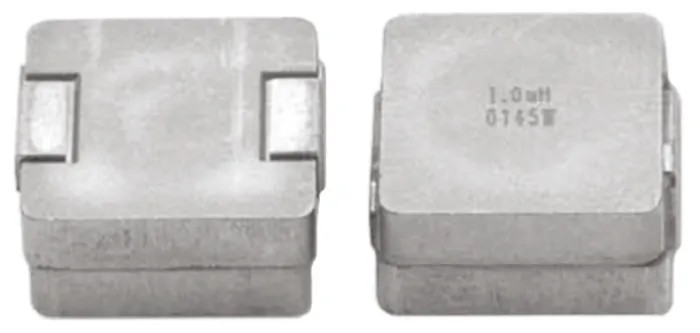

Vishay 5050 Shielded Surface Mount Inductor with Metal Composite Core 1 μH ±20 %, 32 A IDC IHLP5050FDER1R0M01
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 6.5mm |
| Length | 13.2mm |
| Model | IHLP5050FDER1R0M01 |
| Depth | 12.9mm |
| Packaging | Reel |
| Series | IHLP-5050FD-01 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Metal Composite |
| Inductance | 1μH |
| Standards/Approvals | RoHS |
| Package/Case | 5050 |
| Maximum DC Current | 32A |
| Maximum DC Resistance | 2mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 5MHz |
| Inductor Construction | Shielded |
Key Features
- The inductor features a 5050 package size with a length of 13.2 mm, height of 6.5 mm, and depth of 12.9 mm.
- Constructed with shielded magnetically bonded wire wound design to minimize electromagnetic interference.
- Maximum DC resistance is low at 2 mΩ ensuring efficient performance.
- Suitable for operating temperature range from -55°C to 125°C with RoHS compliance.
- Designed for high current applications such as POL converters, DC/DC converters, and battery-powered devices.
- Includes reel packaging for optimized assembly line insertion.
- Has a maximum self-resonant frequency of 5 MHz supporting high frequency operations.
Product Description
Vishay IHLP5050FDER1R0M01 is a 5050 shielded surface mount inductor featuring a metal composite core with 1 μH inductance and ±20 % tolerance, designed to handle a maximum DC current of 32 A. This inductor offers low DC resistance of 2 mΩ and a maximum operating temperature of 125°C, suitable for demanding industrial and electronic power applications.
The IHLP-5050FD-01 series magnetically shielded wire wound chokes provide excellent transient current handling without saturation and exhibit ultra-low buzz noise due to their composite construction. The package size of 5050 with dimensions of 13.2 mm length, 6.5 mm height, and 12.9 mm depth ensures compatibility with surface mount assembly processes.
This inductor is molded and shielded, meeting RoHS standards, and offers a maximum self-resonant frequency of 5 MHz, making it ideal for high frequency DC/DC converters, power supply circuits, and FPGA applications. Applications include PDA, notebook, desktop, server devices, high current POL converters, low profile power supplies, battery-powered devices, and distributed power systems.
Packaged on reel, it enables efficient insertion into manufacturing lines increasing production efficiency. The metal composite core and shielded construction minimize electromagnetic interference, enhancing signal integrity and device reliability.
The inductor features a 5050 package size with a length of 13.2 mm, height of 6.5 mm, and depth of 12.9 mm. Low maximum DC resistance of 2 mΩ ensures minimal power loss. Wide operating temperature range from -55°C to 125°C supports harsh environments.
Max DC current is 32 A, suitable for high current applications. RoHS compliant and molded, safe for industrial and commercial use. Maximum self-resonant frequency of 5 MHz supports high frequency circuits. Ideal for DC/DC converters, POL converters, and battery powered electronics.
Explore more high quality electronic components in the Surface Mount Inductors category at EnvMart for reliable industrial and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 1 μH with a tolerance of ±20%.
It can handle a maximum DC current of 32 A, making it suitable for high current applications.
The dimensions of the 5050 package are 13.2 mm in length, 6.5 mm in height, and 12.9 mm in depth.
The maximum operating temperature is 125°C, allowing it to function in demanding environments.
It features a shielded magnetically bonded wire wound design, which minimizes electromagnetic interference.
The maximum self-resonant frequency is 5 MHz, supporting high frequency operations.
The maximum DC resistance is low at 2 mΩ, ensuring efficient performance.
Yes, it is RoHS compliant, making it suitable for industrial and commercial use.
It is packaged on a reel, which optimizes assembly line insertion.
It is designed for high current applications such as POL converters, DC/DC converters, and battery-powered devices.
The core material is a metal composite, which enhances performance and reliability.
This inductor uses a surface mount termination style, suitable for various electronic applications.
