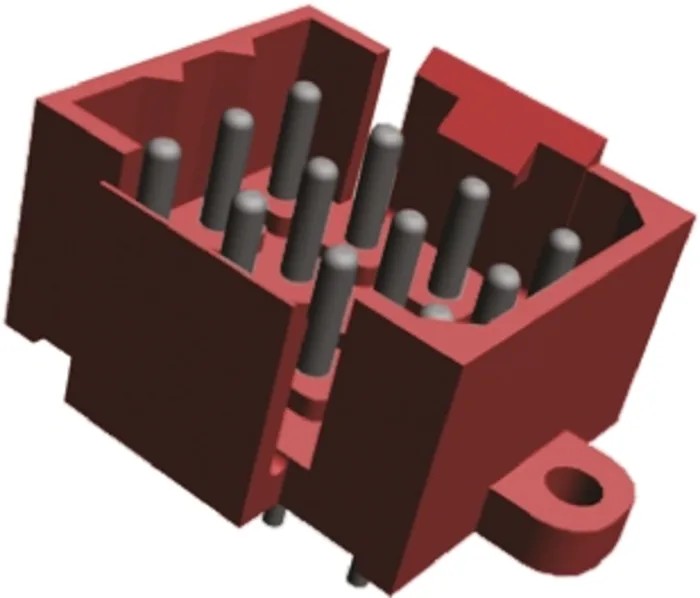

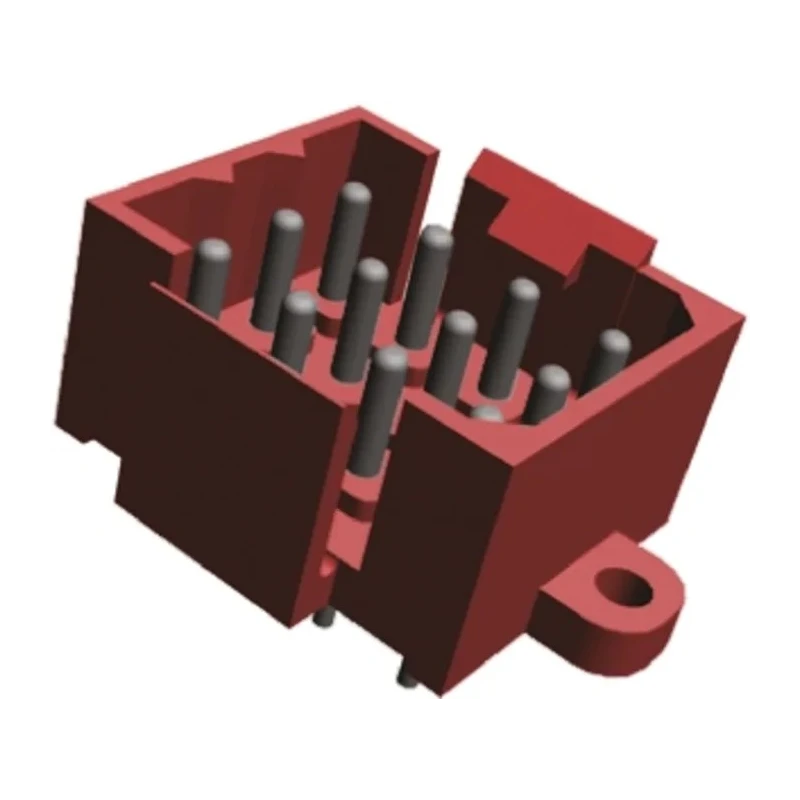

TE Connectivity Metrimate Series Straight Through Hole PCB Header 12 Contacts 5 mm Pitch 4 Row Shrouded 207120-9
Specifications
| Country of Origin | Mexico |
|---|---|
| Voltage | 600V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 14A |
| Model | 207120-9 |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Series | Metrimate |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | 0°C |
| Number of Rows | 4 |
| Pitch | 5mm |
| Contact Plating | Tin |
| Number of Contacts | 12 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Designed for wire-to-board connector systems with through hole mount type.
- Constructed with thermoplastic housing and copper alloy contacts plated with tin.
- Operates reliably between 0°C and 105°C temperature range.
- Rated for 14A current and 600V voltage for robust electrical performance.
- Offers male contact gender and a 5 mm row pitch for precise PCB alignment.
- Shrouded connector enhances protection and retains contacts securely.
- Manufactured in Mexico with durable materials for industrial use.
- Meets 94V-0 fire rating standards ensuring safety in electronic applications.
Product Description
TE Connectivity 207120-9 Metrimate Series Straight Through Hole PCB Header is a 12 contact, 5 mm pitch, 4 row, shrouded connector designed for precise and reliable wire-to-board connections in industrial and electronic applications.
The connector features a thermoplastic housing rated at 94V-0, ensuring excellent flame retardance for safety in demanding conditions. Contacts are made from copper alloy with tin plating, providing strong electrical conductivity and corrosion resistance.
This PCB Header supports a current rating of 14A and a voltage rating of 600V, suitable for a range of electronic devices and power connectors. Its through hole mount type and straight orientation facilitate easy PCB integration and mechanical stability.
The connector is shrouded to protect the contacts and prevent accidental short circuits or damage. Operating temperature ranges from 0°C to 105°C, making it suitable for various industrial, manufacturing, and electronics assembly environments.
Designed for wire-to-board connector systems with through hole mount type. Thermoplastic housing rated 94V-0 for flame retardance. Copper alloy contacts plated with tin for durability and conductivity. Rated current of 14A and voltage of 600V for industrial reliability.
Shrouded design offers protection and secure connections. Operating temperature range from 0°C to 105°C. Manufactured in Mexico, meeting high quality standards. Ideal for industrial, electronics manufacturing, and PCB assembly applications.
Explore more electronics connectors and components with EnvMart for professional and industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current of 14A and a voltage of 600V, making it suitable for various electronic devices and power connectors.
It operates reliably within a temperature range of 0°C to 105°C, suitable for various industrial and electronic applications.
This connector features a pitch of 5 mm and has 12 contacts, designed for precise PCB alignment.
It is constructed with a thermoplastic housing and copper alloy contacts plated with tin, providing strong electrical conductivity and corrosion resistance.
Yes, it is a shrouded connector, which enhances protection for the contacts and prevents accidental short circuits or damage.
This model uses a through hole mount type, facilitating easy integration into PCBs and providing mechanical stability.
The connector has a straight orientation, which is standard for many PCB applications.
This model features male contact gender, suitable for wire-to-board connections.
It is manufactured in Mexico, adhering to high quality standards for industrial use.
The thermoplastic housing is rated at 94V-0, ensuring excellent flame retardance for safety in demanding conditions.
The termination type for this model is solder, which is common for PCB connections.
It is designed for wire-to-board connector systems, suitable for industrial, electronics manufacturing, and PCB assembly applications.
