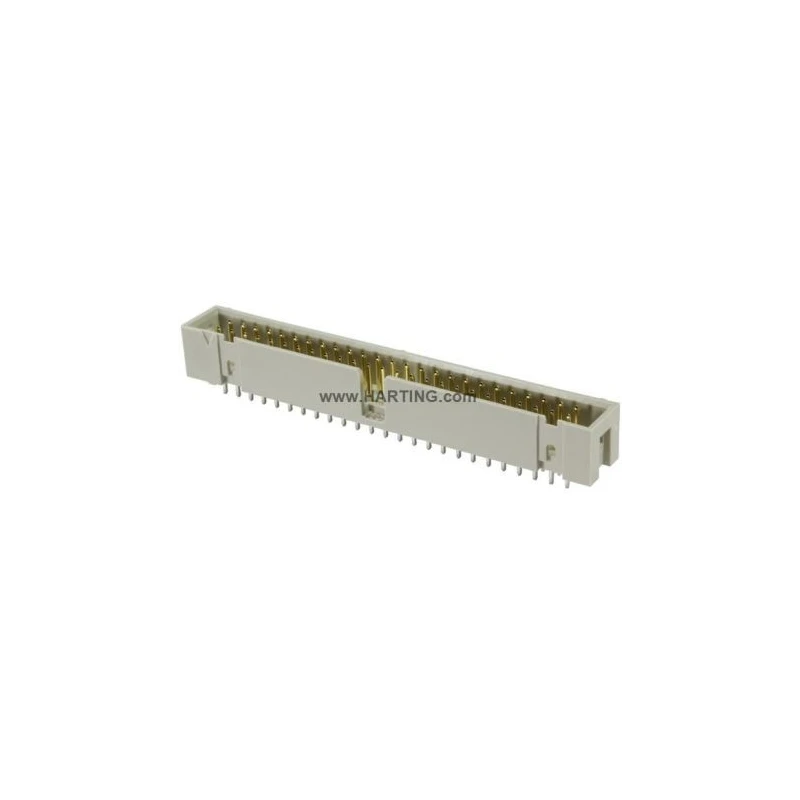

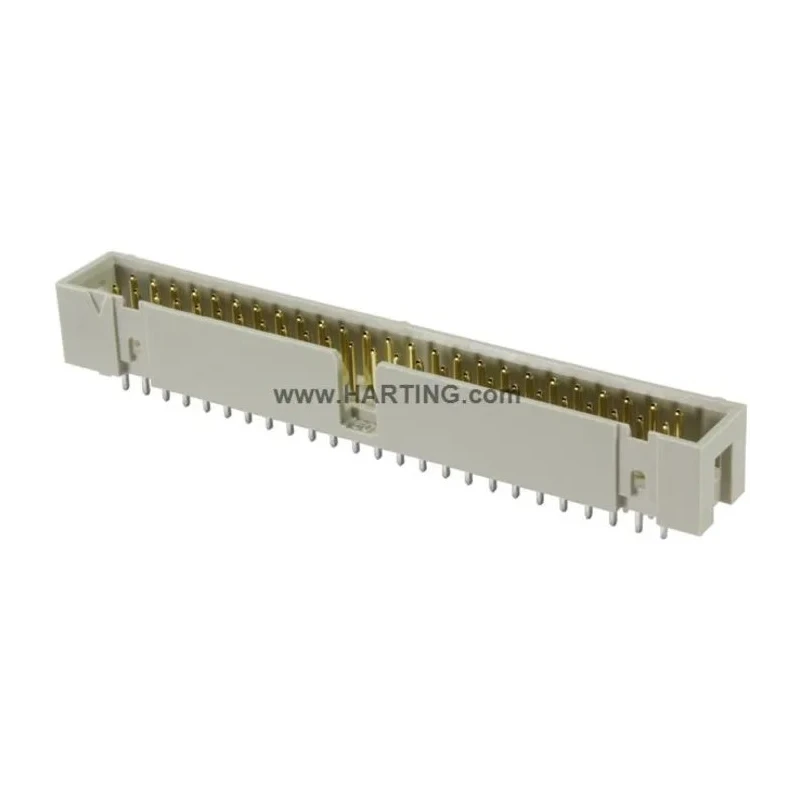

HARTING SEK 18 Series Straight Through Hole PCB Header, 34 Contacts, 2.54 mm Pitch, 2 Row, Shrouded 09185347324
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 500V |
| Brand | HARTING |
| Orientation | Straight |
| Current | 1A |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Copper Alloy |
| Series | SEK 18 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 740-7146Brand: HARTINGManufacturers Part No.: 09185347324 |
| Contact Plating | Gold |
| Number of Contacts | 34 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Features a shrouded design for enhanced protection and durability.
- Constructed with polybutylene terephthalate housing for robust performance.
- Contacts made of copper alloy with gold plating ensure reliable connections.
- Rated to carry 1A current at a maximum voltage of 500V.
- Designed for through-hole mounting, suitable for wire-to-board connector systems.
- Operates efficiently between -55°C and 125°C temperature range.
- Termination is solder type with male contact gender.
- Complies with IEC 60 603-13 standards, ensuring quality and safety.
Product Description
HARTING 09185347324 PCB Header, part of the SEK 18 Series, offers a straight through-hole mounting with 34 contacts arranged in 2 rows and a 2.54 mm pitch. This shrouded connector provides excellent electrical performance and mechanical reliability suitable for a wide range of electronic and industrial applications.
The housing is made from polybutylene terephthalate, providing robust insulation and durability. Contacts consist of copper alloy with gold plating to ensure high conductivity and corrosion resistance, suitable for demanding environments.
This PCB header is rated for 1A current and withstands voltages up to 500V. It operates effectively over a broad temperature range from -55°C to 125°C, making it suitable for various industrial, electronic component assemblies, and manufacturing uses.
Designed specifically for wire-to-board connector systems, it features solder termination and a male contact gender, facilitating easy and secure connections to printed circuit boards.
The product complies with IEC 60 603-13 standards ensuring reliability and performance in industrial and power connector applications. Shrouded design protects contacts from damage and misalignment. Polybutylene terephthalate housing offers thermal and mechanical strength.
Copper alloy contact material with gold plating ensures excellent electrical contact. Supports 1A current and 500V voltage for reliable power transmission. Suitable for through-hole mounting in wire-to-board configurations.
Wide operating temperature range (-55°C to 125°C) enables versatile usage. Standard compliant to IEC 60 603-13 for industrial-grade performance.
This HARTING PCB header is ideal for electronics manufacturing, power connector applications, and PCB assembly in industrial, laboratory, and commercial electronic equipment sectors. EnvMart offers this high-quality connector for customers seeking reliable and durable PCB header solutions.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB header is rated to carry a current of 1A.
It can withstand a maximum voltage of 500V.
It operates efficiently between -55°C and 125°C.
This model features 34 contacts arranged in 2 rows.
The housing is made from polybutylene terephthalate, and the contacts are constructed from copper alloy with gold plating.
It features a solder termination type with male contact gender.
Yes, it is specifically designed for through-hole mounting in wire-to-board connector systems.
The pitch of the contacts is 2.54 mm.
Yes, it complies with IEC 60 603-13 standards, ensuring quality and safety.
The orientation of this model is straight.
The country of origin for this PCB header is India.
It supports a wire-to-board connector system.
