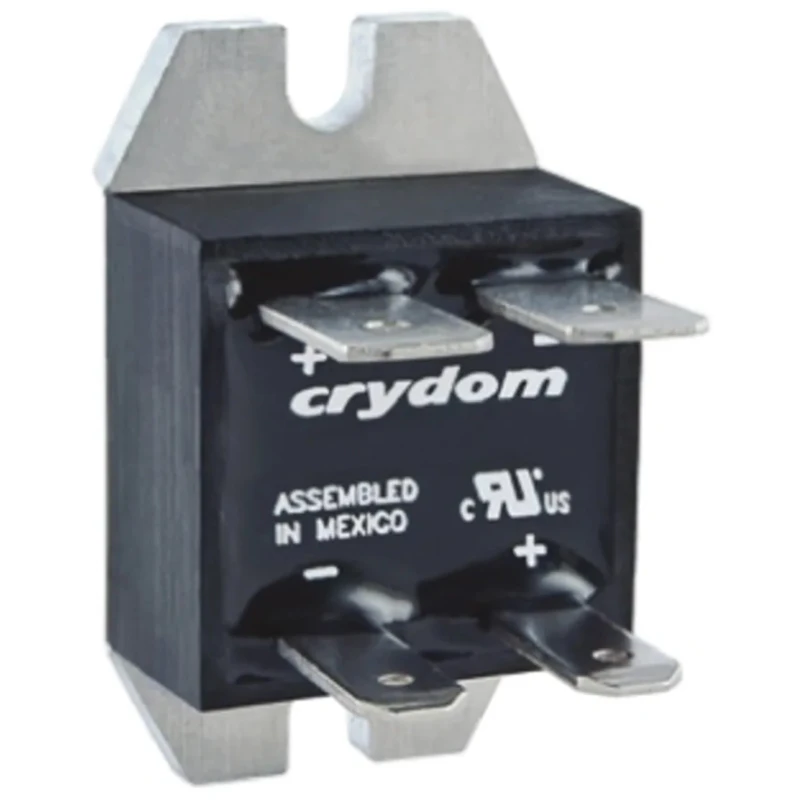

Crydom EL Series Solid State Relay 5A 100V dc Load Panel Mount EL100D5-24
Specifications
| Country of Origin | India |
|---|---|
| Brand | Crydom |
| Operating Temperature | -30 → +80 °C |
| Height | 14.3mm |
| Length | 35.6mm |
| Model | EL100D5-24 |
| IP Rating | IP00 |
| Width | 21.1mm |
| Mount Type | Panel |
| Output type | MOSFET |
| Series | EL |
| Maximum Operating Temperature | 80°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -30°C |
| Terminal type | Quick Connect |
| Switching Function | DC Switching |
| Maximum Load Current | 5A |
| Standards/Approvals | RoHS, UL, CE, IEC Rated |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 740-6632Brand: CrydomManufacturers Part No.: EL100D5-24 |
| Maximum Load Voltage | 100V dc |
| Minimum Load Voltage | 3V dc |
| Minimum Control Voltage | 21V dc |
| Maximum Control Voltage | 27V dc |
| Off State Leakage Current | 100μA dc |
Key Features
- Compact panel mounting solid state relay with SPST contact configuration.
- Supports DC switching with MOSFET output type for efficient performance.
- Operates under a temperature range from -30°C to +80°C.
- Features quick connect spade terminals for easy wiring.
- Compliant with RoHS, UL, CE, and IEC standards ensuring reliable safety and quality.
- Low off-state leakage current of 100μA dc for energy efficiency.
- Suitable for industrial and automation electrical control systems.
Product Description
Crydom EL100D5-24 EL Series Solid State Relay is a high-performance electrical component designed to handle loads up to 5 amperes with a maximum load voltage of 100 volts DC. It is engineered for panel mounting, featuring a compact form factor of 35.6mm length, 21.1mm width, and 14.3mm height. The relay utilizes a MOSFET output type to enable smooth DC switching operations.
This relay is built to operate reliably within a wide temperature range from -30°C up to +80°C, making it suitable for diverse industrial environments. Its quick connect spade terminals simplify installation and maintenance processes. The product complies with international safety and environmental standards including RoHS, UL, CE, and IEC, guaranteeing both quality and sustainability.
The EL Series solid state relay supports control voltages of 21V to 27V DC and has a contact configuration of SPST, which is ideal for switching tasks in electrical automation, industrial machinery, and control panel applications. Its minimal off-state leakage current of 100μA DC contributes to energy saving and reduces heat dissipation.
Compact panel mounting design for space-saving installation. Supports 5A load current at up to 100V DC load voltage. Operates in temperature environments ranging from -30°C to +80°C. Utilizes MOSFET output type for efficient DC switching.
Quick connect spade terminals ensure easy installation. Meets RoHS, UL, CE, and IEC standards for safety and quality. Low off-state leakage current of 100μA DC enhances energy efficiency.
This Crydom solid state relay is widely used in industrial automation, control systems, panel assemblies, and electronic equipment requiring reliable and maintenance-free switching solutions. It is an ideal component for electrical engineers and system integrators seeking quality and durability in Solid State Relay applications.
Explore the Crydom product range to find compatible relays and other electrical components suitable for your automation and control requirements on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this model is 5A.
It operates within a temperature range from -30°C to +80°C.
This relay utilizes a MOSFET output type for efficient DC switching.
The contact configuration is SPST (Single Pole Single Throw).
The dimensions are 35.6mm in length, 21.1mm in width, and 14.3mm in height.
The minimum control voltage is 21V DC, and the maximum is 27V DC.
It complies with RoHS, UL, CE, and IEC standards.
The off-state leakage current is 100μA DC.
This model is designed for panel mounting.
It features quick connect spade terminals for easy wiring.
The maximum load voltage is 100V DC.
It is suitable for industrial automation, control systems, and panel assemblies.
