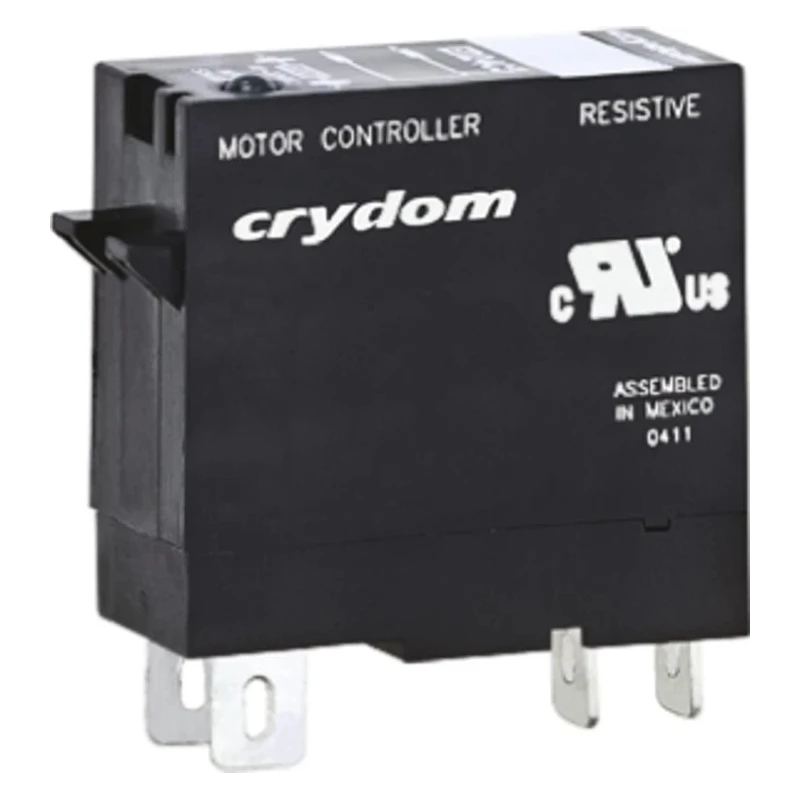

Crydom ED Series Solid State Relay DC Switching, 5 A Load, 80 V dc Load, 36 V ac Control, DIN Rail Mount ED10E5

Crydom ED10E5 Solid State Relay is a high-performance DC switching relay designed for industrial and commercial automation applications. With a maximum load current rating of 5 A and a load voltage capacity of up to 80 V dc, it excels in controlling DC loads with precision and durability.

This relay features a MOSFET output type, providing fast switching functionality with low capacitance of 10 pF which ensures minimal signal distortion. It supports control voltages from 18 V ac to 36 V ac, accommodating various control signal levels while maintaining efficiency.

The device is constructed for DIN rail mounting, offering an industry-standard form factor with physical dimensions of 37.4 mm height, 29 mm length, and 12.7 mm width. This compact design facilitates straightforward installation in electrical panels.

Operating temperature ranges from -30°C to 80°C, making it suitable for demanding environments in industrial automation, motor control, HVAC systems, and signal conditioning. The relay utilizes a single-pole single-throw (SPST) contact configuration for simple on/off control, and includes a through-hole terminal type for secure electrical connections.

Additional features include LED input status indication that allows visual confirmation of relay operation. The relay complies with global standards including RoHS, IEC Rated, cUL, and CE, ensuring reliable performance and safety.

Typical applications include use as a motor controller rated relay, power control in automation systems, and integration in manufacturing processes requiring solid state switching.

This relay is designed for DIN rail mounting for easy integration. Features MOSFET output type ensuring fast and reliable switching. Operates in temperatures ranging from -30°C to 80°C. Has a compact form factor of 37.4 mm height, 29 mm length, and 12.7 mm width.

Includes LED input status indicator for operational feedback. Designed with SPST contact configuration for single-pole single-throw switching. Low off-state leakage current of 20 μA enhances energy efficiency. Meets multiple standards: RoHS, IEC Rated, cUL, and CE compliance.

Suitable for industrial automation and motor controller applications. Explore our range of Crydom Solid State Relays for high-quality and reliable electrical switching solutions available on EnvMart.
