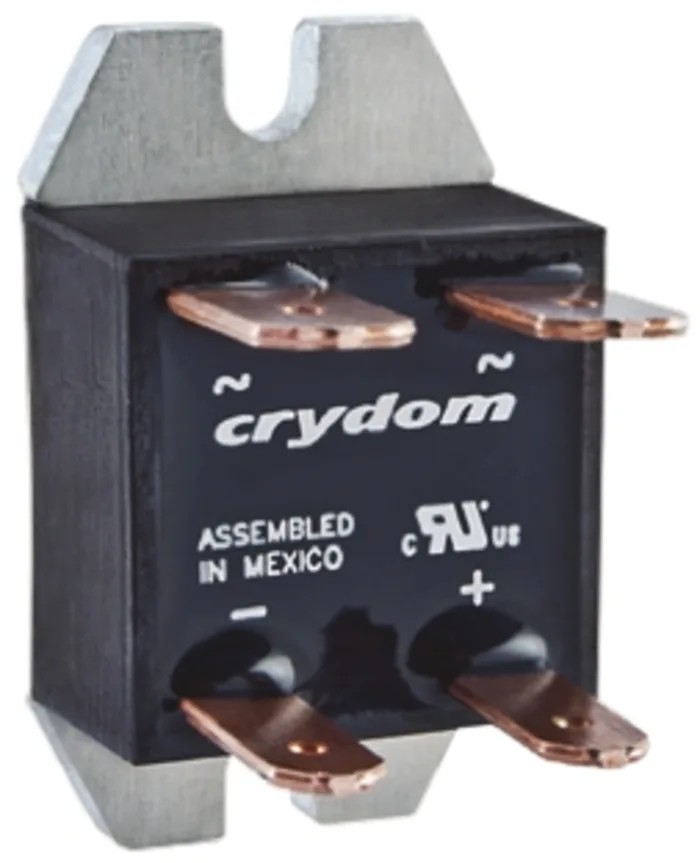

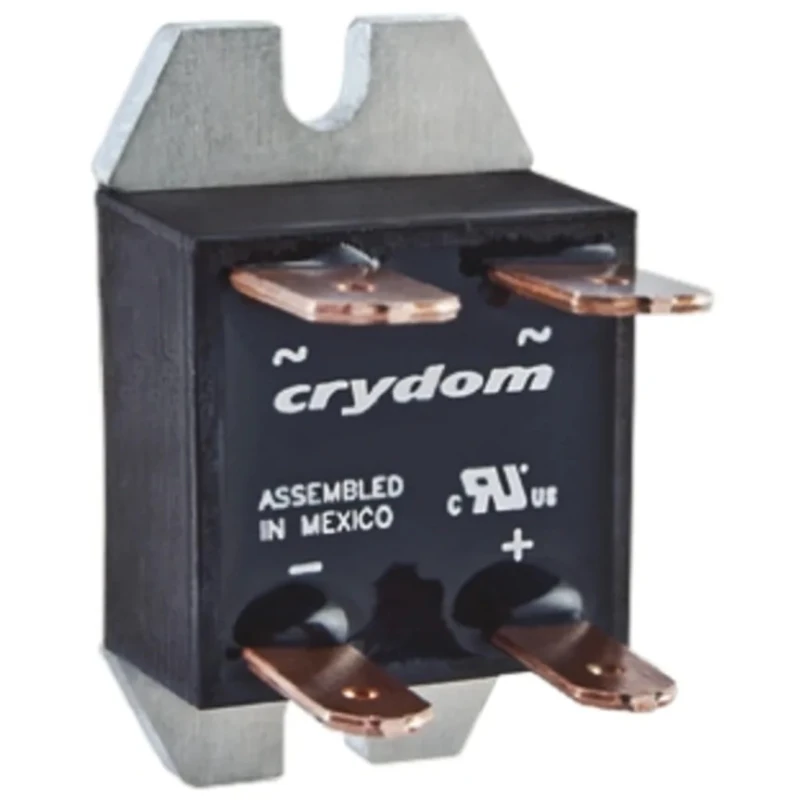

Crydom EL Series Solid State Relay 10 A Load Panel Mount 280 V ac Load 27 V dc Control EL240A10R-24
Specifications
| Country of Origin | India |
|---|---|
| Brand | Crydom |
| Operating Temperature | -30 → +80 °C |
| Height | 14.3mm |
| Length | 35.6mm |
| Model | EL240A10R-24 |
| IP Rating | IP00 |
| Width | 21.1mm |
| Mount Type | Panel |
| Output type | MOSFET |
| Series | EL |
| Maximum Operating Temperature | 80°C |
| Contact Configuration | SPST |
| Capacitance | 8pF |
| Minimum Operating Temperature | -30°C |
| Terminal type | Quick Connect |
| Switching Function | Zero Cross Switching |
| Maximum Load Current | 10A |
| Standards/Approvals | CE, IEC Rated, RoHS, UL |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 740-6610Brand: CrydomManufacturers Part No.: EL240A10R-24 |
| Maximum Load Voltage | 280V ac |
| Minimum Load Voltage | 24V ac |
| Minimum Control Voltage | 21V dc |
| Maximum Control Voltage | 27V dc |
| Off State Leakage Current | 0.1mArms |
Key Features
- This solid state relay features zero cross switching for reduced electrical noise.
- Designed with a quick connect spade terminal type for easy installation.
- Operating temperature range from -30°C to 80°C suitable for various environments.
- It has a compact size with dimensions 35.6 mm length, 21.1 mm width, and 14.3 mm height.
- Complies with UL Recognized, CE, IEC, and RoHS standards ensuring quality and safety.
- Output type is MOSFET providing efficient and fast switching performance.
- Supports load voltage from 24 V AC minimum up to 280 V AC maximum.
- Control voltage range spans from 21 V DC to 27 V DC.
Product Description
The Crydom EL240A10R-24 EL Series solid state relay is a panel mount component engineered for industrial and electrical automation applications. It supports a maximum load current of 10 A and can manage load voltages ranging from 24 V AC to 280 V AC, making it suitable for a wide range of AC load control tasks.
This relay incorporates zero cross switching technology which reduces electrical noise and extends device and load life by switching loads at the zero crossing point of the AC waveform.
Its compact design with dimensions of 35.6 mm length, 21.1 mm width, and 14.3 mm height allows it to be mounted efficiently on panels where space is limited. The device operates reliably within a temperature range of -30°C up to 80°C, suitable for most industrial environments.
The relay uses quick connect spade terminals for simplified wiring and fast installation. The MOSFET output ensures fast and efficient switching, and the relay is compatible with control voltages from 21 V DC to 27 V DC.
Certified to meet UL Recognized, CE, IEC Rated, and RoHS compliance, the EL240A10R-24 solid state relay assures safety and environmental compliance. This solid state relay features zero cross switching for reduced electrical noise.
Designed with a quick connect spade terminal type for easy installation. Operating temperature range from -30°C to 80°C suitable for various environments. It has a compact size with dimensions 35.6 mm length, 21.1 mm width, and 14.3 mm height.
Complies with UL Recognized, CE, IEC, and RoHS standards ensuring quality and safety. Output type is MOSFET providing efficient and fast switching performance. Supports load voltage from 24 V AC minimum up to 280 V AC maximum.
Control voltage range spans from 21 V DC to 27 V DC.
This relay is ideally suited for industrial automation, electrical panels, HVAC control systems, and manufacturing equipment. Its reliable performance and mounting design streamline integration in various control applications.
Explore more Solid State Relays and control components in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this relay is 10 A.
This model supports a load voltage range from 24 V AC to 280 V AC.
The relay accepts a control voltage range from 21 V DC to 27 V DC.
The dimensions of this solid state relay are 35.6 mm in length, 21.1 mm in width, and 14.3 mm in height.
It operates within a temperature range of -30°C to 80°C.
The output type of this relay is MOSFET, which allows for efficient and fast switching performance.
This model is designed for panel mounting.
It features zero cross switching, which reduces electrical noise and extends the life of the device and load.
It complies with UL Recognized, CE, IEC Rated, and RoHS standards.
The relay is equipped with quick connect spade terminals for easy installation.
The IP rating of this model is IP00, indicating no special protection against dust or water.
The off state leakage current is 0.1 mArms.
