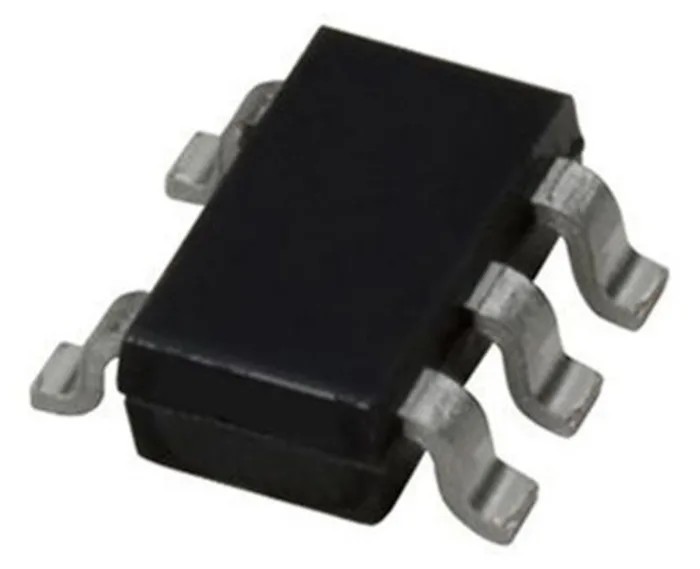

DiodesZetex Operational Amplifier 1 MHz Gain Bandwidth Product 5-Pin SOT-353 Package LMV321SEG-7
Specifications
| Country of Origin | China |
|---|---|
| Brand | DiodesZetex |
| Height | 1mm |
| Length | 2.2mm |
| Model | LMV321SEG-7 |
| Width | 1.35mm |
| Mount Type | Surface |
| Series | LMV321/324/358 |
| Maximum Operating Temperature | 85°C |
| Package Type | SOT-353 |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 738-5301PBrand: DiodesZetexManufacturers Part No.: LMV321SEG-7 |
| Pin Count | 5 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.7V |
| GBP - Gain Bandwidth Product | 1MHz |
| Input Bias Current | 10 nA |
| Vos - Input Offset Voltage | 7 mV |
| Slew Rate | 1V/μs |
| Input Offset Current | 50 nA |
Key Features
- Provides single channel operational amplification at 5.5 V maximum supply voltage.
- Features low input bias current of 10 nA and low input offset current of 50 nA.
- Input offset voltage is nominally 7 mV ensuring precise signal processing.
- Operating temperature range is between -40°C and 85°C for diverse environmental applications.
- Compact device dimensions include 2.2 mm length, 1.35 mm width, and 1 mm height.
- Slew rate of 1 V/μs supports fast signal transitions for accurate waveform amplification.
- Compatible with LMV321/324/358 series for flexible design integration.
- Manufactured in China, adhering to industry semiconductor standards.
Product Description
DiodesZetex LMV321SEG-7 is a single channel operational amplifier designed for general purpose applications in industrial and electronic environments. Operating with a gain bandwidth product of 1 MHz and housed in a compact 5-pin SOT-353 surface mount package, it provides efficient signal amplification at supply voltages up to 5.5 V.
Its low input bias current of 10 nA and an input offset current of 50 nA, combined with a nominal input offset voltage of 7 mV, ensure precise signal conditioning for sensitive circuits. The device reliably operates within a temperature range from -40°C to 85°C, making it suitable for a broad spectrum of environmental conditions.
The operational amplifier features a slew rate of 1 V/μs, enabling it to handle rapid signal changes accurately. Measuring just 2.2 mm in length, 1.35 mm in width, and 1 mm in height, it is ideal for compact PCB designs and low-profile applications.
Compatible with LMV321/324/358 series, this product is an excellent choice for industrial, laboratory, HVAC, manufacturing, and power electronics applications where stable and reliable amplification is critical. Its surface mount technology package supports automated assembly processes in high-volume production.
Single channel operational amplifier with 1 MHz gain bandwidth product. Low input bias and offset currents for precision applications. Operating temperature from -40°C to 85°C for versatility. Compact SOT-353 package supports surface mount assembly.
Suitable for electronics and power connector semiconductor circuits. Explore our extensive selection in the Operational Amplifier category at EnvMart for quality products tailored to your industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 1 MHz.
The maximum supply voltage for the LMV321SEG-7 is 5.5 V.
This model operates within a temperature range of -40°C to 85°C.
The dimensions of the SOT-353 package are 2.2 mm in length, 1.35 mm in width, and 1 mm in height.
The input bias current of the LMV321SEG-7 is 10 nA.
This operational amplifier has a single channel.
The slew rate of this model is 1 V/μs.
The input offset voltage is nominally 7 mV.
Yes, it is compatible with the LMV321/324/358 series for flexible design integration.
The input offset current for this model is 50 nA.
This operational amplifier uses a surface mount type.
The LMV321SEG-7 is manufactured in China.
