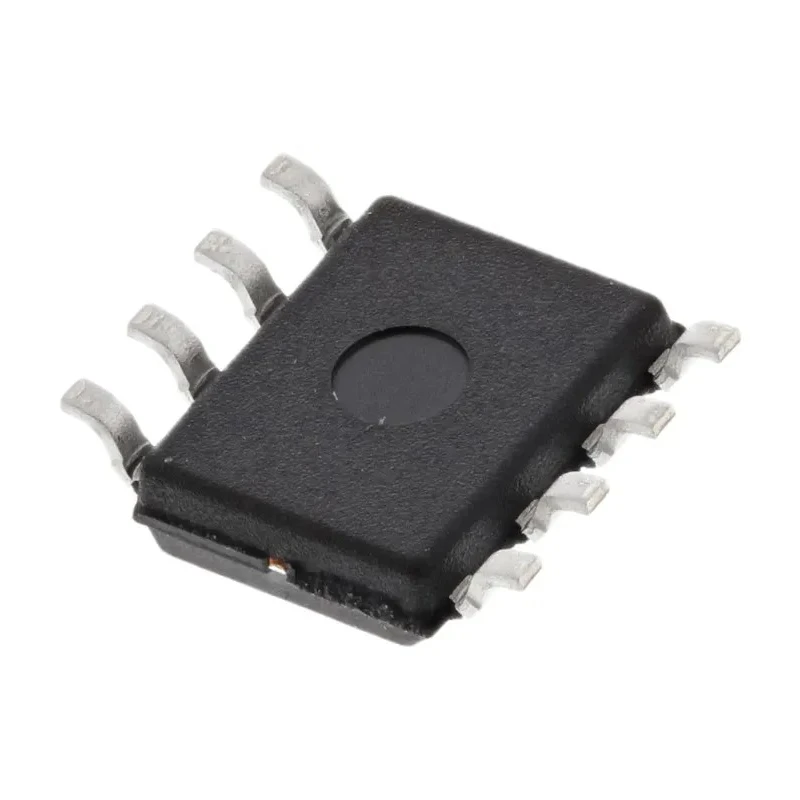

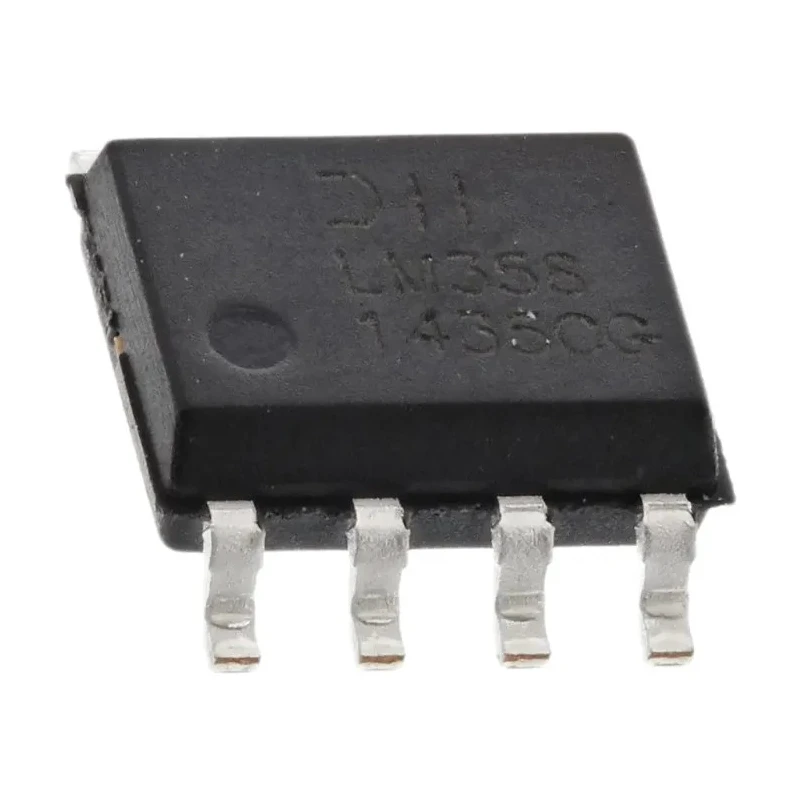

DiodesZetex Operational Amplifier 1 MHz 8-Pin SOP 32V LM358S-13
Specifications
| Country of Origin | China |
|---|---|
| Brand | DiodesZetex |
| Height | 1.5mm |
| Length | 4.95mm |
| Model | LM358S-13 |
| Width | 3.95mm |
| Mount Type | Surface |
| Series | LM358 |
| Output Current | 20mA |
| Maximum Operating Temperature | 70°C |
| Package Type | SOP |
| Minimum Operating Temperature | 0°C |
| Number Of Channels | 2 |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 738-5308PBrand: DiodesZetexManufacturers Part No.: LM358S-13 |
| Pin Count | 8 |
| Maximum Supply Voltage | 32V |
| Minimum Supply Voltage | 3V |
| GBP - Gain Bandwidth Product | 1MHz |
| Input Bias Current | 250 nA |
| Vos - Input Offset Voltage | 2 mV |
| Input Offset Current | 50 nA |
Key Features
- Surface mount type with small 8-pin SOP package for compact designs.
- Dual channel operational amplifier with 1 MHz gain bandwidth product.
- Wide supply voltage range from 3V to 32V suitable for various applications.
- Low input bias current of 250 nA and input offset voltage of 2 mV for precision operation.
- Operating temperature range from 0°C to 70°C ensures reliability in typical environments.
- Output current capacity of 20 mA supports standard load requirements.
- Designed without automotive standard compliance but suitable for general industrial and electronic uses.
Product Description
DiodesZetex LM358S-13 is a reliable operational amplifier featuring a 1 MHz gain bandwidth product designed for surface-mount applications in electronics manufacturing. Packaged in an 8-pin SOP format, this amplifier supports a supply voltage range from 3V up to 32V, enabling use in various power environments.
With dual channels, the LM358S-13 offers two independent amplifiers in a compact form factor, making it ideal for space-constrained designs. It features low input bias current of 250 nA and minimal input offset voltage of 2 mV, ensuring precision signal amplification suitable for industrial, laboratory, and general electronic instrumentation.
The device operates reliably from 0°C to 70°C operating temperature, making it appropriate for typical commercial and industrial conditions. It provides an output current capacity of up to 20 mA, supporting a variety of peripheral devices and circuit loads.
Physical dimensions measure approximately 4.95 mm in length, 3.95 mm in width, and 1.5 mm in height, allowing integration on compact printed circuit boards. The package type is SOP, supporting surface mount assembly processes common in modern electronic manufacturing.
This operational amplifier is suitable for a broad array of industrial applications including signal conditioning, filtering, sensor amplification, and control systems in manufacturing and instrumentation sectors. It offers standard performance without specific automotive grade certification.
Surface mount 8-pin SOP package for compact PCB designs. Dual channel operation with 1 MHz gain bandwidth product. Wide 3V to 32V supply voltage range. Low input bias current and offset voltage for accuracy. Operating temperature from 0°C to 70°C for reliable use.
20 mA output current capacity for versatile loads. Small physical size optimizes space on circuit boards. Ideal for industrial, laboratory, and electronic instrumentation applications. Explore more Operational Amplifiers and semiconductor components in the Electronics & Electricals category on EnvMart for all your design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LM358S-13 has a gain bandwidth product of 1 MHz, which is suitable for various amplification applications.
This model supports a supply voltage range from 3V to 32V, making it versatile for different power environments.
It can provide an output current capacity of up to 20 mA, which is adequate for standard load requirements.
The physical dimensions of this operational amplifier are approximately 4.95 mm in length, 3.95 mm in width, and 1.5 mm in height.
The LM358S-13 operates reliably within an ambient temperature range of 0°C to 70°C.
This operational amplifier features dual channels, providing two independent amplifiers in one package.
The input bias current for this model is 250 nA, which helps ensure precision in signal amplification.
The input offset voltage is 2 mV, contributing to its accuracy in amplification tasks.
It is packaged in an 8-pin SOP format, suitable for surface mount applications.
This operational amplifier is suitable for a broad range of applications including signal conditioning, filtering, sensor amplification, and control systems.
The maximum operating temperature for the LM358S-13 is 70°C, ensuring reliable performance in typical environments.
The input offset current for this operational amplifier is 50 nA, which is relevant for precision applications.
