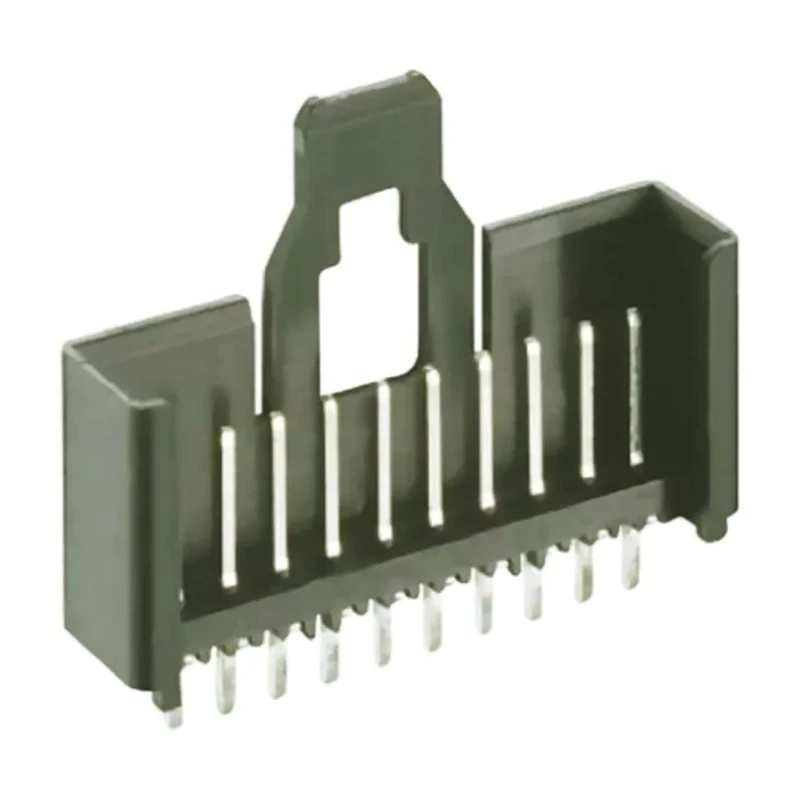

Lumberg Minimodul Series Straight Through Hole PCB Header, 12 Contacts, 2.5 mm Pitch, 1 Row, Shrouded 2,5 MSF 12
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 160V |
| Brand | Lumberg |
| Orientation | Straight |
| Current | 5A |
| Model | 2,5 MSF 12 |
| Mount Type | Through Hole |
| Housing Material | Glass Filled Polyamide |
| Contact Material | Brass |
| Series | Minimodul |
| Termination Type | Solder |
| Maximum Operating Temperature | 120°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2.5mm |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 737-8656Brand: LumbergManufacturers Part No.: 2,5 MSF 12 |
| Contact Plating | Tin |
| Number of Contacts | 12 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Features a glass filled polyamide housing for durability.
- Supports current up to 5 A in a wire-to-board configuration.
- Brass contact material with tin plating ensures reliable conductivity.
- Designed for through-hole mounting with solder termination.
- Operating temperature range from -40°C to 120°C for diverse environments.
- Complies with standards DIN EN 60664/IEC 60664, IEC 60335-1, and IEC 60695-2-11.
- Male contact gender and straight orientation for easy integration.
Product Description
Lumberg 2,5 MSF 12 Minimodul Series PCB Header is designed for efficient wire-to-board connections in electronic assemblies. Featuring 12 male contacts in a single row with a precise 2.5 mm pitch, this header supports low to medium current applications up to 5 amperes.
The housing is made from glass filled polyamide, ensuring mechanical robustness and electrical insulation. Brass contacts plated with tin provide reliable electrical connectivity and corrosion resistance.
This component employs a through-hole mount type with solder termination, suitable for traditional PCB mounting techniques. Its shrouded design offers additional protection and alignment for mating connectors.
With an operating temperature range from -40°C to 120°C, the header is suitable for a wide range of industrial, commercial, and electronic manufacturing environments.
It meets recognized industry standards such as DIN EN 60664/IEC 60664 and IEC 60335-1, ensuring compliance and safety in application. The straight orientation and locking features enable secure and stable electrical connections, ideal for assemblies requiring robust wire harnessing.
Features a glass filled polyamide housing for durability. Supports current up to 5 A in a wire-to-board configuration. Brass contact material with tin plating ensures reliable conductivity. Designed for through-hole mounting with solder termination.
Operating temperature range from -40°C to 120°C for diverse environments. Complies with standards DIN EN 60664/IEC 60664, IEC 60335-1, and IEC 60695-2-11. Male contact gender and straight orientation for easy integration.
This PCB header is primarily used in industrial, electronic manufacturing, automotive, and control system applications, providing a reliable interface for signal and power transmission. Its adaptability makes it suitable for prototype development as well as high-volume production.
Explore more PCB connectors and headers to find the perfect components for your electronic design projects at EnvMart.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum current of 5 amperes in a wire-to-board configuration.
The pitch for this PCB header is 2.5 mm, allowing for efficient connections in electronic assemblies.
It operates within a temperature range of -40°C to 120°C, making it suitable for various environments.
This header is designed for through-hole mounting with solder termination, suitable for traditional PCB mounting techniques.
The housing is made from glass filled polyamide, while the contacts are brass with tin plating for reliable conductivity.
It complies with DIN EN 60664/IEC 60664, IEC 60335-1, and IEC 60695-2-11, ensuring safety and reliability in applications.
This model features 12 male contacts arranged in a single row.
The contacts are male and have a straight orientation, which facilitates easy integration into assemblies.
The voltage rating for this unit is 160V, suitable for various electronic applications.
It is primarily used in industrial, electronic manufacturing, automotive, and control system applications.
The shrouded design provides additional protection and alignment for mating connectors, enhancing connection stability.
