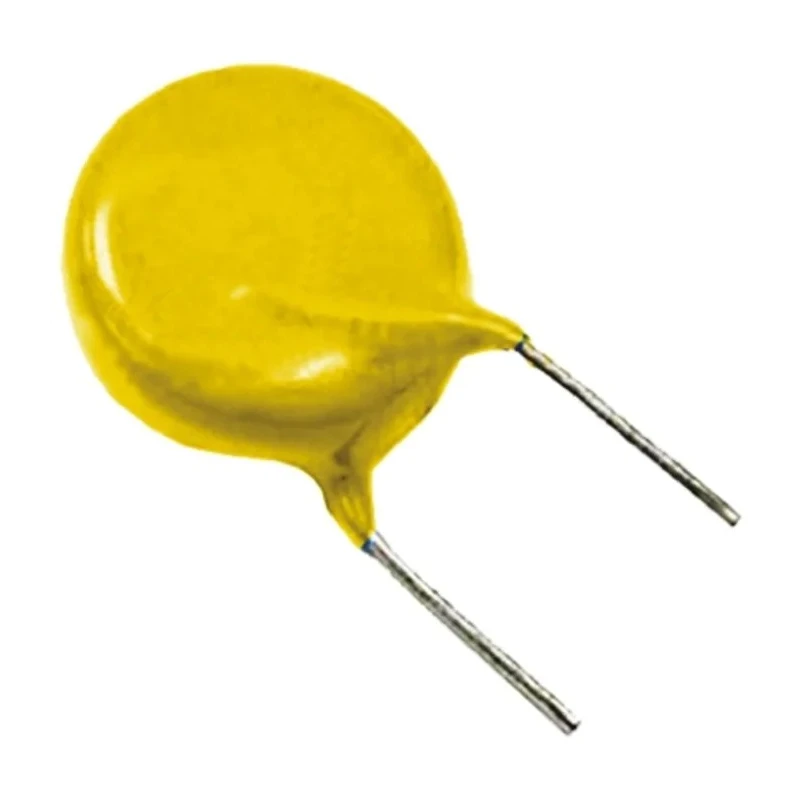

Vishay Single Layer Ceramic Capacitor 68 pF 300V ac ±10% Y5S Dielectric, VY2 Series, Through Hole Radial VY2680K29Y5SS6TV7

Vishay VY2680K29Y5SS6TV7 is a high reliability Single Layer Ceramic Capacitor offering 68 pF capacitance and a 300V ac voltage rating. This capacitor belongs to the VY2 series with a Y5S dielectric specially designed for through hole mounting applications with radial terminals.

The capacitor is encapsulated in flammable resistant epoxy resin conforming to UL 94 V-0 standards delivering excellent safety and durability in AC line rated Class X1 (440 Vac) and Class Y2 (300 Vac) environments. It features a compact ceramic disc package with dimensions of 10.5 mm height, 7.5 mm diameter, and 5 mm width, making it suitable for space-constrained electronic assemblies.

Its tolerance is ±10%, and it operates reliably over a temperature range of -40°C to a maximum of 125°C. This product meets industry safety and environmental standards including RoHS compliance, CSA certification, IEC 60384-14, and DIN EN 60384-14 approvals, underscoring its quality for use in industrial, consumer, and commercial electronic devices.

The dissipation factor is rated at 2.5%, and it has a suppression class of Y2/X1, providing reliable noise suppression and electrical stability in demanding applications.

Typical uses include power supplies, heating, ventilation and air conditioning systems (HVAC), industrial control systems, appliances, and other electrical circuits requiring robust capacitors for high-frequency AC applications.

Package contents consist of a single Vishay single layer ceramic capacitor of the stated specifications. Designed for AC line rated Class X1 (440 Vac) and Class Y2 (300 Vac) applications. Encapsulated in flammable resistant epoxy resin compliant with UL 94 V-0 standards.

Through hole radial mounting with ceramic disc package. Maximum operating temperature of 125°C ensures high reliability in electrical circuits. Dimensions include 10.5 mm height, 7.5 mm diameter, and 5 mm width for compact installation.

Complies with RoHS, CSA, IEC 60384-14, and DIN EN 60384-14 standards. Dissipation factor rated at 2.5% and suppression class rated as Y2/X1. Operational temperature range from -40°C minimum operating temperature to 125°C maximum.
