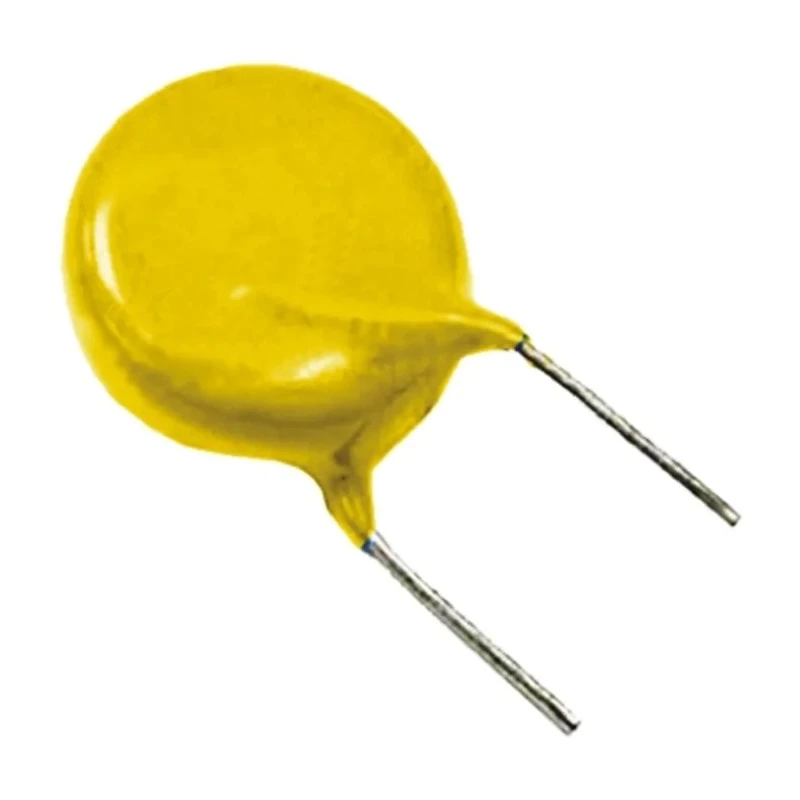

Vishay Single Layer Ceramic Capacitor 100 pF 500V AC ±10% Y5S Dielectric Through Hole, Radial Terminal VY1101K31Y5SQ6TV0
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 500V ac |
| Diameter | 8mm |
| Brand | Vishay |
| Height | 11mm |
| Model | VY1101K31Y5SQ6TV0 |
| Width | 5mm |
| Mount Type | Through Hole |
| Series | VY1 |
| Maximum Operating Temperature | 125°C |
| Tolerance | ±10 % |
| Capacitance | 100pF |
| Minimum Operating Temperature | -40°C |
| Terminal type | Radial |
| Dissipation Factor | 2.5% |
| Standards/Approvals | CSA, IEC 60384-14, RoHS, DIN EN 60384-14 |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 736-8842 Brand: [Vishay](https://in.rsdelivers.com/brands/vishay)Manufacturers Part No.: VY1101K31Y5SQ6TV0 |
| Pin Count | 2 |
| Dielectric | Y5S |
Key Features
- This capacitor features a Y5S dielectric material and a VY1 series design for reliability.
- Mounted through hole with radial terminal type for secure connections.
- Operating temperature ranges from -40°C to a maximum of 125°C for durable performance.
- Silver-plated ceramic disc construction with tinned copper clad steel leads of 0.6 mm diameter.
- Complies with IEC 60384-14 4th edition and other standards ensuring safety and quality.
- Applications include X1 and Y1 class per IEC standards and are suitable for across-the-line and line by-pass uses.
- Flame retardant epoxy resin encapsulation rated UL 94 V-0 for enhanced safety.
Product Description
Vishay VY1101K31Y5SQ6TV0 is a high-reliability single layer ceramic capacitor designed for electrical and electronic industrial applications. It features 100 pF capacitance with a voltage rating of 500V AC and a tolerance of ±10%. Utilizing a Y5S dielectric, this capacitor belongs to the VY1 series renowned for consistent performance.
The capacitor is constructed as a ceramic disc silver plated on both sides, with connection leads made from tinned copper clad steel of 0.6 mm diameter. It supports a through hole mounting style and has radial terminal leads compatible with various circuit assembly methods.
Operating temperature range is from -40°C up to a maximum of 125°C, allowing stable operation in harsh environment conditions. Its flame retardant epoxy resin encapsulation meets UL 94 V-0 safety standards.
The component complies with international standards including IEC 60384-14, CSA, and DIN EN, certifying its suitability for demanding electrical safety applications. It is particularly used for X1 and Y1 classifications according to IEC 60384-14, performing vital roles in line by-pass and antenna coupling scenarios.
This capacitor exhibits a dissipation factor of 2.5% and uses radial terminals for through hole mounting convenience. The compact dimensions (11 mm height, 8 mm diameter, 5 mm width) enable flexible implementation in diverse circuit designs.
The silver plating and epoxy encapsulation contribute to its robust mechanical and electrical properties. It is suitable for industrial, manufacturing, automotive electronics, and other commercial applications where electrical insulation and safety capacitors are required.
Package contents typically include one capacitor as described, designed for insertion into machinery or circuit boards in bulk quantities.
For professionals seeking durable, certified single layer ceramic capacitors with precise capacitance and reliable performance, Vishay's VY1101K31Y5SQ6TV0 is an excellent industrial choice.
Explore more electronic components and capacitors in the Single Layer Ceramic Capacitors category on EnvMart for your industrial and manufacturing needs.
Explore more products in our Electronic Components, Power & Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Vishay VY1101K31Y5SQ6TV0 has a capacitance value of 100 pF.
This capacitor is rated for a voltage of 500V AC.
It operates within a temperature range of -40°C to 125°C.
It utilizes a Y5S dielectric material.
The capacitor has dimensions of 11 mm in height, 8 mm in diameter, and 5 mm in width.
It supports through hole mounting with radial terminals.
It complies with CSA, IEC 60384-14, RoHS, and DIN EN 60384-14 standards.
The dissipation factor is 2.5%.
This model features 2 pins.
It has radial terminal leads for connection.
The capacitor is manufactured in India.
It is suitable for X1 and Y1 class applications per IEC standards, including across-the-line and line by-pass uses.
