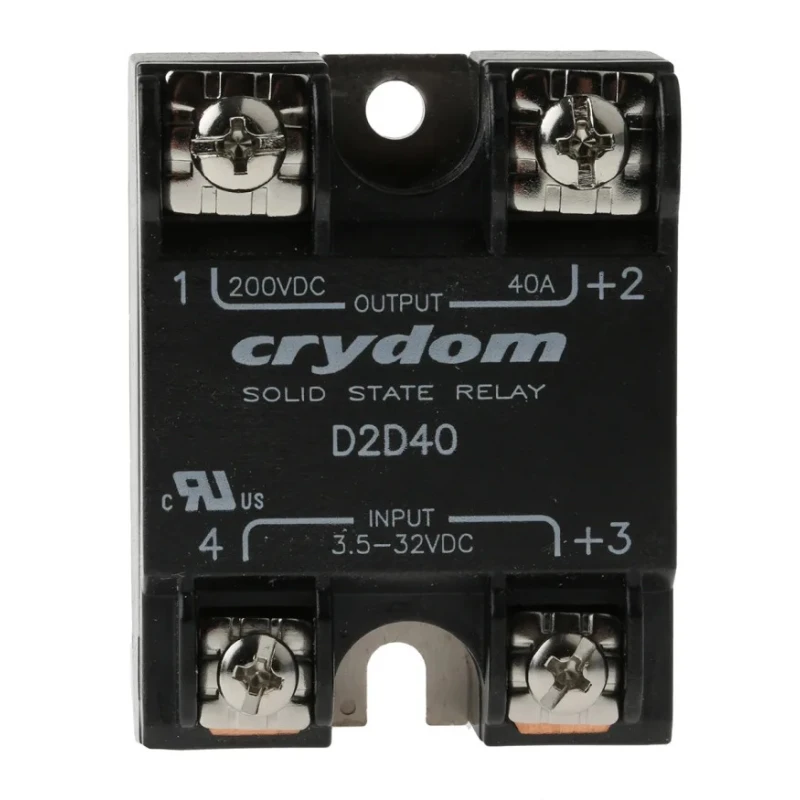

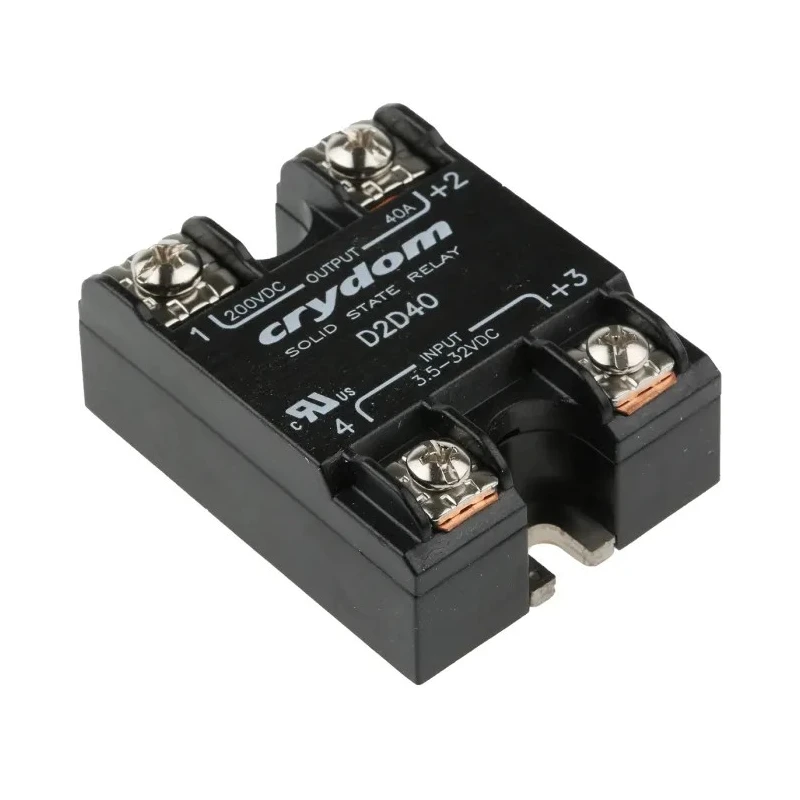

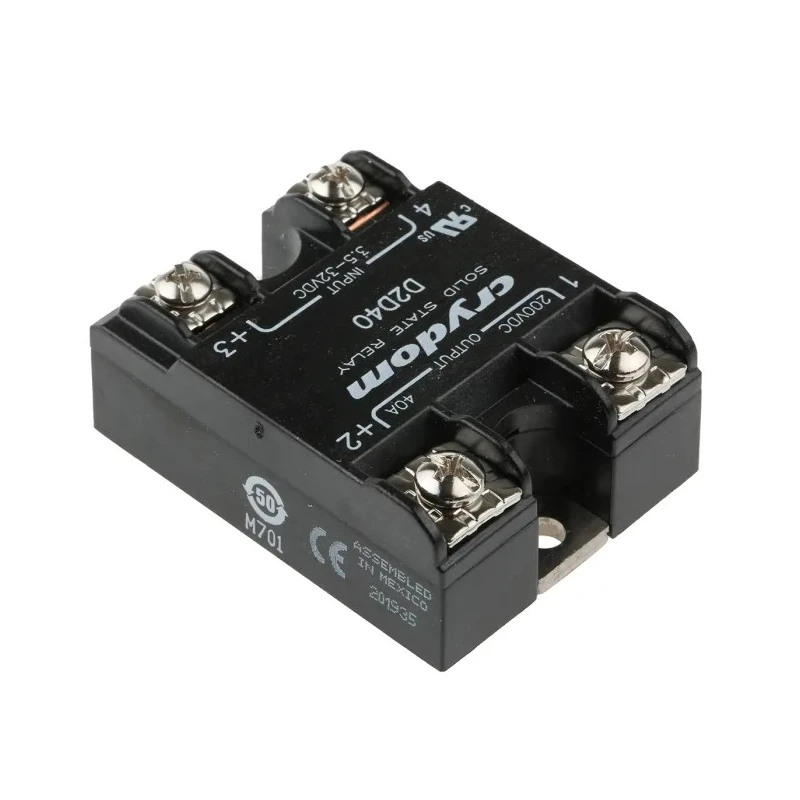

Crydom 1-DC Series Solid State Relay 40A Load, 200 V DC Load, 32V DC Control D2D40
Specifications
| Country of Origin | Mexico |
|---|---|
| Brand | Crydom |
| Height | 58.4mm |
| Length | 45.7mm |
| Model | D2D40 |
| IP Rating | IP00 |
| Width | 22.6mm |
| Mount Type | Panel |
| Output type | MOSFET |
| Series | 1-DC |
| Maximum Operating Temperature | 80°C |
| Contact Configuration | SPST |
| Capacitance | 8pF |
| Minimum Operating Temperature | -20°C |
| Terminal type | Screw |
| Switching Function | DC Switching |
| Maximum Load Current | 40A |
| Standards/Approvals | RoHS, ISO, CSA, cLR US, CE, UL |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 736-0879Brand: CrydomManufacturers Part No.: D2D40Distrelec Article No.: 13744522 |
| Maximum Load Voltage | 200V dc |
| Minimum Load Voltage | 0V dc |
| Minimum Control Voltage | 3.5V dc |
| Maximum Control Voltage | 32V dc |
| Off State Leakage Current | 0.3mA |
Key Features
- Supports maximum load current of 40 A for high power applications.
- Operates within a load voltage range of 0 to 200 V DC.
- Control voltage range from 3.5 V DC to 32 V DC ensures compatibility with various control signals.
- Compact panel mount design with screw terminals allows secure installation.
- Wide operating temperature range from -20°C to 80°C suits demanding industrial conditions.
- Utilizes MOSFET output type with SPST contact configuration for reliable DC switching.
- Lightweight at approximately 75.5 grams, minimizing mechanical strain on boards.
- Features anti-rotation barriers enhancing mounting stability.
Product Description
Crydom D2D40 is a 1-DC Series Solid State Relay engineered for reliable DC switching applications with a load current capacity of 40 Amperes and a maximum load voltage of 200 V DC. It is ideal for panel mount configurations in industrial control systems where precise, durable, and maintenance-free operation is critical.
This solid state relay operates with control voltages ranging from 3.5 V DC to 32 V DC, supporting a broad range of input control signal levels. Its MOSFET output type combined with an SPST contact configuration provides fast, efficient switching performance with minimal leakage current measured at 0.3 mA in the off state. The device boasts a capacitance of 8 pF, making it suitable for high-speed applications.
Constructed to withstand harsh environments, the relay functions reliably across temperatures ranging from -20°C to 80°C, ensuring suitability for demanding industrial, manufacturing, and automation applications. The design includes anti-rotation barriers on the housing to secure mounting, and its lightweight 75.5 g body minimizes mechanical stress on mounting panels.
Crydom D2D40 carries safety and quality approvals including RoHS, ISO, CSA, cLR US, CE, and UL, underscoring its compliance with global standards. The robust design also exhibits excellent longevity with a calculated Mean Time Between Failures (MTBF) exceeding thousands of years at typical operating temperatures.
Typical applications include industrial controls, multiplexers, I/O subsystems, and other automation systems requiring efficient, solid-state DC switching capabilities. Supports maximum load current of 40 A for high power applications.
Operates within a load voltage range of 0 to 200 V DC. Control voltage range from 3.5 V DC to 32 V DC. Compact panel mount design with screw terminals. Wide operating temperature range from -20°C to 80°C. MOSFET output type and SPST contact configuration.
Lightweight with anti-rotation barriers for stable installation. Meets RoHS, ISO, CSA, CE, UL standards. Long service life without mechanical wear. Explore more from Crydom and other Solid State Relays in the Electronics & Electricals category at EnvMart for reliable industrial automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this model is 40 Amperes, making it suitable for high power applications.
This relay operates within a load voltage range of 0 to 200 V DC.
It accepts control voltages ranging from 3.5 V DC to 32 V DC, ensuring compatibility with various control signals.
The relay utilizes a MOSFET output type with an SPST contact configuration for efficient DC switching.
The dimensions of this unit are 58.4 mm in height, 45.7 mm in length, and 22.6 mm in width.
This model weighs approximately 75.5 grams, which helps minimize mechanical strain on mounting panels.
It operates within a wide temperature range from -20°C to 80°C, suitable for demanding industrial conditions.
The off state leakage current is measured at 0.3 mA, indicating minimal leakage when the relay is not in operation.
It complies with several standards including RoHS, ISO, CSA, cLR US, CE, and UL.
This relay features a compact panel mount design with screw terminals for secure installation.
Typical applications include industrial controls, multiplexers, I/O subsystems, and other automation systems requiring efficient DC switching capabilities.
The capacitance of this model is 8 pF, making it suitable for high-speed applications.
