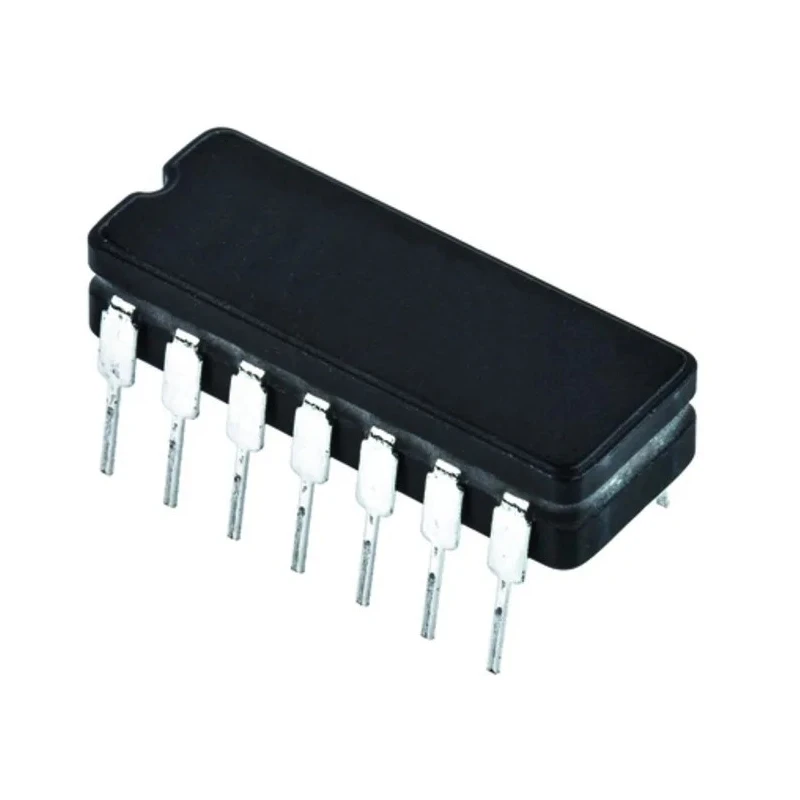

Texas Instruments Operational Amplifier 1 MHz Gain Bandwidth, 14-Pin CDIP, 22V LM148J
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 3.56mm |
| Length | 26.92mm |
| Model | LM148J |
| Width | 7.62mm |
| Mount Type | Through Hole |
| Series | LM148-N |
| Maximum Operating Temperature | 125°C |
| Package Type | CDIP |
| Minimum Operating Temperature | -55°C |
| Number Of Channels | 4 |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 732-0727Brand: Texas InstrumentsManufacturers Part No.: LM148J |
| Pin Count | 14 |
| Maximum Supply Voltage | 22V |
| Minimum Supply Voltage | -22V |
| GBP - Gain Bandwidth Product | 1MHz |
| Input Bias Current | 100 nA |
| Vos - Input Offset Voltage | 5 mV |
| Slew Rate | 0.5V/μs |
| Input Offset Current | 25 nA |
Key Features
- The device operates with a supply voltage range from -22V to 22V.
- It features a low input bias current of 100 nA and low input offset current of 25 nA.
- The input offset voltage is 5 mV, supporting accurate signal amplification.
- Slew rate is 0.5 V/µs, ensuring good response speed for typical amplifier tasks.
- It is designed to operate reliably across a temperature range of -55°C to 125°C.
- The amplifier package measures 26.92 mm in length, 7.62 mm in width, and 3.56 mm in height.
- This model belongs to the LM148-N series and is mounted using through hole technology.
- No specific automotive or specialized industry certifications are included.
Product Description
Texas Instruments LM148J Operational Amplifier is a high-quality quad operational amplifier featuring a gain bandwidth product of 1 MHz. Offered in a 14-pin ceramic dual inline package (CDIP), it is designed for general purpose applications requiring reliable and precise amplification performance. The device supports a wide supply voltage range from -22V to +22V, facilitating versatile industrial and electronic circuit designs.
The LM148J offers low input bias current and offset currents of 100 nA and 25 nA respectively, making it suitable for sensitive signal processing tasks. Input offset voltage is 5 mV, ensuring minimal signal error. The amplifier features a slew rate of 0.5 V/μs, providing decent speed response for standard operational amplifier needs.
This device is temperature rated from -55°C to 125°C, allowing it to function effectively in varied environmental conditions found in industrial electronics, laboratory instrumentation, and precision measurement equipment.
The package dimensions of 26.92 mm length, 7.62 mm width, and 3.56 mm height allow easy integration into through-hole printed circuit boards (PCBs).
This operational amplifier is ideally suited for industrial control systems, signal conditioning, instrumentation amplifiers, audio amplifiers, and general laboratory electronics where dependable linear amplification is required. It comes as a new product without specific automotive certification but complies with industry standards for quality and reliability.
The device operates with a supply voltage range from -22V to 22V. Low input bias and offset currents support high accuracy signal processing. Quad-channel configuration in a 14-pin CDIP package. Slew rate of 0.5 V/µs balances speed and stability.
Wide operating temperature range from -55°C to 125°C. Suitable for various industrial, laboratory, and electronic device applications. Robust semiconductor device from Texas Instruments' LM148 series. Explore the comprehensive range of Operational Amplifiers and other semiconductor products available at EnvMart for your industrial and laboratory needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 1 MHz, making it suitable for a variety of amplification tasks.
This model operates with a supply voltage range from -22V to +22V, allowing for versatile application in electronic circuits.
The input bias current for this operational amplifier is 100 nA, which supports accurate signal processing.
The input offset voltage is 5 mV, ensuring minimal signal error during amplification.
The slew rate of this operational amplifier is 0.5 V/μs, providing a good response speed for typical applications.
The package dimensions are 26.92 mm in length, 7.62 mm in width, and 3.56 mm in height, suitable for through-hole mounting.
This operational amplifier operates effectively across a temperature range of -55°C to 125°C, accommodating various environmental conditions.
The LM148J features a quad-channel configuration, allowing for multiple signal processing tasks simultaneously.
This model is designed for through-hole mounting, facilitating integration into printed circuit boards (PCBs).
The input offset current is 25 nA, which contributes to the accuracy of the amplifier's performance.
The LM148J is part of the LM148-N series of operational amplifiers from Texas Instruments.
The country of origin for this operational amplifier is India.
