Tektronix Passive Voltage Oscilloscope Probe 500 MHz Bandwidth 10x Attenuation BNC Connector P6139B
Specifications
| Country of Origin | India |
|---|---|
| Brand | Tektronix |
| Model | P6139B |
| Connector Type | BNC |
| Bandwidth | 500MHz |
| Probe type | Passive, Voltage |
| Attenuation | 10x |
| Number of Probes | 1 |
| Standards/Approvals | CE, UL |
| Safety Category Level | CAT II |
| Safety Category Voltage | 300V |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 725-6604Brand: TektronixManufacturers Part No.: P6139BDistrelec Article No.: 17628028 |
| Attenuation ratio is 1 | 10 |
Key Features
- Features a high bandwidth of DC to 500 MHz for accurate signal analysis.
- Has an attenuation ratio of 10x to scale input signals effectively.
- Input impedance of 10 MΩ with 8 pF capacitance ensures minimal circuit loading.
- Maximum input voltage of 300 V DC or RMS suitable for CAT II safety level.

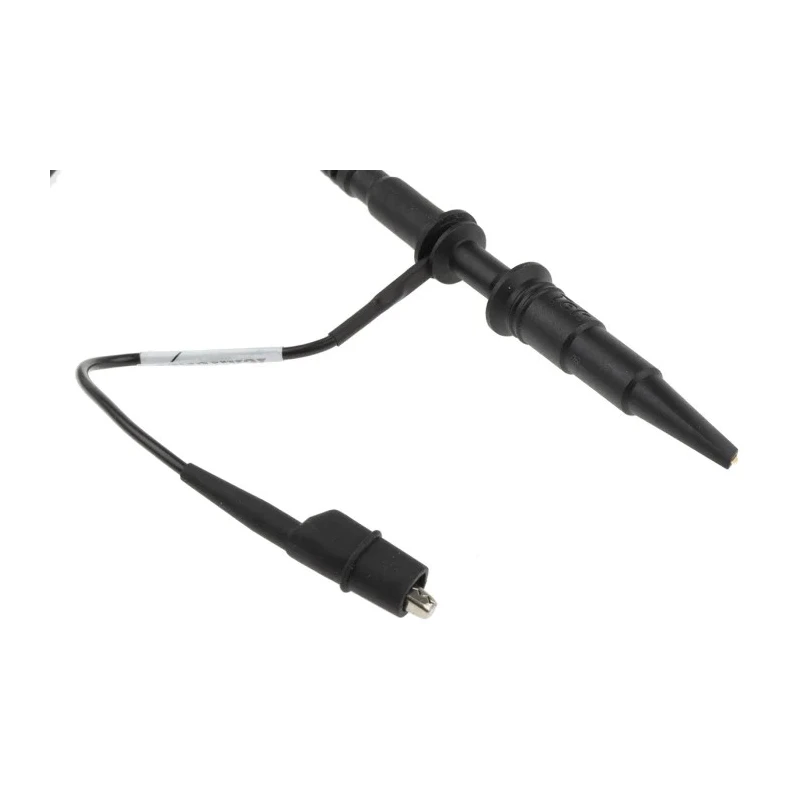

- Compact probe design with a sharp tip for probing dense and small geometry circuit elements.
- Includes replaceable probe tip cartridges for flexibility and extended use.

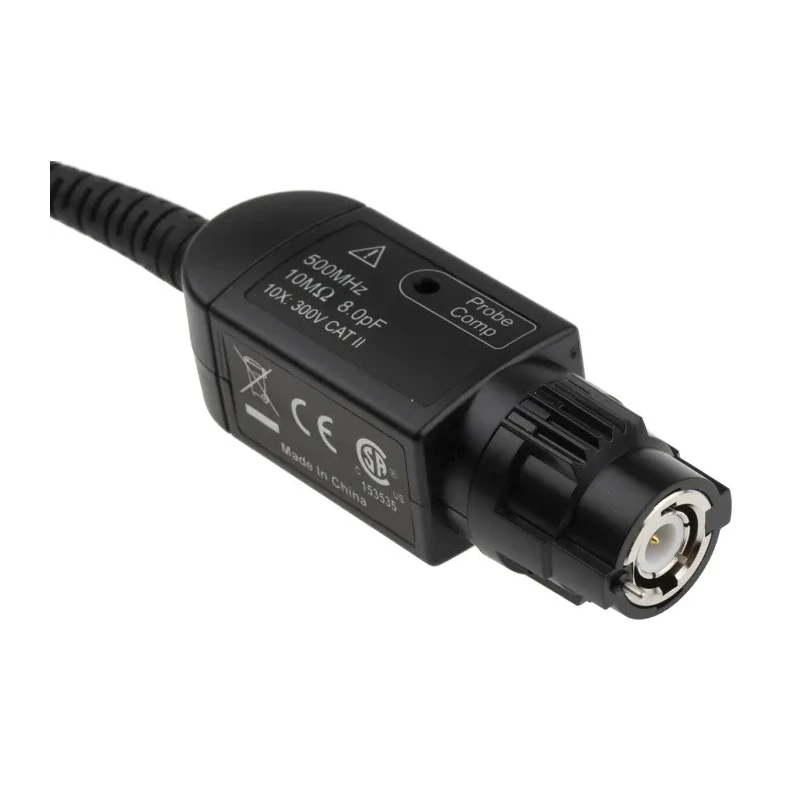

- Equipped with a 1.3 m cable length and BNC connector for straightforward oscilloscope connection.
- Wide compensation range of 7 pF to 30 pF for precise signal tuning.
Product Description
Tektronix P6139B passive voltage Oscilloscope Probe provides high bandwidth up to 500 MHz with 10x attenuation, designed for reliable and precise signal measurements in industrial and laboratory environments. This probe features a small, compact probe head and sharp tip, making it well-suited for probing tightly packed and small geometry circuit elements.
The probe's input impedance is 10 MΩ with 8 pF capacitance, ensuring minimal loading effect on the device under test. It supports a maximum input voltage of 300 V DC or RMS and is rated to CAT II safety standards, approved by CE and UL for reliability and safety.
The probe includes a wide compensation range from 7 pF to 30 pF, allowing precise adjustment and optimal signal fidelity. The 1.3 m cable length with a direct BNC connector ensures easy and standard connection to oscilloscopes with 1 MΩ inputs. The Tektronix TekProbe interface enables intelligent communication for automatic scaling and unit adjustment on compatible oscilloscopes.

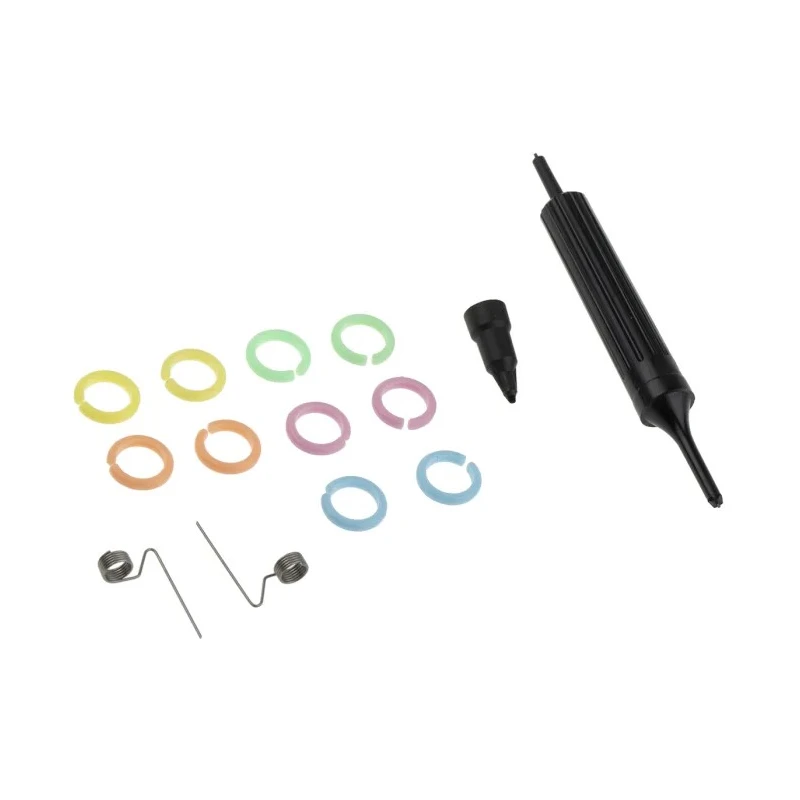

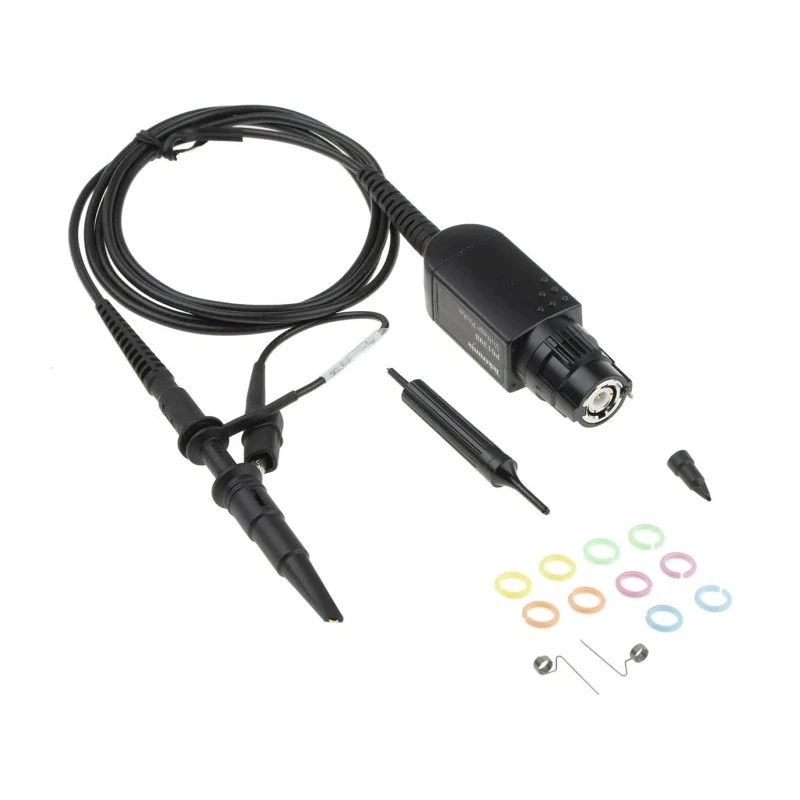

This model comes with an extensive accessory set, including 2 long ground springs, an alligator ground lead, a standard hook tip, IC cap, market band set, and an adjustment tool, providing versatility for various testing scenarios.
The P6139B is widely used in low power device testing, servicing engineering manufacturing, research and development testing, and other electronic test applications where precision and reliability are critical.
High bandwidth of DC to 500 MHz ensures accurate signal capture. 10x attenuation offers effective signal scaling. 10 MΩ input impedance minimizes circuit loading. 300 V DC/RMS maximum input voltage with CAT II safety rating.
Compact and sharp probe tip ideal for dense circuitry. Replaceable tip cartridges and accessory kit enhance usability. 1.3 m cable length with BNC connector for easy oscilloscope interfacing. Wide compensation range for optimal signal tuning.
Certified with CE and UL safety standards. Suitable for low power device testing and engineering applications. Explore more options for oscilloscopes and accessories available at EnvMart for enhanced measurement and testing solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Tektronix P6139B probe features a bandwidth of DC to 500 MHz, allowing for accurate signal analysis.
This model has an attenuation ratio of 10x, which effectively scales input signals for measurement.
The input impedance of the P6139B probe is 10 MΩ, ensuring minimal loading effect on the device under test.
The maximum input voltage for the Tektronix P6139B is 300 V DC or RMS, suitable for CAT II safety level applications.
This oscilloscope probe is equipped with a BNC connector for straightforward connection to oscilloscopes.
The probe comes with an extensive accessory set, including 2 long ground springs, an alligator ground lead, a standard hook tip, IC cap, market band set, and an adjustment tool.
The Tektronix P6139B has a cable length of 1.3 m, facilitating easy connection to oscilloscopes with 1 MΩ inputs.
This model features a wide compensation range from 7 pF to 30 pF, allowing for precise signal tuning.
The Tektronix P6139B is certified with CE and UL safety standards, ensuring reliability and safety in its use.
This oscilloscope probe is widely used in low power device testing, servicing engineering manufacturing, and research and development testing.
The Tektronix P6139B is a passive voltage probe designed for reliable and precise signal measurements.
The P6139B probe is manufactured in India.
