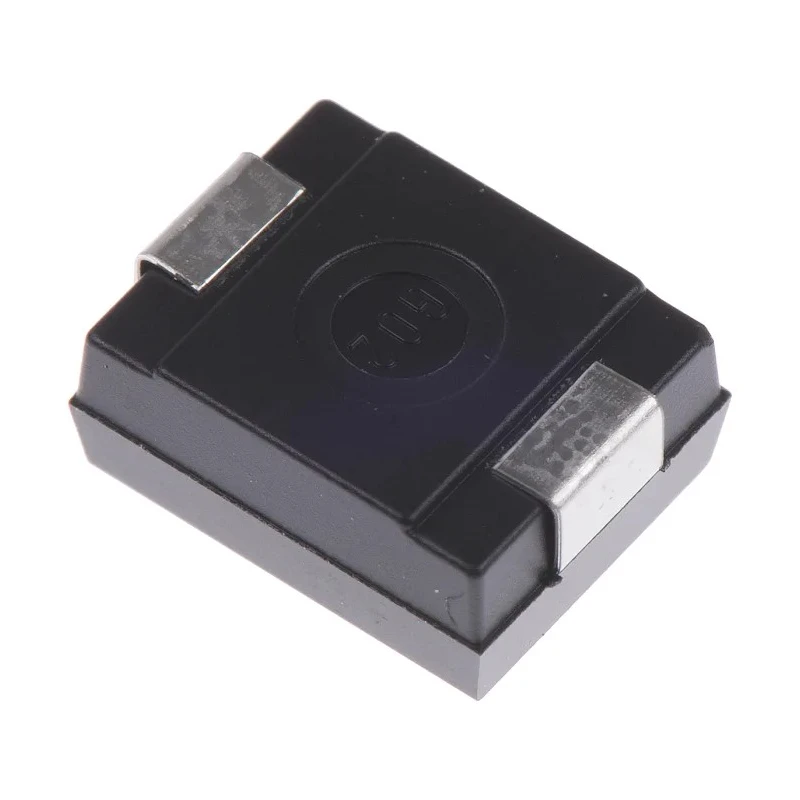

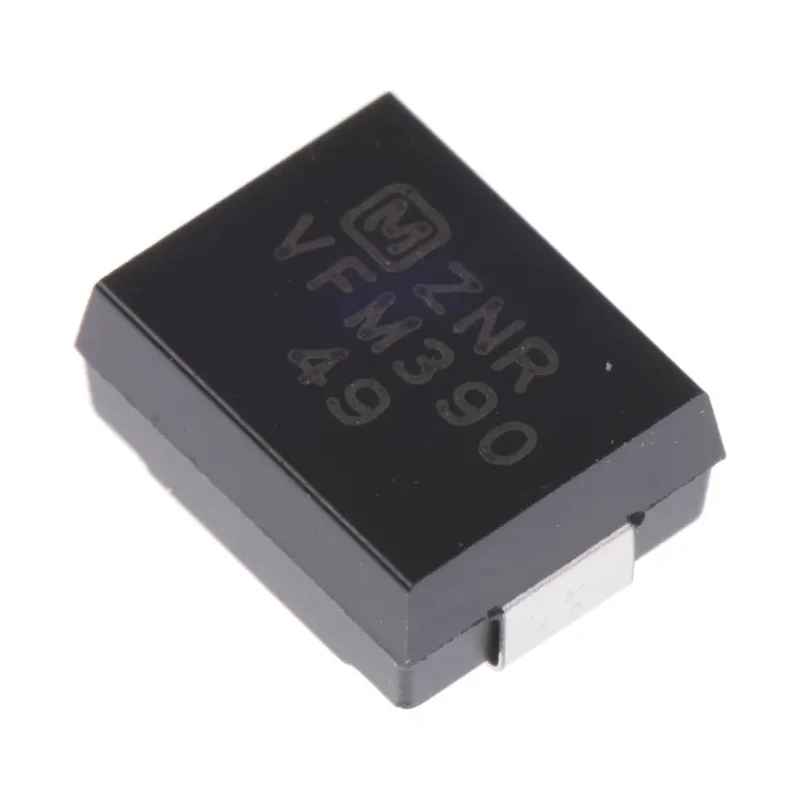

Panasonic VF Surge Absorber 2.5 A Clamping Voltage 77 V Metal Oxide Varistor ERZVF2M390
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 3.2mm |
| Length | 8mm |
| Model | ERZVF2M390 |
| Depth | 6mm |
| Series | VF |
| Energy Rating | 1.5J |
| Maximum Operating Temperature | 85°C |
| Maximum dc Voltage | 31V dc |
| Standards/Approvals | CQC, RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 721-0068PBrand: PanasonicManufacturers Part No.: ERZVF2M390 |
| Maximum AC Voltage | 25V ac |
| Clamping Voltage VC | 77V |
| Clamping Current | 2.5A |
| Maximum Surge Current | 125A |
Key Features
- The device withstands a maximum surge current of 125 A.
- Maximum AC voltage rating is 25 V AC and DC voltage rating is 31 V DC.
- Compact surface mount design with dimensions 8mm length, 3.2mm height, and 6mm depth.
- Operates reliably up to a maximum temperature of 85°C.
- Protected by a durable coating for enhanced reliability in industrial environments.
- Suitable for absorption of switching surges from relays and protection of consumer and industrial electronic equipment.
- Commonly used in communication modules such as terminal adapters, modems, and xDSL technology.
- Complies with CQC and RoHS standards ensuring quality and environmental safety.
Product Description
Panasonic ERZVF2M390 VF Surge Absorber 2.5 A Clamping Voltage 77 V is part of the Zinc-oxide Non-Linear Resistor (ZNR) series designed for effective surge protection in electronic circuits. This metal oxide Varistor offers low clamping voltage and high surge current handling, enabling superior protection against voltage spikes.
Its surface mount package is optimized for flow and reflow soldering processes, supporting automated assembly and saving board space by replacing a combination of two back-to-back zener diodes and a parallel capacitor. The device's robust protective coating ensures durability in demanding environments.
This surge absorber is engineered to handle a maximum surge current of 125 A with a clamping voltage VC of 77 V, suitable for protecting against transient voltage surges and switching surges common in relay and industrial applications.
Operating within a temperature range up to 85°C, the component ensures stable performance in various industrial, consumer, and communication equipment setups. The compact dimensions - 8mm length, 3.2mm height, and 6mm depth - facilitate efficient PCB layout design.
Typical uses include safeguarding communication modules such as terminal adapters, modems, and xDSL technology from voltage surges, ensuring longer device lifetimes and system reliability.
The device withstands a maximum surge current of 125 A. Operates at maximum AC voltage of 25 V AC and DC voltage of 31 V DC. Compact, surface mount package designed for flow and reflow soldering. Durable protective coating for enhanced reliability.
Compliant with CQC and RoHS standards. Ideal for consumer and industrial electronics surge protection. Absorbs switching surges from relays and protects communication modules. Manufactured to high Japanese quality standards.
Explore more Panasonic surge protection components and other reliable electronic components in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum surge current that this model can handle is 125 A.
This unit has dimensions of 8 mm in length, 3.2 mm in height, and 6 mm in depth.
The clamping voltage (VC) of this surge absorber is 77 V.
It operates reliably up to a maximum temperature of 85°C.
The maximum AC voltage rating is 25 V AC, and the maximum DC voltage rating is 31 V DC.
It complies with CQC and RoHS standards, ensuring quality and environmental safety.
It is commonly used for absorbing switching surges from relays and protecting consumer and industrial electronic equipment, including communication modules like terminal adapters and modems.
This model features a compact surface mount design optimized for flow and reflow soldering processes.
The energy rating of this unit is 1.5 J.
The durable protective coating ensures reliability in demanding industrial environments.
This surge absorber is part of the Zinc-oxide Non-Linear Resistor (ZNR) series, specifically the VF series.
The clamping current rating for this surge absorber is 2.5 A.
