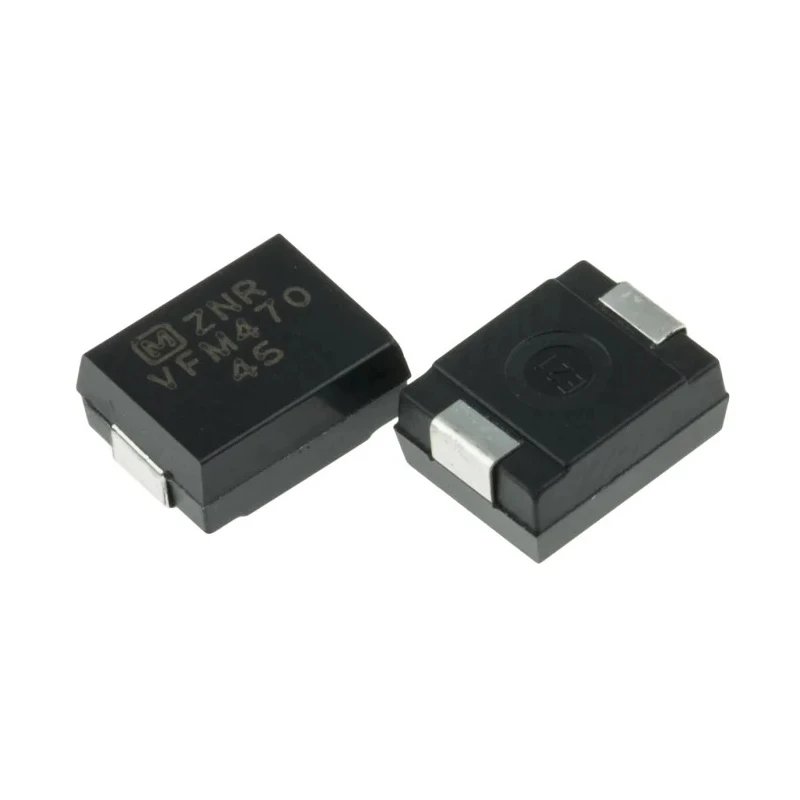

Panasonic VF Surge Absorber 2.5 A Clamping Voltage 93 V Metal Oxide Varistor ERZVF2M470

Panasonic ERZVF2M470 VF Surge Absorber 2.5 A is a metal oxide varistor designed to provide robust protection against surge currents and voltage spikes. With a clamping voltage of 93 V, this ZNR series component effectively absorbs and limits switching surges from relays and industrial equipment, thereby safeguarding sensitive electronics in both consumer and industrial applications.

The component features a compact surface mount design with dimensions of 8 mm length, 6 mm height, and 6 mm depth, making it ideally suited for modern compact circuit boards. It is engineered to withstand surge currents up to 125 A and operate reliably at temperatures up to 85°C, enhancing durability under demanding operating conditions.

Designed for use in communication equipment, including terminal adapters, modems, and xDSL systems, the ERZVF2M470 surge absorber helps maintain stable operation by limiting harmful voltage spikes. The device supports a maximum AC voltage of 30 V and a maximum DC voltage of 38 V, ensuring versatility across various electronic circuits.

The device is coated with a protective layer to withstand the rigors of flow and reflow soldering processes commonly used in automated manufacturing, protecting component reliability and board space. This saves cost and simplifies circuit design by replacing the need for multiple discrete components such as back-to-back zener diodes and parallel capacitors.

Compliance with RoHS and CQC standards ensures the product meets quality, safety, and environmental regulations, making it suitable for global industrial and electronics manufacturing markets. The surge absorber originates from Japan, reflecting Panasonic's commitment to high-quality manufacturing standards.

Designed as a Zinc-oxide Non-Linear Resistor (ZNR) metal oxide Varistor for surge absorption. Compact surface mount package dimensions: 8 mm (L) x 6 mm (H) x 6 mm (D). Maximum surge current capacity of 125 A and operational temperature up to 85°C.

Maximum AC and DC voltages rated at 30 V and 38 V respectively. Protective coating suitable for flow and reflow soldering processes. Typical applications include relay surge absorption and protection of communication modules such as modems and xDSL technology.
