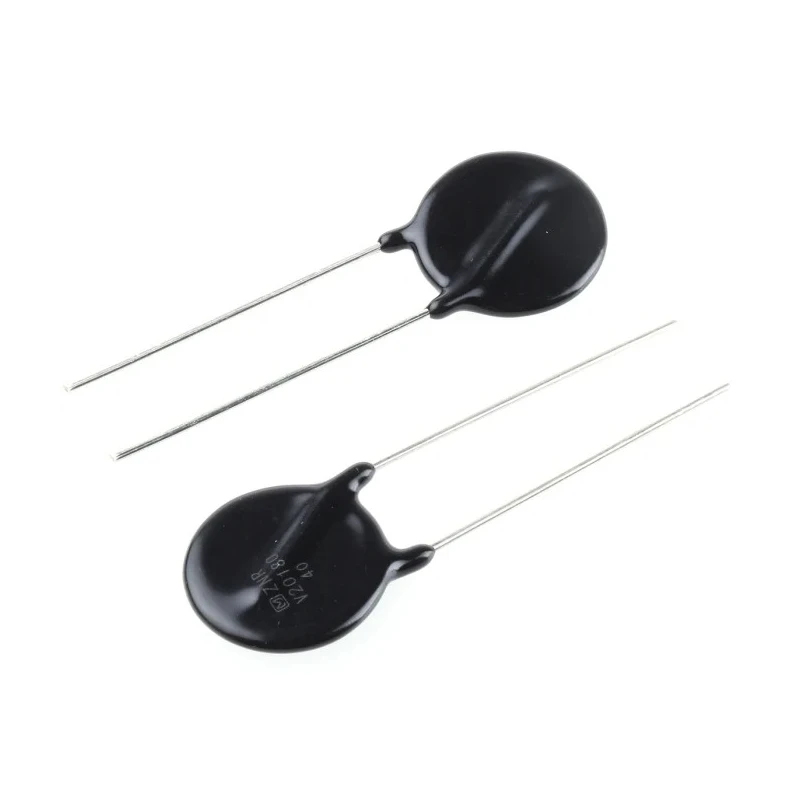

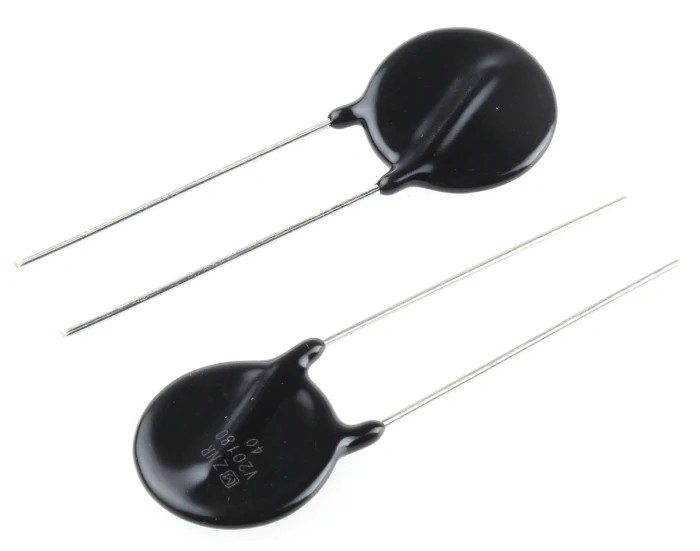

Panasonic V Surge Absorber 40nF 20A Clamping Voltage 1815 V Varistor Voltage 18 V ERZV20D180
Specifications
| Country of Origin | Japan |
|---|---|
| Diameter | 21.5mm |
| Brand | Panasonic |
| THICKNESS | 5.1mm |
| Length | 44.5mm |
| Model | ERZV20D180 |
| Depth | 5.1mm |
| Series | V |
| Energy Rating | 25J |
| Maximum Operating Temperature | 85°C |
| Capacitance | 40nF |
| Minimum Operating Temperature | -40°C |
| Maximum dc Voltage | 14V dc |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 720-9989PBrand: PanasonicManufacturers Part No.: ERZV20D180 |
| Pin Count | 2 |
| Termination Style | Crimped Lead |
| Lead Pitch | 10mm |
| Maximum AC Voltage | 385V ac |
| Clamping Voltage VC | 1815V |
| Clamping Current | 20A |
| Maximum Surge Current | 3kA |
| Varistor Voltage | 18 V |
Key Features
- Metal oxide varistor design ensures high surge current handling capacity.
- Compact 21.5mm diameter enables easy circuit integration.
- Operates reliably between -40°C and 85°C temperature range.
- Termination with crimped leads and 10mm lead pitch for secure connections.
- Complies with international standards including VDE IEC61051 and UL1449.
- Energy rating of 25 Joules provides robust protection against voltage spikes.
- Maximum AC voltage rating of 385V AC suitable for various power systems.
- Low maximum DC voltage of 14 V DC to protect sensitive electronics.
Product Description
Panasonic ERZV20D180 V Surge Absorber is a metal oxide varistor designed to protect electronic circuits from transient voltage and current surges. Featuring a capacitance of 40 nF and a clamping voltage of 1815 V, it handles clamping currents up to 20 A, making it suitable for industrial, laboratory, and electronics manufacturing applications.
This varistor has a compact 21.5 mm diameter and 44.5 mm length, with a thickness and depth of 5.1 mm each, enabling easy integration into power connectors and surge protection assemblies. The crimped lead termination with 10 mm lead pitch ensures secure and reliable electrical connections.
Engineered with a wide temperature operating range from -40°C to 85°C and an energy rating of 25 Joules, it provides durable performance under harsh conditions. Its maximum AC voltage rating of 385 V AC and maximum DC voltage of 14 V DC protect sensitive components against voltage spikes.
Manufactured in Japan, the ERZV20D180 meets various safety and quality standards including VDE IEC61051-2-2, IEC60950-1 Annex Q, UL1449, CSA C22.2 No.1, and CQC certifications, ensuring compliance for global applications.
This product is ideal for surge protection in power supplies, control panels, and electronic devices used in construction, manufacturing, and commercial environments. Metal oxide varistor design ensures high surge current handling capacity.
Compact 21.5mm diameter enables easy circuit integration. Operates reliably between -40°C and 85°C temperature range. Termination with crimped leads and 10mm lead pitch for secure connections. Complies with international standards including VDE IEC61051 and UL1449.
Energy rating of 25 Joules provides robust protection against voltage spikes. Maximum AC voltage rating of 385V AC suitable for various power systems. Low maximum DC voltage of 14 V DC to protect sensitive electronics. Supplied as a 2-pin varistor for versatile surge suppression.
Explore more surge protection components and Varistors at EnvMart for reliable, industrial-grade power protection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The clamping voltage of this model is 1815 V.
It has a maximum AC voltage rating of 385 V AC.
This unit features a capacitance of 40 nF.
The maximum surge current it can handle is 3 kA.
The dimensions are 21.5 mm in diameter, 44.5 mm in length, and 5.1 mm in thickness and depth.
It operates reliably between -40°C and 85°C.
It features crimped lead termination with a 10 mm lead pitch for secure connections.
The energy rating of this model is 25 Joules.
It complies with VDE IEC61051, UL1449, and other international standards.
The maximum DC voltage rating is 14 V DC.
This model is suitable for surge protection in power supplies, control panels, and electronic devices.
It has a pin count of 2.
