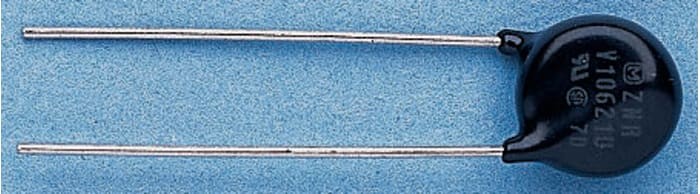

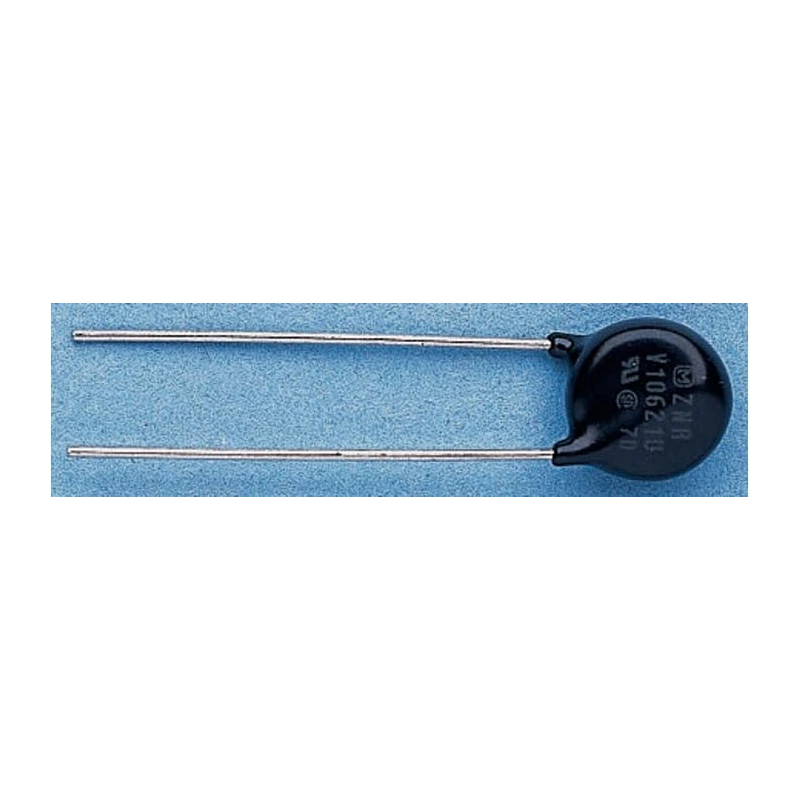

Panasonic V Surge Absorber 3.75 nF 5 A Capacitance, Clamping Voltage 1650 V, Varistor Voltage 56 V ERZV10D560

Panasonic ERZV10D560 V Surge Absorber is a metal oxide varistor designed for superior surge suppression in electronic and power protection systems. It features a capacitance of 3.75 nF and supports a clamping current of 5 A, effectively protecting devices from transient voltage spikes.

The device operates at a clamping voltage of 1650 V and has a varistor voltage rating of 56 V, withstanding maximum surge currents up to 1 kA. Its compact cylindrical form factor with an 11.5 mm diameter and length of 34.5 mm facilitates space-efficient PCB mounting. The radial taping packaging style supports automated insertion processes in manufacturing environments.

Designed for durability, the varistor functions reliably over a wide temperature range from -40°C to 85°C, accommodating diverse industrial and commercial environments. Its crimped lead termination and 7.5 mm lead pitch ensure robust electrical connectivity and compatibility with standard PCB layouts.

This Panasonic surge absorber complies with rigorous international safety and performance standards including IEC60950-1 Annex Q, VDE IEC61051-1, CQC (GB/T10193, GB/T10194, GB4943.1, GB8898), CSA C22.2 No.1, and UL1449. This guarantees reliable operation and safety in critical applications.

With an energy rating of 25J, it can absorb and dissipate significant transient energy, protecting sensitive electronic components and power circuits from damage. The component is ideal for applications in consumer electronics, industrial control systems, and power supply circuits where transient voltage protection is essential.

Manufactured in Japan, this varistor maintains stringent quality and performance standards. The Panasonic ERZV10D560 is a dependable choice for engineers and technicians aiming to enhance system longevity and safety against voltage surge threats.

Compact metal oxide Varistor design with 11.5 mm diameter. High surge current capability of 1 kA ensures effective transient suppression. Wide operating temperature range from -40°C to 85°C. Radial taping packaging for easy automated insertion.

Terminated with crimped leads and 7.5 mm lead pitch for secure connections. Energy rating of 25J suitable for protecting sensitive circuitry. Compliance with multiple international safety standards including IEC60950-1 and UL1449.

Suitable for industrial, electronic, and power protection applications. Manufactured in Japan ensuring high-quality construction and performance. Explore a wide selection of surge protection components and other electronic parts at EnvMart for your industrial and commercial needs.
