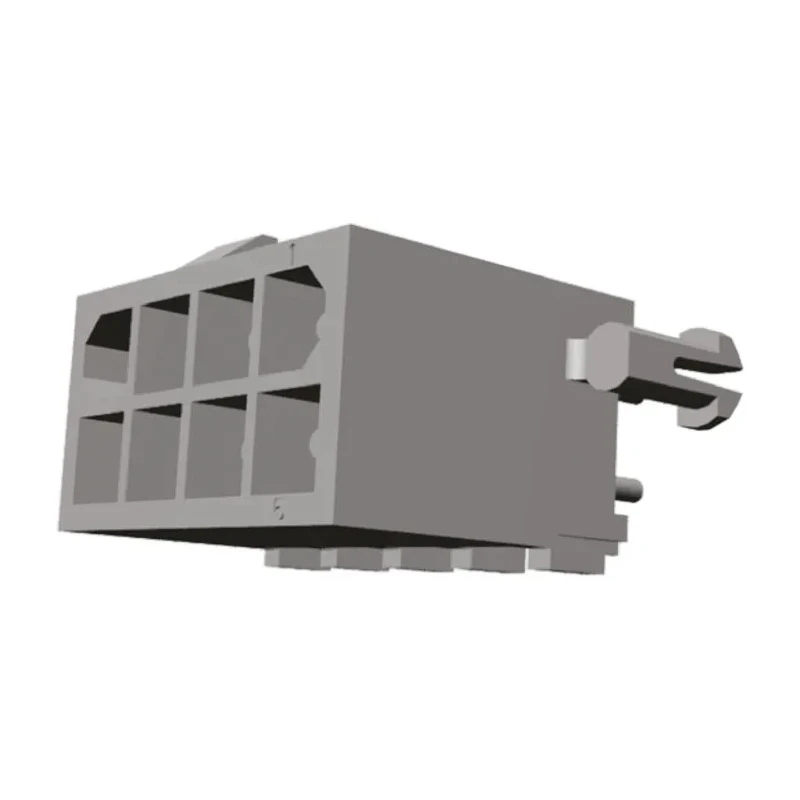

TE Connectivity Mini-Universal MATE-N-LOK Series Straight Through Hole PCB Header, 8 Contact(s), 4.14 mm Pitch, 2 1-794073-1
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 600V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 9.5A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | Mini-Universal MATE-N-LOK |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -20°C |
| Number of Rows | 2 |
| Pitch | 4.14mm |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 720-2304Brand: TE ConnectivityManufacturers Part No.: 1-794073-1 |
| Contact Plating | Gold |
| Number of Contacts | 8 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Features an 8-contact male pin configuration for efficient electrical connections.
- Constructed with a durable nylon housing and brass contacts with gold plating.
- Operates at a current rating of 9.5 amps and voltage rating of 600 volts.
- Includes a positive locking latch mechanism to ensure secure mating and board retention.
- Suitable for operating temperatures from -20°C to 105°C for versatile applications.
- Designed for through-hole mounting with a 4.14 mm row pitch for PCB integration.
- Shrouded connector system for enhanced protection and insulation.
- Ideal for industrial, electronic assembly, and power connector usage.
Product Description
TE Connectivity 1-794073-1 Mini-Universal MATE-N-LOK Series PCB Header is a high-quality, 8-contact male pin connector designed for reliable wire-to-board electrical connections. Featuring a robust nylon housing rated UL94V-0 and brass contacts plated with gold, this connector ensures durability and excellent conductivity. The connector is configured with a 4.14 mm pitch and arranged in 2 rows, making it suitable for precise PCB mounting through a through-hole method.
This PCB header supports a current rating of 9.5 A and a voltage rating of 600 V, making it suitable for various industrial and electronic power applications. The operating temperature range from -20°C to 105°C provides versatility in various environmental conditions. The shrouded design includes a positive locking latch mechanism and board locks, ensuring secure mating and retention on the PCB.
TE Connectivity's MATE-N-LOK connectors are widely used in manufacturing, electronics assembly, power distribution, and industrial control systems. This model 1-794073-1 provides a dependable connection solution with easy solder termination and enhanced mechanical stability. Compatible mating connectors are available within the Mini-Universal MATE-N-LOK plug housings with socket contacts.
Overall, this PCB Header facilitates secure, high-performance connections in demanding applications requiring precise and dependable wire-to-board interfacing. Features an 8-contact male pin configuration for efficient electrical connections.
Constructed with a durable nylon housing and brass contacts with gold plating. Operates at a current rating of 9.5 amps and voltage rating of 600 volts. Includes a positive locking latch mechanism to ensure secure mating and board retention.
Suitable for operating temperatures from -20°C to 105°C for versatile applications. Designed for through-hole mounting with a 4.14 mm row pitch for PCB integration. Shrouded connector system for enhanced protection and insulation.
Ideal for industrial, electronic assembly, and power connector usage. Explore more TE Connectivity products and MATE-N-LOK series connectors on EnvMart for your electronic component and power connector needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at a current rating of 9.5 amps and a voltage rating of 600 volts, making it suitable for various industrial and electronic power applications.
The connector features a nylon housing and brass contacts plated with gold, ensuring durability and excellent conductivity.
It has a pitch of 4.14 mm and is configured with 8 contacts, arranged in 2 rows for precise PCB mounting.
This model is suitable for operating temperatures ranging from -20°C to 105°C, allowing for versatile applications in different environments.
It is designed for through-hole mounting, facilitating easy integration into printed circuit boards.
Yes, it includes a positive locking latch mechanism to ensure secure mating and board retention during operation.
This PCB header utilizes solder termination for reliable electrical connections.
The connector is designed with a straight orientation for straightforward installation and connection.
This model features a shrouded design, which provides enhanced protection and insulation for the electrical connections.
It is ideal for industrial, electronic assembly, and power connector usage, offering a dependable connection solution in demanding environments.
The country of origin for this PCB header is India.
This PCB header is part of the Mini-Universal MATE-N-LOK connector system, designed for wire-to-board connections.
