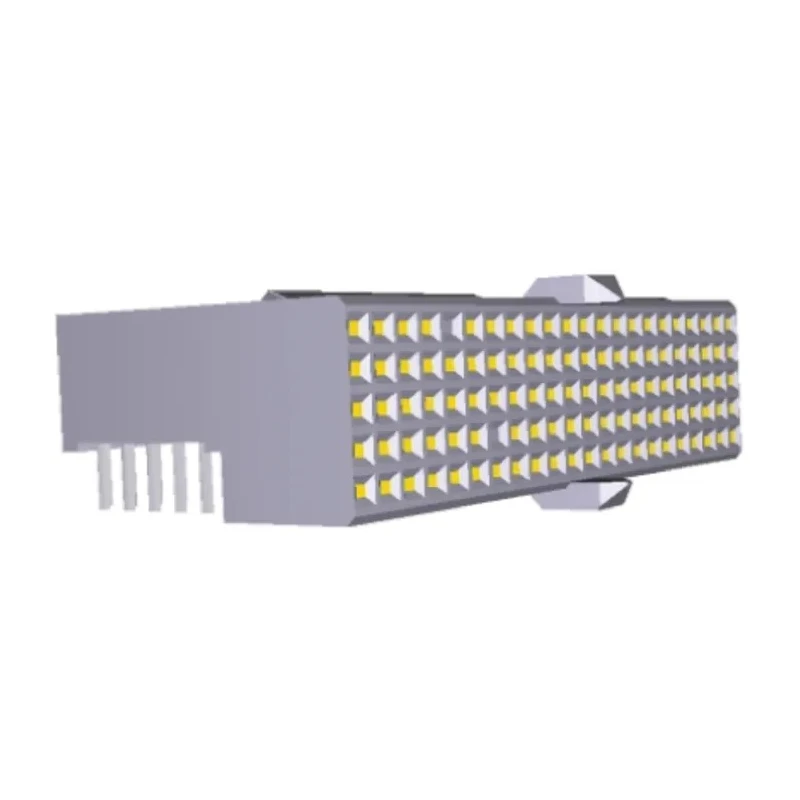

TE Connectivity Z-PACK HM 2 mm Pitch Hard Metric Type B Backplane Connector Right Angle Female 95 Contacts 500V ac 352171-1

TE Connectivity 352171-1 Backplane Connector is a 2 mm pitch Hard Metric Type B connector designed for high-reliability electronic interconnections. This right angle female connector offers 95 contacts arranged in 19 columns and 5 rows, making it ideal for complex backplane or rack-mount applications.

The housing material is durable polyethylene terephthalate (PET) which complies with UL 94V-0 flame retardant standard, ensuring safety and long-term performance in industrial environments. Contacts are constructed from phosphor bronze and plated with gold over nickel to provide excellent electrical conductivity and resistance to corrosion.

This connector supports an operating voltage of 500V AC and a current rating of 1.5 amperes, suitable for power and signal transmission in a variety of industry sectors including telecommunications, industrial automation, data communications, and computing hardware.

The right angle orientation with through-hole solder termination provides a secure and reliable PCB mounting solution, supporting mechanical robustness and ease of assembly. The operational temperature range spans from -55°C to 125°C, accommodating diverse environmental conditions.

Part of the Z-PACK HM series, this connector incorporates standard crosstalk shielding, facilitating improved signal integrity for high-speed data transmissions. It is designed to connect fixed and free boards within backplane or backpanel assemblies, enabling modular and scalable system designs.

Designed as a right angle female Backplane Connector suitable for PCB applications. Features 19 columns and 5 rows with a total of 95 contacts. Supports operating voltage up to 500V AC and current rating of 1.5A. Constructed with polyethylene terephthalate housing for durability and UL 94V-0 compliance.

Contact material is phosphor bronze with gold over nickel plating for optimal conductivity and corrosion resistance. Mount type is through hole with solder termination for secure PCB mounting. Operates reliably within -55°C to 125°C temperature range.

Z-PACK HM series incorporates standard crosstalk shielding for improved signal integrity. Suitable for industrial electronics, telecommunications, and computing equipment backplane connections. Provides a standardized interface for fixed and free board connections in complex assemblies.

This connector is commonly used in industrial, telecommunications, and manufacturing applications where reliable and robust board-to-board connections are needed. It enables modular interfacing in equipment racks and facilitates maintenance and upgrades in complex electronic systems.
