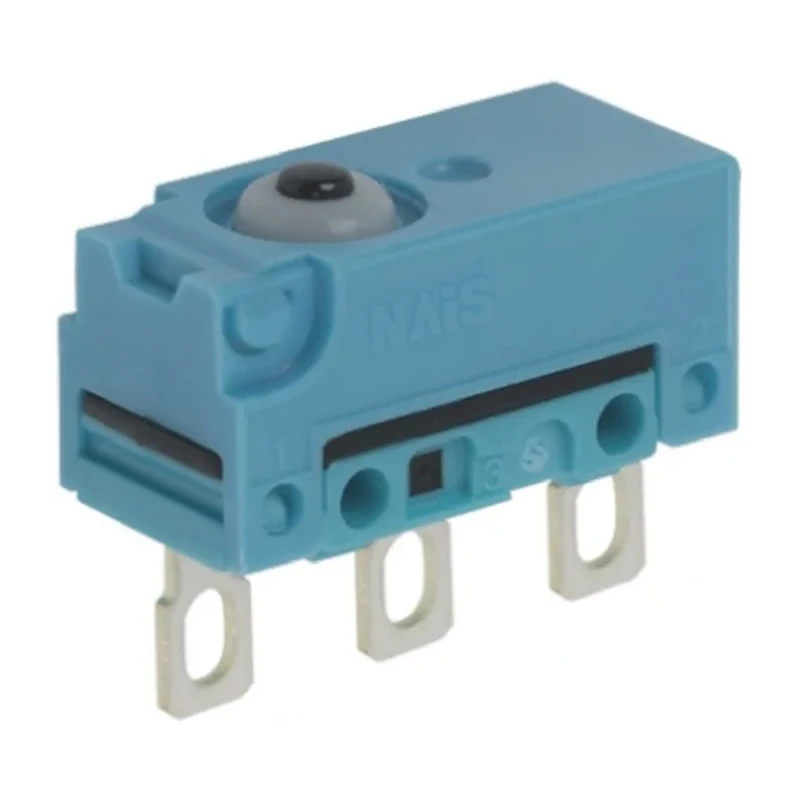

Panasonic Plunger Micro Switch Solder Terminal 1A 125 V ac 30 V dc SPDT IP50 ABJ241040

Panasonic ABJ241040 plunger micro switch with solder terminal is a high-quality ultra-miniature switch suitable for precise electrical control applications in industrial, automation, and electronic sectors. This model is rated for 1 ampere contact current with voltage ratings of 125 V AC and 30 V DC. The switch features a SPDT (Single Pole Double Throw) contact configuration, providing versatile switching options.

The actuator type is a plunger designed for accurate and consistent switch actuation with an operating force of 1.23 newtons. It operates reliably within a wide temperature range from -40°C to 85°C. The switch has an IP50 ingress protection rating, safeguarding against dust ingress but without water protection, making it suited for controlled indoor industrial environments.

Manufactured in Japan, this switch offers a robust mechanical life of one million operations, attesting to its longevity in demanding applications. The solder terminal type ensures secure and stable electrical connections, ideal for PCB mounting. The switch complies with major international standards including RoHS, CSA, and UR, supporting safe and environmentally friendly usage.

Typical applications of the ABJ241040 micro switch include industrial automation systems, control panels, machinery safety interlocks, and household appliances. The compact ultra-miniature form factor allows installation in tight spaces without sacrificing performance or reliability.

This micro switch operates with a plunger actuator type for precise switching action. The solder terminal allows secure and reliable electrical connections. It supports a switch contact current of 1 ampere for various low-power applications.

Contact configuration is Single Pole Double Throw (SPDT) for versatile circuit design. IP50 rated for protection against dust ingress but not water-resistant. Operating force is low at 1.23 N ensuring sensitive actuation.

Designed to operate reliably between -40°C and 85°C ambient temperatures. Suitable for both AC voltage up to 125 V and DC voltage up to 30 V applications. Classified as an ultra miniature type microswitch ideal for compact installations.

Mechanical life rated at 1,000,000 operations for durability in industrial use. Complies with RoHS, CSA, and UR standards ensuring safety and environmental compliance. Explore our wide range of Micro Switches and electrical components at EnvMart to find the perfect solution for your industrial automation and control requirements.
