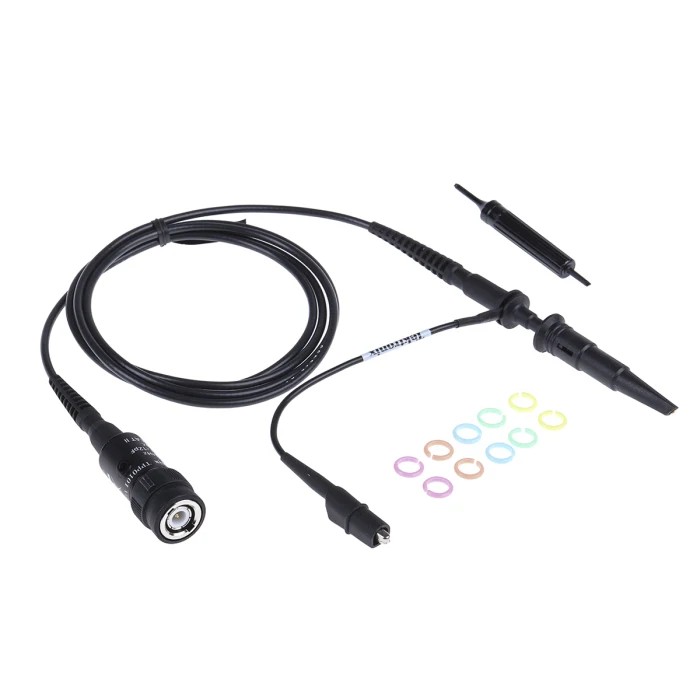

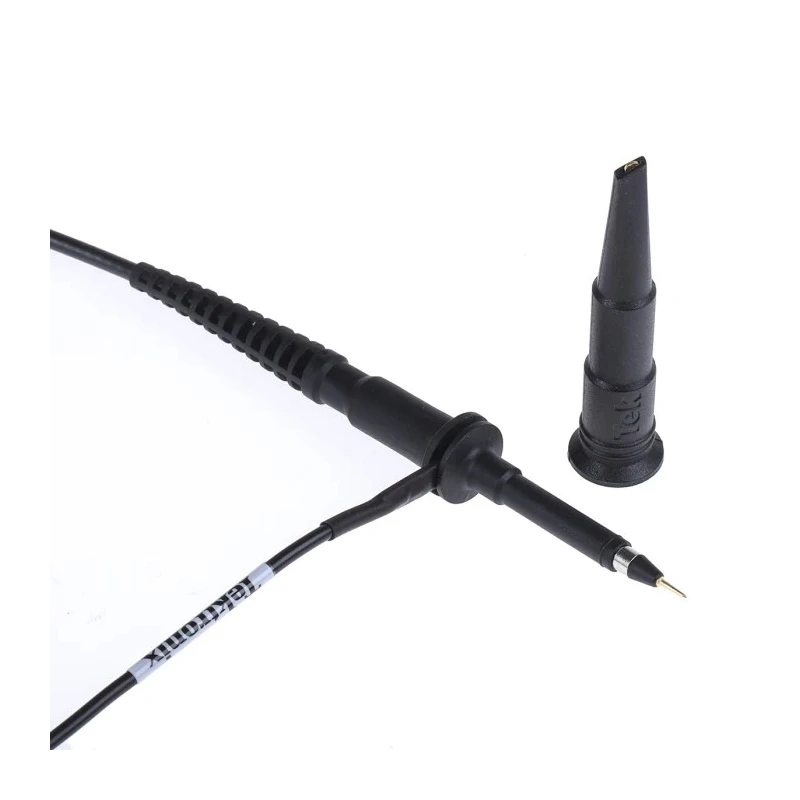

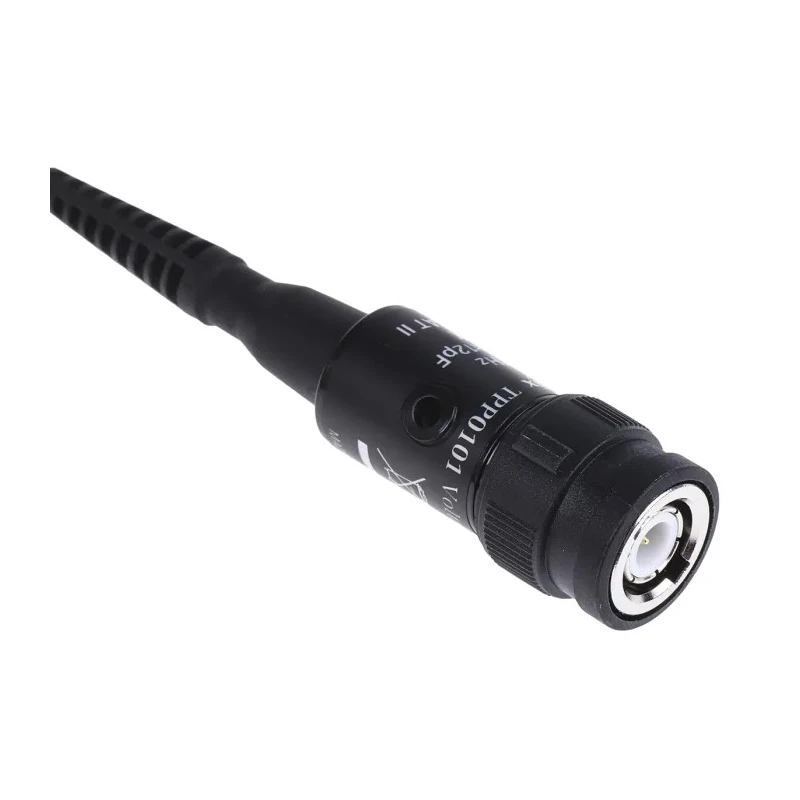

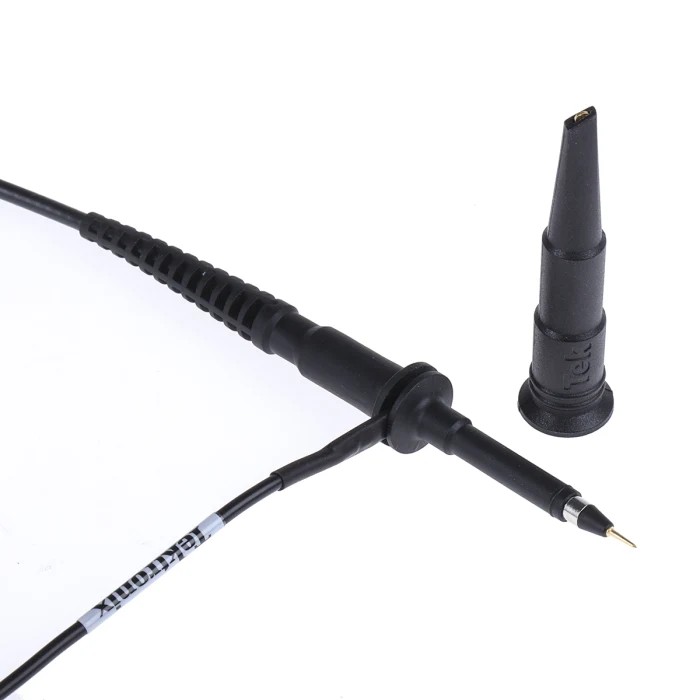

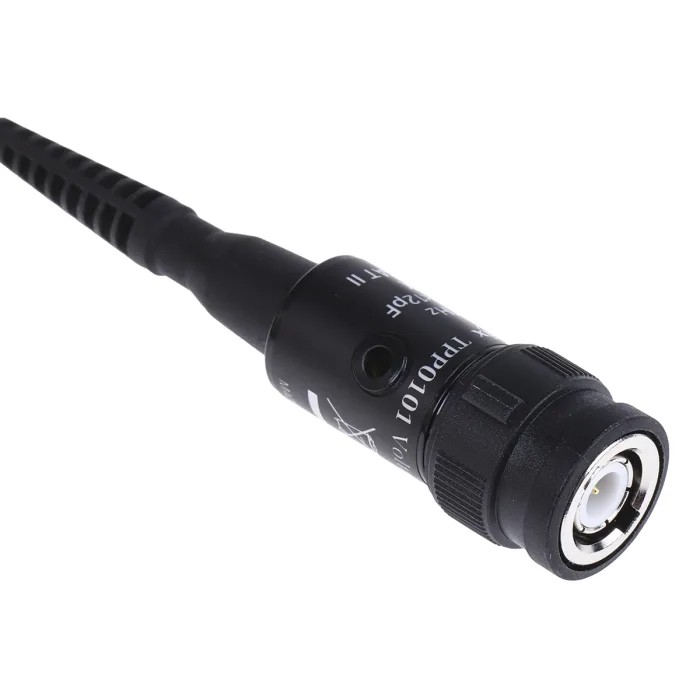

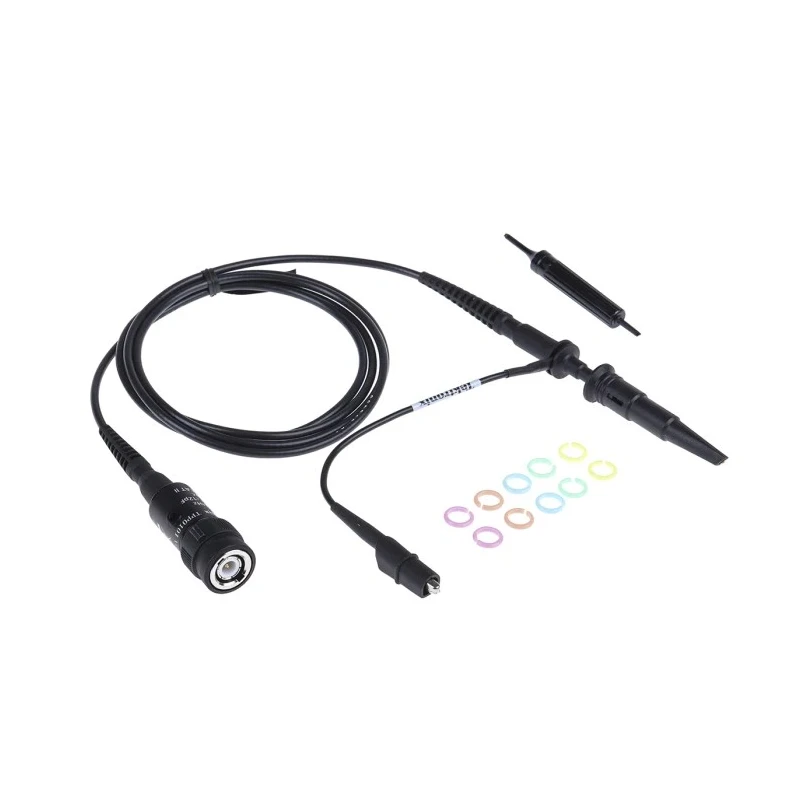

Tektronix TPP Series Passive Voltage Oscilloscope Probe 10x Attenuation 100 MHz Bandwidth BNC Connector TPP0101
Specifications
| Country of Origin | China |
|---|---|
| Brand | Tektronix |
| Model | TPP0101 |
| Connector Type | BNC |
| Bandwidth | 100MHz |
| Series | TPP |
| Probe type | Passive, Voltage |
| Rise Time | 3.5ns |
| Attenuation | 10x |
| Safety Category Level | CAT II |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 715-8733Brand: TektronixManufacturers Part No.: TPP0101Distrelec Article No.: 176-28-144 |
| Maximum Common Mode Input Voltage | 300V |
| Attenuation ratio is 1 | 10 |
| IEC 61010-031/A1 | 2008 |
| Standards/ApprovalsUL 6101003, IEC 61010031/A1 | 2008, CAN/CSA C22.2 No. 6101003107, IEC 61010031 |
Key Features
- Suitable for use with BNC oscilloscopes with 1 MΩ/13 pF input impedance.
- Features a compensation trimmer for optimal matching to instruments.
- Provides a maximum input voltage of 300 VRMS CAT II for safe operation.
- Rise time of 3.5 ns supports accurate signal capture.
- Probe length is 1.3 meters for flexible placement.
- Bandwidth from DC to 100 MHz allows for a wide range of applications.
- High input resistance of 10 MΩ preserves circuit integrity during measurements.
- Designed for low frequency measurements including telecom and power supply testing.
Product Description
Tektronix TPP0101 is a passive voltage Oscilloscope Probe designed for BNC connector oscilloscopes featuring 10x attenuation and a bandwidth of 100 MHz. It is ideal for precise low frequency signal measurements in industrial, laboratory, and electronic testing environments.
The probe has an input impedance of 10 MΩ and 13 pF, ensuring minimal circuit loading. Its rise time of 3.5 ns enhances the accuracy of signal capture, particularly useful in telecom and computer hardware diagnostics.
Safety is reinforced with a maximum common mode input voltage rating of 300 VRMS CAT II, making it suitable for controlled environments and general purpose testing. The probe length of 1.3 meters provides versatility in probe placement and setup convenience.
Each probe features compensation trimmers for fine-tuning attenuation match to different instruments, ensuring reliable and consistent measurement results. Compatible with oscilloscopes with 1 MΩ/13 pF input. 10x attenuation with 10 MΩ input resistance.
Bandwidth DC to 100 MHz suitable for various test applications. 300 VRMS maximum common mode voltage rating ensures safe operation. 3.5 ns rise time for high fidelity signal capture. Length of 1.3 meters for flexible use cases.
Passive design reduces power consumption during measurements. Ideal for telecom, power supply, and amplifier testing.
Tektronix TPP series probes are known for their durability and reliability in diverse industrial and laboratory use. This model TPP0101 is manufactured in China and complies with UL 61010-031, IEC 61010-031/A1:2008, and CAN/CSA C22.2 No. 61010-031 certifications, ensuring rigorous safety and quality standards.
Explore Tektronix oscilloscopes and accessories at EnvMart for comprehensive measurement solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Tektronix TPP0101 probe has a bandwidth of 100 MHz, allowing for a wide range of applications in signal measurement.
This model supports a maximum common mode input voltage of 300 VRMS CAT II, ensuring safe operation during measurements.
The TPP0101 features a BNC connector type, making it compatible with BNC oscilloscopes.
The rise time of this probe is 3.5 ns, which supports accurate signal capture for various testing applications.
The TPP0101 has an input impedance of 10 MΩ and 13 pF, which helps minimize circuit loading during measurements.
The probe length is 1.3 meters, providing flexibility in placement and setup during testing.
This passive voltage probe is designed for low frequency measurements, including applications in telecom and power supply testing.
Yes, the TPP0101 features a compensation trimmer for optimal matching to different instruments, ensuring reliable measurement results.
This model complies with UL 61010-031, IEC 61010-031/A1:2008, and CAN/CSA C22.2 No. 61010-031 certifications, ensuring rigorous safety and quality standards.
The attenuation ratio for this probe is 10x, which allows for effective voltage measurement without overloading the oscilloscope.
The TPP0101 is a passive voltage oscilloscope probe, suitable for various testing environments.
Yes, the TPP0101 is suitable for general purpose testing in controlled environments due to its safety rating and specifications.
