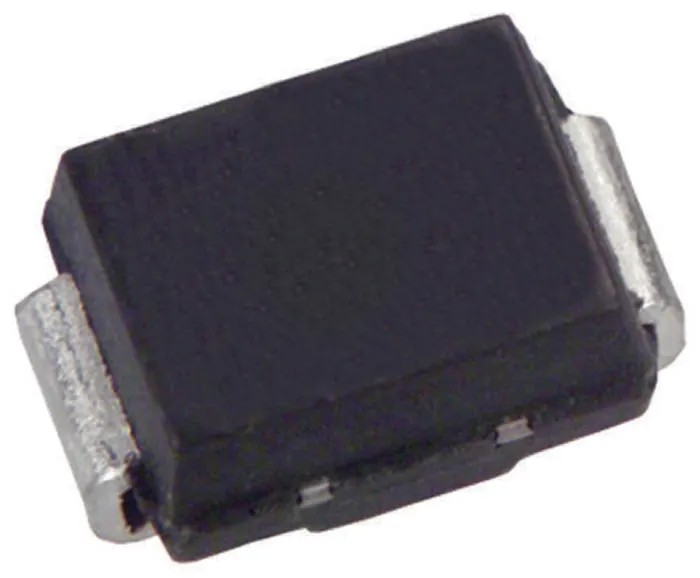

STMicroelectronics 1-Element Bi-Directional TVS Diode, 600 W, Surface Mount DO-214 SMBJ10CA-TR
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 2.45mm |
| Length | 4.6mm |
| Model | SMBJ10CA-TR |
| Width | 3.95mm |
| Mount Type | Surface |
| Series | SMBJ |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214 |
| Minimum Operating Temperature | -55°C |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 714-7137PBrand: STMicroelectronicsManufacturers Part No.: SMBJ10CA-TR |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 21.7V |
| Diode Configuration | Single |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 11.1V |
| Maximum Reverse Stand-off Voltage Vwm | 10V |
| Peak Pulse Power Dissipation Pppm | 600W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 184A |
| Maximum Reverse Leakage Current | 200nA |
Key Features
- Single diode configuration for bi-directional voltage protection.
- Maximum reverse stand-off voltage of 10 V ensures effective clamping.
- Compact surface mount DO-214 package with dimensions 4.6 mm length, 3.95 mm width, and 2.45 mm height.
- Operating temperature range from -55°C to 150°C for reliable performance.
- Peak pulse current capability of 184 A to handle high transient events.
- Minimum breakdown voltage of 11.1 V with a clamping voltage of 21.7 V.
- Low maximum reverse leakage current of 200 nA minimizes power loss.
- Designed for use in electronic circuits requiring protection from voltage spikes.
Product Description
STMicroelectronics SMBJ10CA-TR is a high-performance 1-element bi-directional Transient Voltage Suppressor (TVS) diode designed to protect sensitive electronic components from transient voltage spikes. The device features a peak pulse power dissipation rating of 600 W, housed in a compact surface mount DO-214 package suitable for automated assembly processes.
This TVS diode offers bi-directional voltage protection with a single diode configuration, making it ideal for applications that require clamping of both positive and negative voltage transients. The maximum reverse stand-off voltage is 10 V, with a minimum breakdown voltage of 11.1 V and a clamping voltage of 21.7 V, ensuring effective suppression of voltage spikes.
The SMBJ10CA-TR supports high transient current pulses up to 184 A and operates reliably across a wide temperature range from -55°C to 150°C. Its low maximum reverse leakage current of 200 nA results in minimal power loss and increased efficiency. The device’s package dimensions are 4.6 mm in length, 3.95 mm in width, and 2.45 mm in height, making it suitable for compact PCB designs.
Engineered for semiconductor and electronics applications, this TVS diode provides robust and reliable protection for circuits used in industrial, commercial, automotive (non-automotive standard), and consumer electronics. Its surface mount design allows integration in modern automated manufacturing lines, enhancing production efficiency.
Package contents include one SMBJ10CA-TR device. The series SMBJ is well known for transient voltage suppression capabilities in discrete semiconductor components. Single diode configuration for bi-directional voltage protection.
Peak pulse power dissipation of 600 W ensures high transient suppression. Compact surface mount DO-214 package suitable for PCB assembly. Wide operating temperature from -55°C to 150°C for durability. Handles peak pulse current up to 184 A for high energy events.
Minimum breakdown voltage of 11.1 V with clamping voltage 21.7 V. Low maximum reverse leakage current reduces power consumption. Reliable protection for sensitive electronic circuits from voltage transients. Discover more semiconductors like the SMBJ10CA-TR and other TVS Diode solutions at EnvMart for your industrial, automotive, and electronic manufacturing needs.
