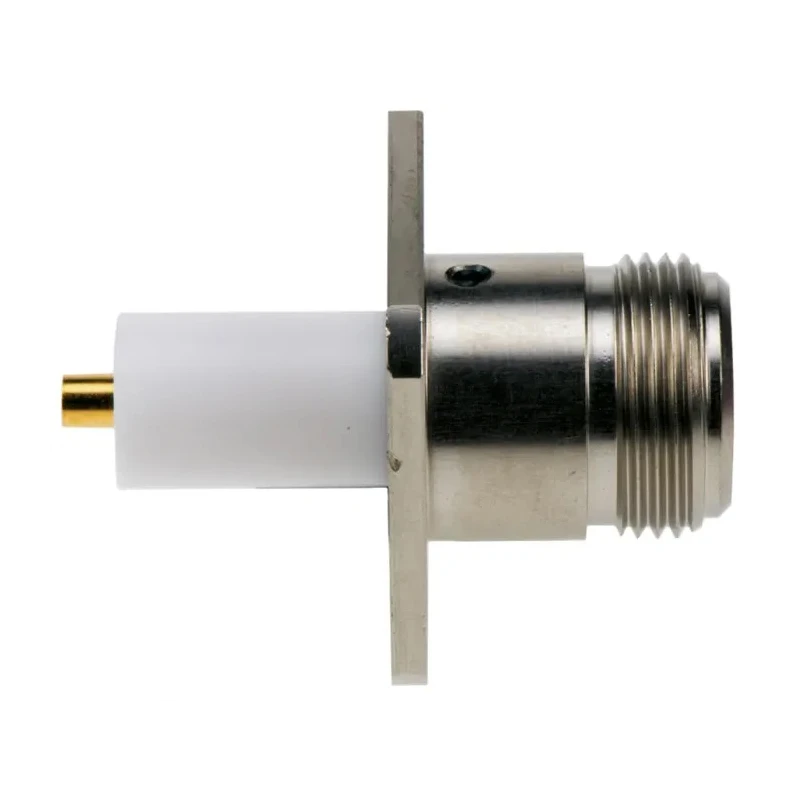

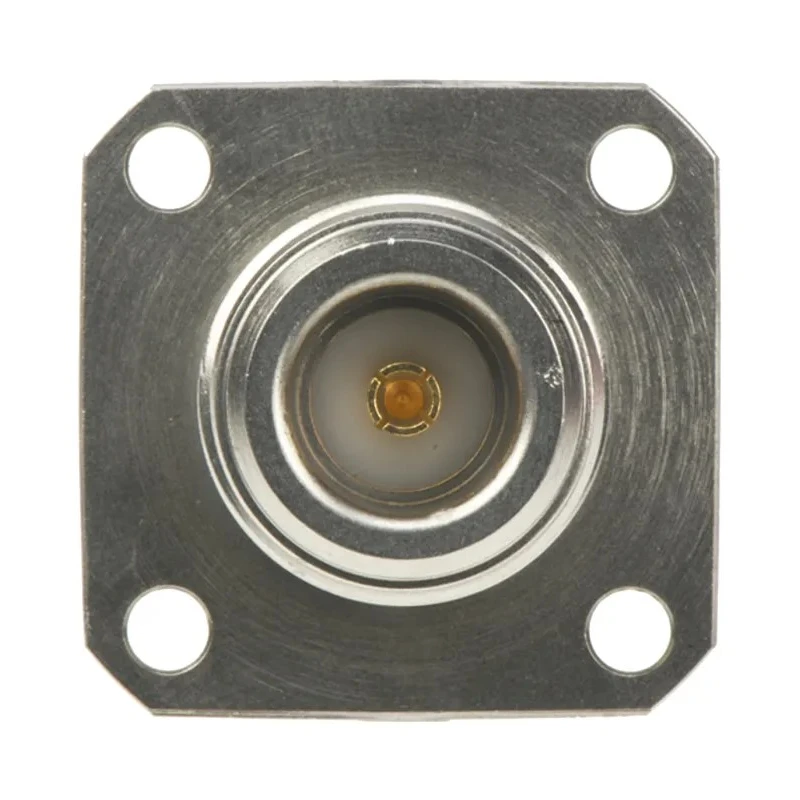

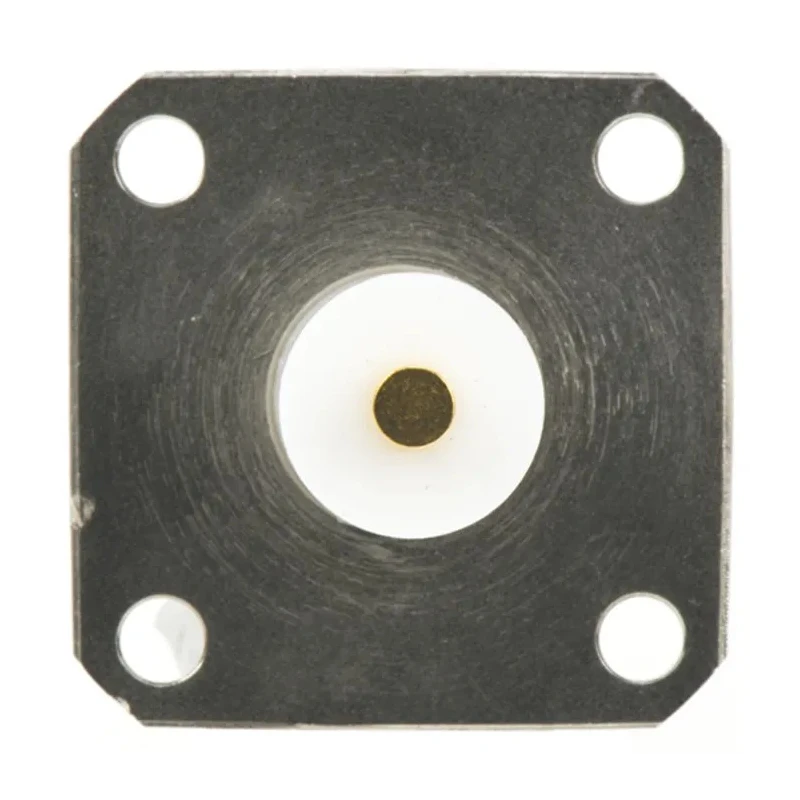

TE Connectivity N Series Coaxial Connector Panel Mount Female N Connector 50 Ω Straight Body Solder 1057290-1
Specifications
| Country of Origin | India |
|---|---|
| Size | Standard |
| Brand | TE Connectivity |
| Orientation | Straight |
| Mount Type | Panel Mount |
| Operating Frequency | 11GHz |
| Contact Material | Beryllium Copper |
| Series | N |
| Termination Type | Solder |
| Maximum Operating Temperature | 165°C |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 713-0984PBrand: TE ConnectivityManufacturers Part No.: 1057290-1 |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | N Connector |
| Body Plating | Nickel |
Key Features
- This connector is designed for panel mount applications featuring a nickel-plated brass body.
- Female contact gender and gold-plated beryllium copper contacts ensure low signal loss and corrosion resistance.
- It operates within a temperature range of -65°C to 165°C, suitable for harsh environments.
- The flange mount PCB jack features four mounting holes for secure installation.
- The product complies with MIL type specifications for rugged reliability.
- Standard size and normal polarity design provide compatibility with existing RF systems.
- Solder termination provides strong mechanical and electrical contact assurance.
Product Description
TE Connectivity 1057290-1 N Series Coaxial Connector Panel Mount Female N Connector is a high-quality RF component designed for industrial, laboratory, and communication equipment requiring reliable transmission with minimal signal degradation. Featuring a standard 50 Ω impedance and straight body solder termination, this connector delivers consistent performance up to 11 GHz frequency.

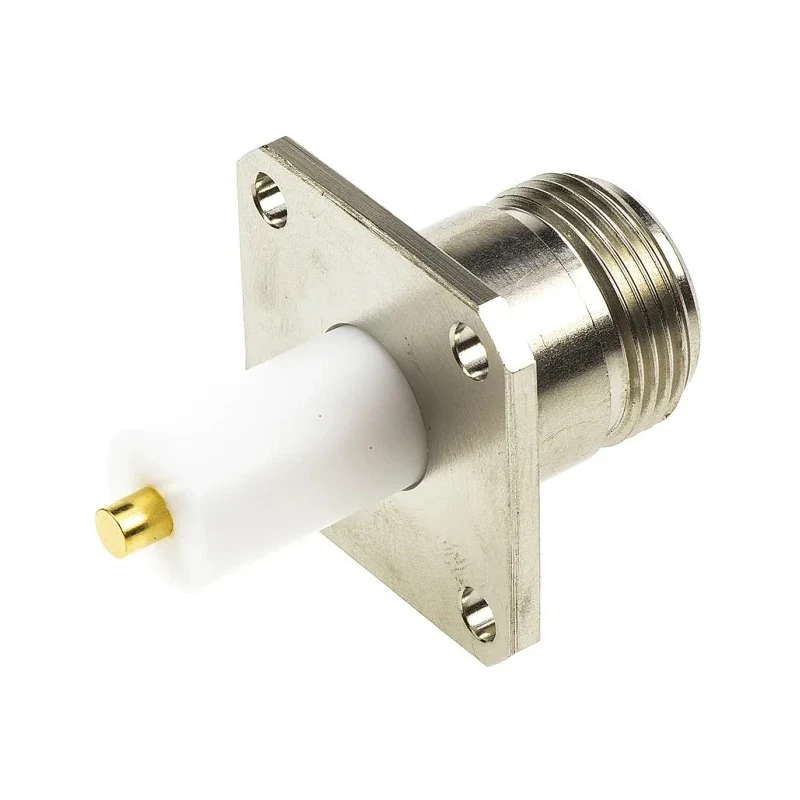

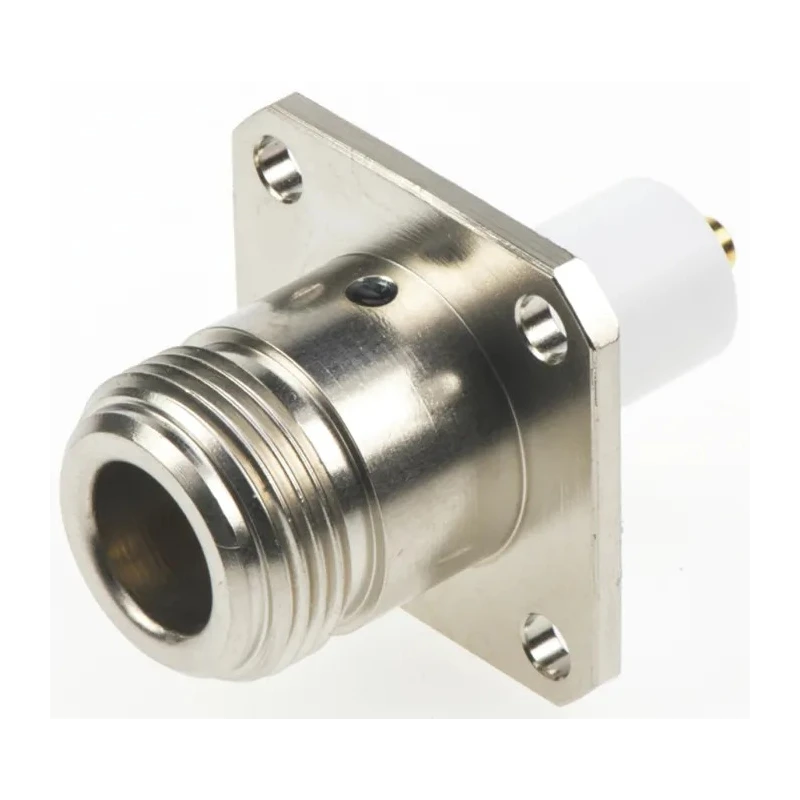

This panel mount connector incorporates a nickel-plated brass body with gold-plated beryllium copper contacts to enhance durability and electrical conductivity. It includes a flange mount PCB jack with four mounting holes facilitating stable mechanical connection and ease of integration into various electronic assemblies.
Functional across a wide operating temperature range from -65°C to 165°C, it is optimized for use in extreme environmental conditions common in industrial and commercial RF applications. The female connector gender and normal polarity ensure compatibility with standard coaxial cabling systems.
The TE Connectivity N series connectors adhere to MIL type standards, providing ruggedness and reliability demanded in professional and military-grade device designs. Solder termination technology enhances performance by maintaining high-quality electrical and mechanical bonds.
This connector is designed for panel mount applications featuring a nickel-plated brass body. Female contact gender and gold-plated beryllium copper contacts ensure low signal loss and corrosion resistance. It operates within a temperature range of -65°C to 165°C, suitable for harsh environments.
The flange mount PCB jack features four mounting holes for secure installation. The product complies with MIL type specifications for rugged reliability. Standard size and normal polarity design provide compatibility with existing RF systems.
Solder termination provides strong mechanical and electrical contact assurance.
This coaxial connector is indispensable for RF communication systems, test equipment, signal transmission lines, and other applications in electronics manufacturing and maintenance. Its robust build and precise engineering ensure reliable long-term operation in demanding usage scenarios such as telecom, radar, aerospace, and instrumentation.
Explore additional TE Connectivity Coaxial Connectors and adapters on EnvMart for all your professional electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at a maximum frequency of 11 GHz, ensuring reliable signal transmission in RF applications.
It operates within a temperature range of -65°C to 165°C, making it suitable for harsh environments.
This connector features a solder termination type, which provides strong mechanical and electrical contact assurance.
The connector has a nickel-plated brass body and gold-plated beryllium copper contacts, enhancing durability and conductivity.
It is designed for panel mount applications and includes a flange mount PCB jack with four mounting holes for secure installation.
This model has a standard impedance rating of 50 Ω, compatible with existing RF systems.
The connector features a female contact gender, ensuring compatibility with standard coaxial cabling systems.
The connector has a standard size suitable for typical RF applications, but specific dimensions are not provided in the data.
Yes, it complies with MIL type specifications, providing rugged reliability for professional and military-grade applications.
It is suitable for RF communication systems, test equipment, signal transmission lines, and various electronics manufacturing applications.
This connector has a straight orientation, facilitating straightforward integration into electronic assemblies.
The country of origin for this connector is India.
