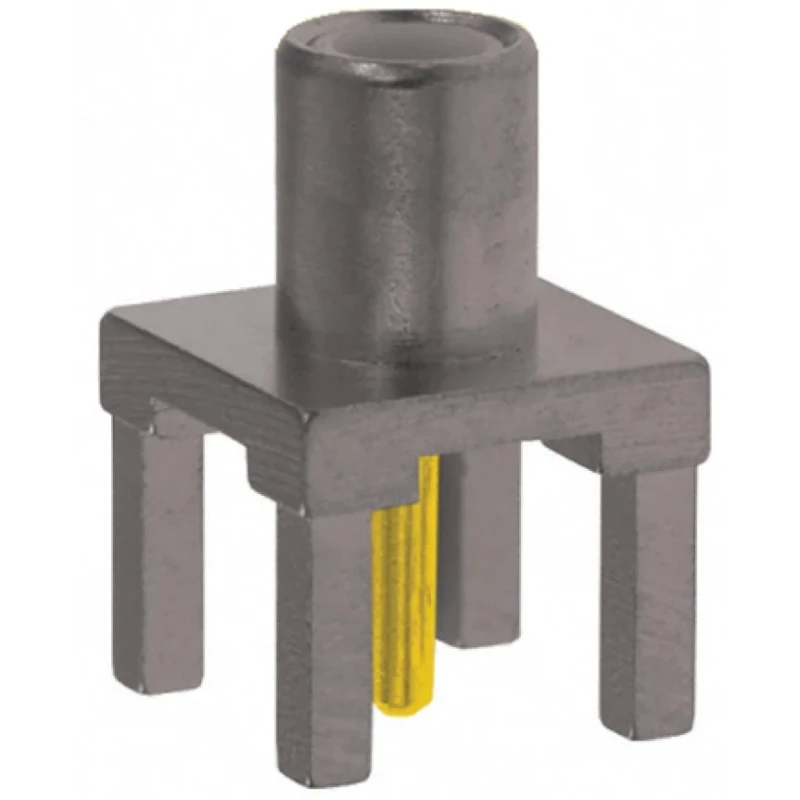

TE Connectivity MCX Series Coaxial Connector Through Hole Female MCX, 50 Ω, Straight Body Solder 1060985-1
Specifications
| Country of Origin | India |
|---|---|
| Size | Standard |
| Brand | TE Connectivity |
| Orientation | Straight |
| Mount Type | Through Hole |
| Operating Frequency | 6GHz |
| Contact Material | Beryllium Copper |
| Series | MCX |
| Termination Type | Solder |
| Maximum Operating Temperature | 165°C |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 713-0947PBrand: TE ConnectivityManufacturers Part No.: 1060985-1 |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | MCX |
| Body Plating | Nickel |
Key Features
- Features a through hole mount type for secure PCB connection.
- Designed with 50 ohm impedance for broadband RF performance.
- Body plated with nickel for corrosion resistance and durability.
- Contact material is beryllium copper with gold plating to ensure excellent conductivity.
- Operates reliably between -65°C and 165°C temperature range.
- Snap-on interface provides quick connect/disconnect functionality.
- Suitable for GPS, automotive, and wireless communication systems.
- Complies with CECC interface specifications for MCX connectors.
Product Description
TE Connectivity 1060985-1 MCX Series Coaxial Connector Through Hole Female MCX is a high-performance RF Coaxial Connector designed for PCB mounting in industrial and commercial electronics applications. With a standard 50 ohm impedance and broadband capability up to 6 GHz, this connector offers reliable signal transmission with minimal loss.
Featuring a through hole mount type and a straight body design, it allows secure solder termination on PCBs providing mechanical stability and excellent electrical connectivity. The nickel-plated body ensures longevity and resistance against wear and oxidation, while the beryllium copper contacts with gold plating guarantee optimal conductivity and corrosion resistance.
This MCX connector series is noted for its microminiature snap-coupling mechanism, enabling quick and secure mating without the need for threaded connections. It is 30% smaller than traditional SMB connectors offering space-saving benefits in compact electronic assemblies.
The connector operates efficiently within a wide temperature range from -65°C to 165°C, making it suitable for harsh environmental conditions often encountered in automotive, GPS, and wireless communication systems. Compliance with CECC interface standards ensures compatibility with industry standard MCX connectors.
Through hole mount type ensures strong PCB engagement. 50 Ω impedance optimized for broadband RF applications. Corrosion-resistant nickel body plating enhances durability. Beryllium copper gold-plated contacts provide excellent conductivity.
Wide operating temperature range from -65°C to 165°C. Snap-on interface allows fast connect and disconnect. Ideal for automotive, GPS, and wireless communication use cases. Conforms to CECC MCX interface specifications for compatibility.
This connector is an ideal choice for industrial, communication, and electronic device applications requiring compact, reliable RF signal connections. Browse the EnvMart Electronics & Electricals categories for a broad range of coaxial and RF connectors to match your project requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an impedance of 50 Ω, optimized for broadband RF applications.
The maximum operating temperature for this connector is 165°C.
It features a through hole mount type, ensuring secure solder termination on PCBs.
This connector operates efficiently up to 6 GHz, suitable for various RF applications.
The contacts are made of beryllium copper and are gold-plated to ensure excellent conductivity.
The minimum operating temperature is -65°C, making it suitable for harsh environments.
It is suitable for automotive, GPS, and wireless communication systems.
The snap-on interface allows for quick connect and disconnect functionality without the need for threaded connections.
The body is plated with nickel, providing corrosion resistance and durability.
This connector has a straight orientation.
Yes, it complies with CECC interface specifications for MCX connectors, ensuring compatibility with industry standards.
This connector is a female coaxial connector.
