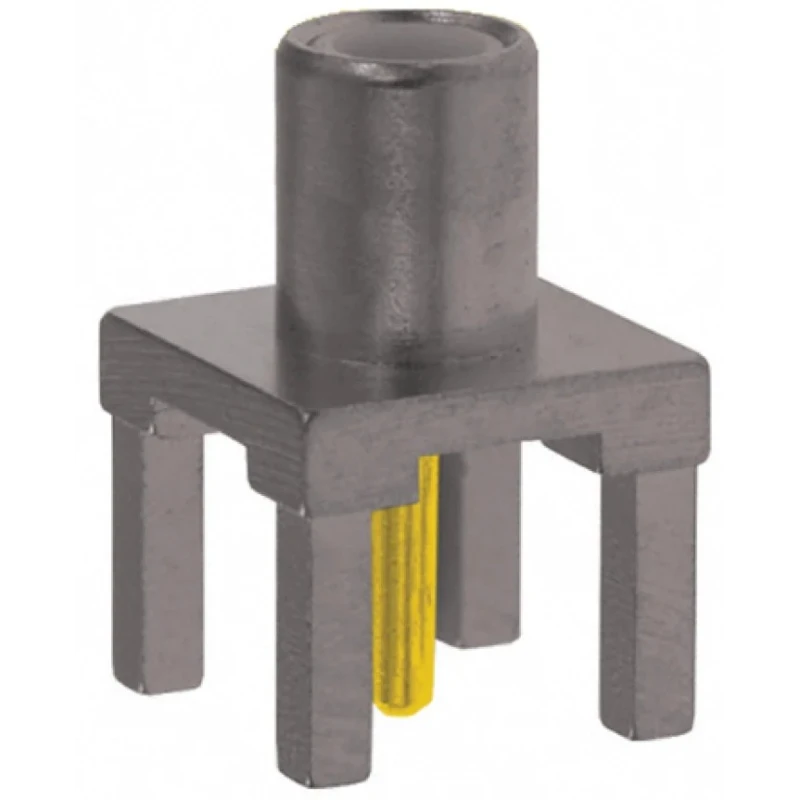

TE Connectivity MCX Series Coaxial Connector Through Hole Female, 50 Ω, Straight Body, Solder Termination 1060985-1
Specifications
| Country of Origin | India |
|---|---|
| Size | Standard |
| Brand | TE Connectivity |
| Orientation | Straight |
| Mount Type | Through Hole |
| Operating Frequency | 6GHz |
| Contact Material | Beryllium Copper |
| Series | MCX |
| Termination Type | Solder |
| Maximum Operating Temperature | 165°C |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Pay online using | Or choose to pay later via bank transfer |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | MCX |
| Body Plating | Nickel |
Key Features
- This MCX connector features a through hole mount type for secure PCB installation.
- The connector has a beryllium copper contact material plated with gold for excellent conductivity and corrosion resistance.
- It operates reliably between -65°C to 165°C, supporting frequencies up to 6 GHz.
- The body plating is nickel, providing durability and protection against wear.
- Its compact snap-on interface offers quick connect/disconnect and space-saving benefits compared to traditional connectors.
- Designed for applications in GPS, automotive, and wireless communications systems.
- Compatible with standard MCX connectors and meets CECC interface specifications.
Product Description
TE Connectivity 1060985-1 MCX Series Coaxial Connector Through Hole Female is a high-quality RF coaxial connector designed for broadband performance with a frequency range up to 6 GHz. Featuring a 50 Ω impedance and straight body configuration, this connector ensures reliable signal transmission in dense electronic assemblies.
The connector utilizes a through-hole mounting design, facilitating robust PCB attachment and mechanical stability. The contact material is beryllium copper with gold plating, guaranteeing excellent electrical conductivity and corrosion resistance even in demanding industrial environments. The connector's body is plated with nickel, enhancing durability and resistance to wear.
Operating reliably within a temperature range of -65°C to 165°C, this MCX connector is suitable for a variety of industrial, automotive, wireless communication, and GPS applications. Its microminiature snap-coupling interface enables quick, secure connections without threaded couplings, offering a space-saving advantage over larger SMB connectors.
Fully mateable with industry-standard MCX connectors and conforming to CECC specifications, it is ideal for use in electronic test equipment, communication devices, and other high-frequency applications requiring precise impedance control and minimal signal loss.
Through-hole mount type provides enhanced PCB stability. Beryllium copper contact with gold plating for superior conductivity. Nickel-plated body for high durability and corrosion resistance. Operating frequency up to 6 GHz suitable for broadband applications.
Temperature range from -65°C to 165°C for harsh environments. Snap-on interface enabling quick and reliable connections. Compatible with standard MCX connectors and CECC specifications.
Suitable for industrial, automotive, communication, laboratory, and manufacturing settings, the TE Connectivity MCX Series Coaxial Connector offers reliable performance and ease of integration. For additional TE Connectivity products and advanced connector solutions, explore the Electronics Components section at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This MCX connector operates reliably at frequencies up to 6 GHz, making it suitable for broadband applications.
It operates within a temperature range of -65°C to 165°C, allowing it to function in harsh environments.
This connector features a through hole mount type, which provides enhanced stability for PCB attachment.
The contact material is beryllium copper with gold plating for excellent conductivity, while the body is nickel-plated for durability and corrosion resistance.
Yes, it is fully mateable with industry-standard MCX connectors, ensuring compatibility in various applications.
The impedance rating of this connector is 50 Ω, which is standard for many RF applications.
This model uses solder termination, which provides a secure connection for electronic assemblies.
The connector has a straight orientation, which is typical for many coaxial applications.
This connector is a female type, designed to connect with male counterparts in various applications.
It is suitable for use in industrial, automotive, wireless communication, and GPS applications.
The body of this connector is plated with nickel, enhancing its durability and resistance to wear.
The country of origin for this connector is India.
