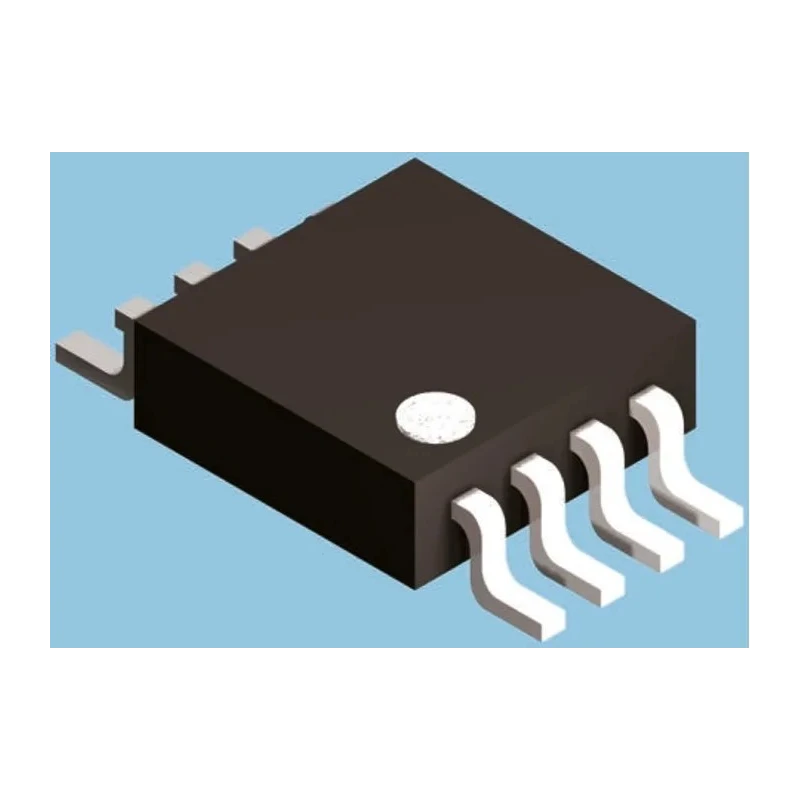

DiodesZetex Operational Amplifier 1 MHz Gain Bandwidth, 8-Pin SOP, 5V Supply APX358SG-13
Specifications
| Country of Origin | China |
|---|---|
| Brand | DiodesZetex |
| Height | 1.5mm |
| Length | 4.95mm |
| Model | APX358SG-13 |
| Width | 3.95mm |
| Mount Type | Surface |
| Series | APX321/APX358/APX324 |
| Maximum Operating Temperature | 85°C |
| Package Type | SOP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 712-2823PBrand: DiodesZetexManufacturers Part No.: APX358SG-13 |
| Pin Count | 8 |
| Maximum Supply Voltage | 5V |
| Minimum Supply Voltage | 2.5V |
| GBP - Gain Bandwidth Product | 1MHz |
| Input Bias Current | 10 nA |
| Vos - Input Offset Voltage | 7 mV |
| Slew Rate | 1V/μs |
| Input Offset Current | 50 nA |
Key Features
- Surface mount type for easy PCB integration.
- Dual channels available in a standard 8-pin package.
- Maximum supply voltage of 5 volts with minimum operating voltage of 2.5 volts.
- Low input bias current at 10 nA and low input offset current at 50 nA.
- Wide operating temperature range from -40°C to 85°C.
- Slew rate of 1 V/μs ensures stable signal amplification.
- Input offset voltage of 7 mV for accurate operation.
- Compatible with APX321/APX358/APX324 series amplifiers.
Product Description
DiodesZetex APX358SG-13 is a precision operational amplifier designed for general purpose applications requiring a 1 MHz gain bandwidth and low voltage operation up to 5V. It features a surface mount 8-pin SOP package that facilitates compact and efficient PCB design for electronic circuits.
This operational amplifier integrates dual channels with low input bias and offset currents, making it suitable for sensitive signal processing in industrial, laboratory, and commercial electronics.
The device operates reliably over a broad temperature range from -40°C to 85°C, ensuring stable performance in harsh environments. Its input offset voltage of 7 mV and slew rate of 1 V/μs provide accurate and rapid signal amplification for a variety of applications.
With compact dimensions measuring 4.95 mm in length, 3.95 mm in width, and 1.5 mm in height, the APX358SG-13 is ideal for space-constrained electronic assemblies. It belongs to the APX321/APX358/APX324 series of amplifiers and complies with no specific automotive or other certifications.
Applications include instrumentation, signal conditioning, data acquisition systems, and consumer electronics where reliable, low power, dual operational amplifiers are required. Surface mount type for easy PCB integration.
Dual 8-pin channel configuration. Operates with supply voltage from 2.5V to 5V. Low input bias and offset current for precision. Broad temperature range suitable for industrial use. Compact SOP package dimensions. Reliable slew rate for stable signal amplification.
Input offset voltage ensures accurate operation. Part of APX series amplifiers for compatibility. Manufactured in China with new product condition. Explore the full range of Operational Amplifiers and semiconductor components available at EnvMart for your industrial and electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 1 MHz.
The maximum supply voltage for the APX358SG-13 is 5 volts.
It operates reliably over a temperature range from -40°C to 85°C.
This model features dual channels, providing two operational amplifiers in one package.
The dimensions are 4.95 mm in length, 3.95 mm in width, and 1.5 mm in height.
The input offset voltage is specified at 7 mV, ensuring accurate operation.
The slew rate for this operational amplifier is 1 V/μs, which allows for stable signal amplification.
The input bias current is low, at 10 nA, which is beneficial for sensitive applications.
It comes in a surface mount 8-pin SOP package, facilitating easy PCB integration.
This model is compatible with the APX321/APX358/APX324 series of amplifiers.
The input offset current is specified at 50 nA, contributing to its precision in applications.
It is suitable for instrumentation, signal conditioning, data acquisition systems, and consumer electronics.
