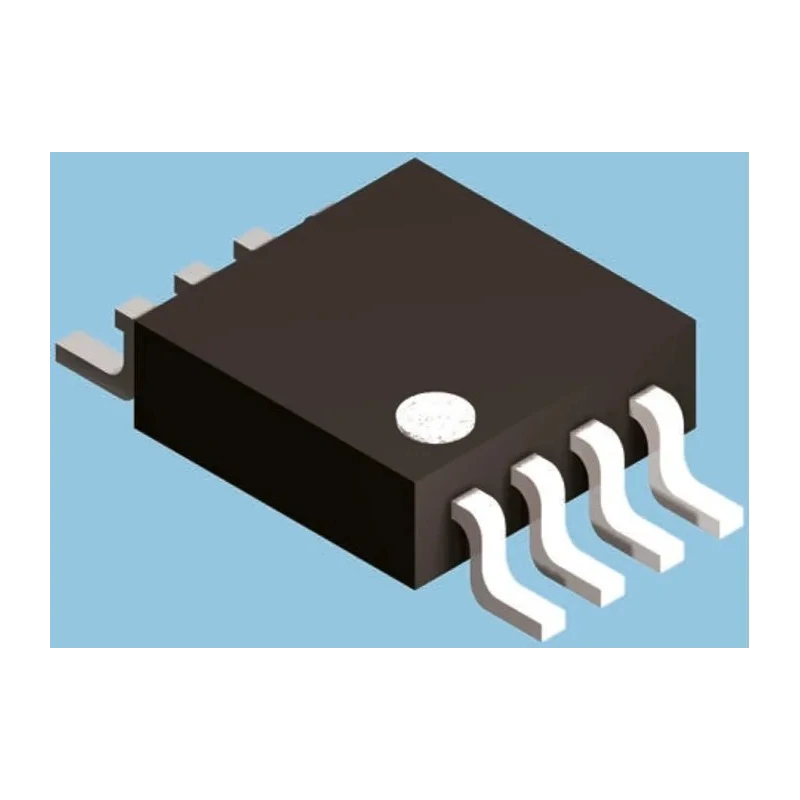

DiodesZetex Operational Amplifier 1 MHz, 8-Pin SOP, 2 Channels, 2.5-5V Supply APX358SG-13

DiodesZetex APX358SG-13 Operational Amplifier is a dual-channel device designed for robust general purpose amplification tasks in industrial, electronic components, and semiconductor applications. It operates within a supply voltage range of 2.5 to 5 volts and delivers a gain bandwidth product of 1 MHz, making it ideal for moderate frequency signal amplification needs.

The 8-pin SOP surface mount package allows for compact PCB designs and easy integration into modern electronics manufacturing. Physical dimensions of 4.95 mm length, 3.95 mm width, and 1.5 mm height provide a low-profile solution suitable for space-constrained assemblies.

This operational amplifier operates reliably over a wide temperature range from -40°C to 85°C, compatible with demanding thermal environments found in automotive, industrial, and manufacturing sectors. The device features a low input bias current of 10 nA and an input offset voltage of 7 mV, ensuring precise signal fidelity.

With a slew rate of 1 V/μs, the APX358SG-13 supports fast signal transitions, enhancing performance in dynamic circuits. The dual channel capability allows simultaneous amplification in compact electronics systems.

Produced to established industry standards (without specific approvals), this unit originates from China and is supplied in new condition for immediate use. It is a suitable choice for electronic design engineers requiring reliable and efficient operational amplifiers for prototypes or volume production.

Features a gain bandwidth product of 1 MHz enabling general purpose amplification. Operates with a maximum supply voltage of 5V and a minimum of 2.5V. Offers low input bias current of 10 nA and input offset voltage of 7 mV.

Includes an 8-pin SOP surface mount package measuring 4.95 mm length, 3.95 mm width, and 1.5 mm height. Capable of operating temperature range from -40°C to 85°C for diverse industrial environments. Slew rate of 1 V/μs supports efficient signal processing.

Dual channel configuration suitable for compact circuit designs. Manufactured in China and supplied as new condition component. Explore the DiodesZetex Operational Amplifiers category at EnvMart for a wide range of semiconductor components optimized for electronic and industrial applications.
