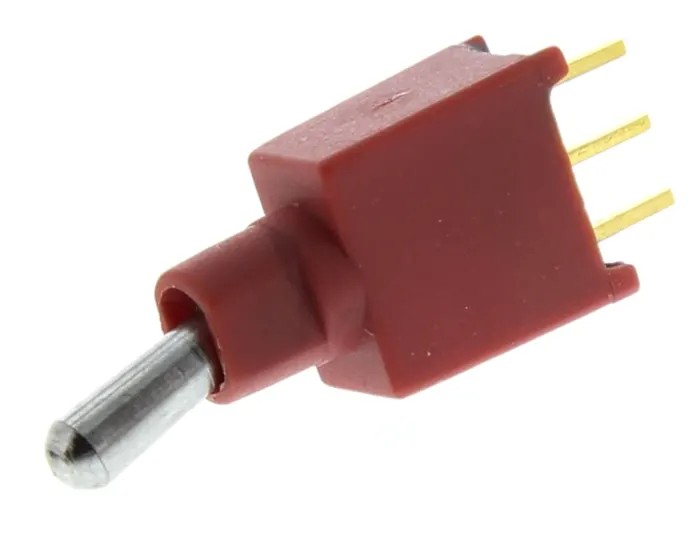

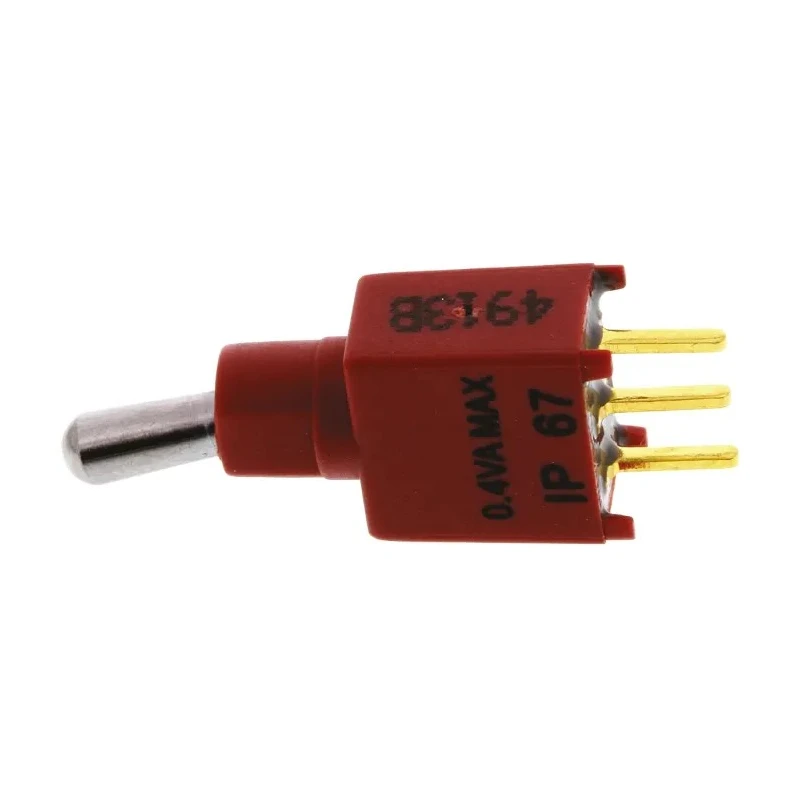

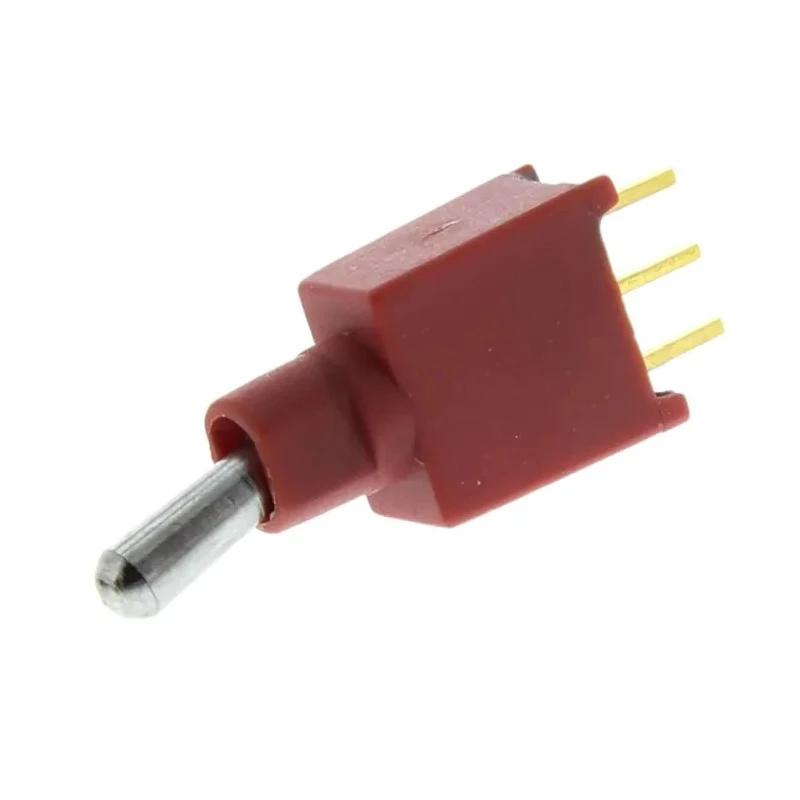

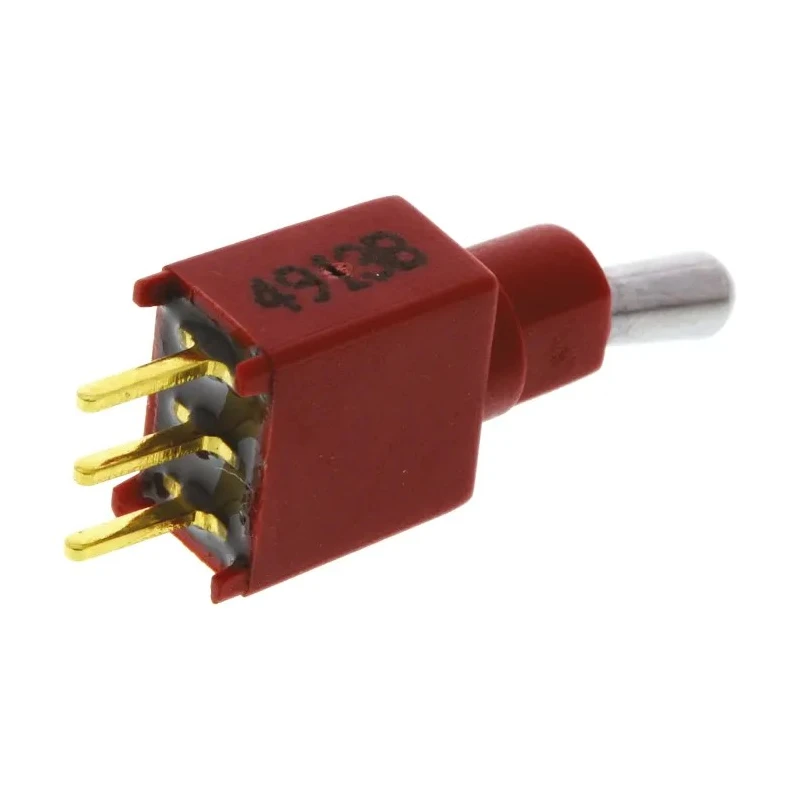

KNITTER-SWITCH Toggle Switch PCB Mount On-On SPDT Through Hole Terminal 30 V dc 20 V ac TST 1D
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | KNITTER-SWITCH |
| Model | TST 1D |
| IP Rating | IP67 |
| Mount Type | PCB |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Switch Configuration | On-On |
| Dielectric strength | 1000 V, 50 Hz for 1 minute |
| Insulation resistance | 1000 MΩ min |
| Minimum Operating Temperature | -30°C |
| Terminal type | Through Hole |
| Standards/Approvals | RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 711-8363Brand: KNITTER-SWITCHManufacturers Part No.: TST 1D |
| Switch Operation | On-On |
| Actuator Length | 6.1mm |
| Contact DC Voltage | 30V dc |
| Switch Contact Current | 50mA |
| Mechanical Life | 50000Operations |
| Contact AC Voltage | 20V ac |
| Actuator Material | Chrome Plated Brass |
Key Features
- Subminiature PCB mount design suitable for compact applications.
- Gold plated contacts ensure low contact resistance and reliable switching.
- Fully sealed and washable construction with IP67 rating for harsh environments.
- Mechanical life rated at 50,000 operations for durability.
- Operates reliably between -30°C and 85°C for varied temperature conditions.
- Chrome plated brass actuator material provides corrosion resistance.
- Insulation resistance of minimum 1000 MΩ and dielectric strength of 1000 V at 50 Hz for 1 minute.
Product Description
KNITTER-SWITCH TST 1D Toggle Switch is a subminiature PCB mount switch designed for electronic, automation, and electrical applications. Its On-On SPDT switch operation and through hole terminal mounting make it suitable for compact circuit designs requiring reliable switching at low voltages.
This toggle switch features gold plated contacts to allow low-level switching with excellent contact resistance and is fully sealed with an IP67 rating, ensuring that it is washable and protected against dust and moisture ingress. It is ideal for industrial and commercial electronics subjected to harsh environments.
The actuator, made from chrome plated brass, measures 6.1 mm in length and provides durable, corrosion-resistant operation. The switch contact current rating is 50mA, with a maximum DC voltage rating of 30 V and AC voltage rating of 20 V. It reliably operates in ambient temperatures ranging from -30°C to 85°C.
Insulation resistance is at least 1000 MΩ, with a dielectric strength of 1000 V at 50 Hz for 1 minute, enhancing the switch's electrical safety and durability. It boasts a mechanical life expectancy of 50,000 operations, ensuring sustained performance over extended use.
This toggle switch is RoHS compliant and manufactured in Taiwan, Province Of China, meeting industry environmental standards. It is ideal for applications in industrial automation, control systems, instrumentation, and other electronic devices requiring compact and reliable switching solutions.
Subminiature PCB mount design suitable for compact applications. Gold plated contacts ensure low contact resistance and reliable switching. Fully sealed and washable construction with IP67 rating for harsh environments. Mechanical life rated at 50,000 operations for durability.
Operates reliably between -30°C and 85°C for varied temperature conditions. Chrome plated brass actuator material provides corrosion resistance. Switch configuration: On-On, with a switch contact current of 50mA. Insulation resistance of minimum 1000 MΩ and dielectric strength of 1000 V at 50 Hz for 1 minute.
Explore more Toggle Switches and related components at EnvMart for your industrial and electronic projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The toggle switch features a Single Pole Double Throw (SPDT) contact configuration, allowing for versatile switching capabilities.
This model operates reliably at a maximum temperature of 85°C.
It has an IP67 rating, indicating that it is fully sealed and protected against dust and moisture ingress.
The mechanical life of this toggle switch is rated at 50,000 operations, ensuring durability over extended use.
The switch has a maximum DC voltage rating of 30 V and an AC voltage rating of 20 V.
The insulation resistance is a minimum of 1000 MΩ, enhancing its electrical safety.
It is designed for PCB mounting with through hole terminals, suitable for compact circuit designs.
The actuator is made from chrome plated brass, providing corrosion resistance.
The toggle switch operates reliably at a minimum temperature of -30°C.
The switch configuration is On-On, allowing for two positions of operation.
It is ideal for applications in industrial automation, control systems, instrumentation, and other electronic devices requiring compact and reliable switching solutions.
Yes, this toggle switch is RoHS compliant, meeting industry environmental standards.
