Texas Instruments DAC 16 bit Resistor String Digital to Analogue Converter QSPI, Microwire, SPI Interface 6-Pin DAC8411IDCKT

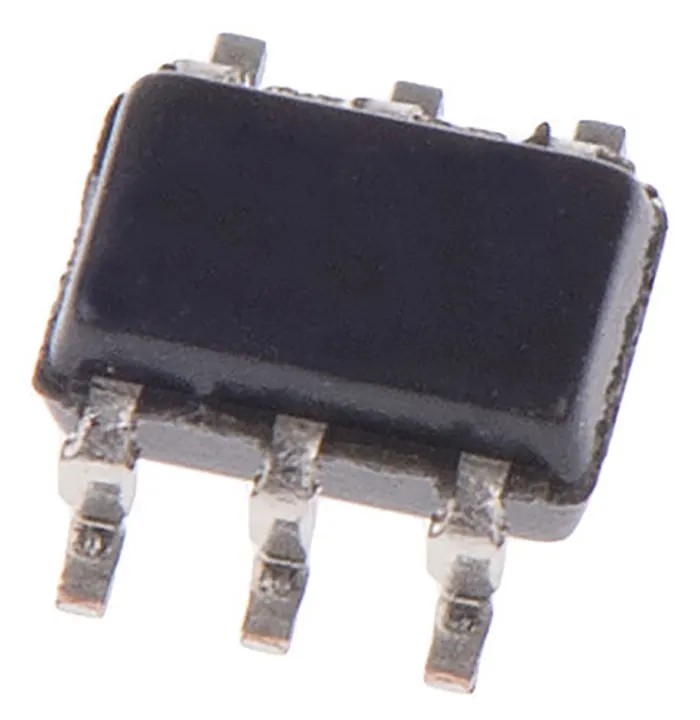

Texas Instruments DAC8411IDCKT is a high-performance 16-bit Digital to Analogue Converter (DAC) featuring resistor string architecture for high accuracy and quality analogue voltage output. Packaged in a compact 6-pin SC-70 surface mount package, this DAC supports multiple industrial communication protocols including QSPI, Microwire, and SPI, making it versatile for integration in various electronic and industrial instrumentation systems.

Operating over a voltage range from 2.5 V to 5.5 V, the DAC8411IDCKT ensures reliable performance within a wide temperature span of -40°C to 125°C, suited for demanding environments. With a fast settling time of 10 μs, it is well-suited for applications requiring precise and timely analogue signal conversion such as audio processing and control systems.

The compact physical dimensions (2.1 mm length, 1.4 mm width, and 1.1 mm height) allow space-efficient PCB designs. It outputs an analogue voltage that interfaces easily with other system components while maintaining signal integrity.

This DAC series is used extensively in industrial machines, laboratory instruments, audio devices, and other electronics requiring fine voltage control. Resistor string architecture providing stable, accurate conversion.

16-bit resolution for detailed analogue output. Compatible with multiple serial interfaces (QSPI, Microwire, SPI). Compact 6-pin SC-70 surface mount package. Wide operating temperature and voltage ranges ensuring robust use cases.

Fast 10 μs settling time for responsive systems. Ideal for industrial, laboratory, construction, HVAC, manufacturing, and audio applications.

Set yourself up for success in precision electronic design with the Texas Instruments DAC8411IDCKT. Explore more digital-to-analogue converter models for diverse requirements on EnvMart.
