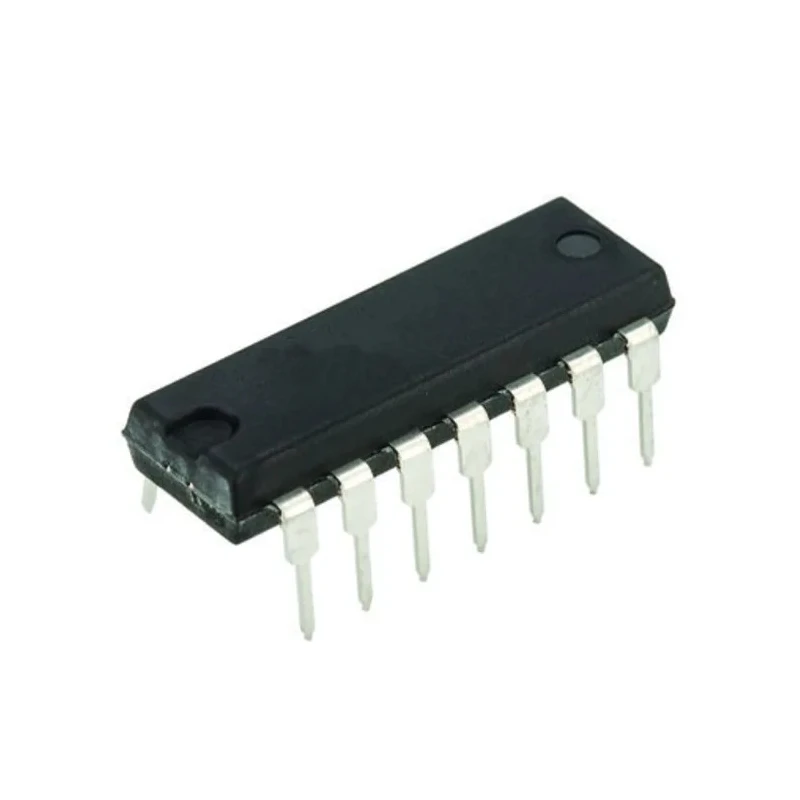

Texas Instruments 16-Bit MSP430 Microcontroller 16 MHz 2 kB FLASH 256B RAM 14-Pin PDIP

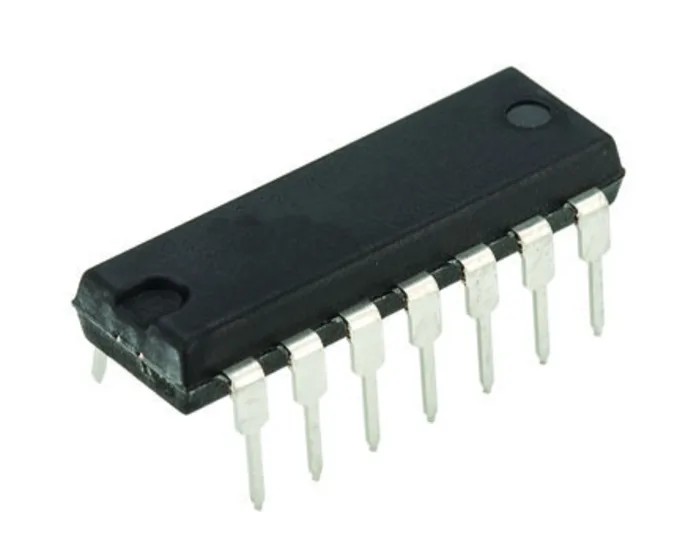

Texas Instruments MSP430F2013IN is a high-performance 16-bit microcontroller featuring a 16 MHz CPU speed and 2 kB FLASH memory, designed for ultra-low power embedded applications. This microcontroller is housed in a 14-pin PDIP through-hole package, facilitating straightforward board implementation and prototyping.

Operating within a voltage range of 1.8 V to 3.6 V, it supports a variety of power supply configurations while maintaining energy efficiency. The device contains 256 bytes of RAM and 2 kB of non-volatile FLASH program memory, ensuring rapid execution and reliable code storage.

Equipped with 4 channels of 16-bit Analog to Digital Converters (ADCs) and two programmable timers, MSP430F2013IN provides versatile control options suitable for complex embedded systems. Its instruction set architecture is 16-bit RISC, optimizing performance for low-power applications.

The microcontroller offers 10 programmable input/output pins, which provide flexible interfacing possibilities with external sensors and actuators. The robust operating temperature range from -40°C to 85°C extends its usability in industrial environments with challenging conditions.

MSP430F2013IN exhibits ultra-low power consumption, including 200 μA per MHz in active mode and sub-1 μA in real-time clock mode, enabling battery-powered devices with extended lifetimes. Its compact dimensions of 19.3 mm x 6.35 mm x 4.57 mm allow for space-saving embedded designs.

Applications of this microcontroller include wireless sensor networks, portable medical devices, industrial control systems, and other low-power embedded solutions. It integrates the MSP430 platform's mixed-signal capabilities combined with a broad and mature ecosystem of development tools and software libraries.

Features 14-pin PDIP through-hole package for easy prototyping and integration. Operates on a voltage range from 1.8 V to 3.6 V for flexible power options. Incorporates 256 bytes of RAM and 2 kB of program memory with FLASH technology.

Includes 4 x 16-bit ADCs and two independent timers for versatile embedded control. Ultra-low power consumption with active mode current as low as 200 μA/MHz. Operating temperature ranges from -40°C to 85°C ensuring robust performance.

Compact physical dimensions of 19.3 mm length, 6.35 mm width, and 4.57 mm height. Utilizes a 16-bit RISC architecture for efficient instruction processing. Features 10 programmable input/output pins for flexible interfacing.

Ideal for industrial, wireless, and portable low-power embedded applications. Explore EnvMart for more Texas Instruments Microcontrollers and related electronic components to support diverse embedded design projects with reliability and efficiency.
