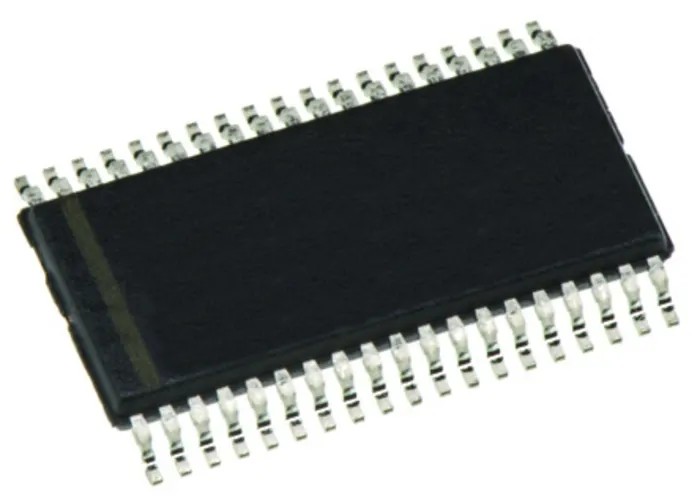

Texas Instruments 16-Channel 12-Bit Successive Approximation ADC, 1 Msps, 38-Pin TSSOP ADS7953SBDBT
Specifications
| Country of Origin | India |
|---|---|
| Resolution | 12 bit |
| Brand | Texas Instruments |
| Height | 1.2mm |
| Length | 4.45mm |
| Model | ADS7953SBDBT |
| Mount Type | Surface |
| Sampling rate | 1Msps |
| Series | ADS7953 |
| Input Type | Voltage |
| Maximum Operating Temperature | 125°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Interface Type | SPI |
| Architecture | SAR |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 709-3236PBrand: Texas InstrumentsManufacturers Part No.: ADS7953SBDBT |
| Pin Count | 38 |
| Maximum Supply Voltage | 5.25V |
| Minimum Supply Voltage | 3.3V |
| Number of ADCs | 16 |
Key Features
- This device supports SPI interface for communication.
- It operates within a supply voltage range of 3.3V to 5.25V.
- Designed for surface mounting, it withstands operating temperatures from -40°C to 125°C.
- The compact 38-pin TSSOP package measures 4.45mm in length and 1.2mm in height.
- The ADS7953 series provides high-resolution voltage input ADC capability suitable for multiple channels.
- No specific automotive standards or certifications apply to this product.
- This ADC is ideal for precision data conversion in embedded, industrial, and laboratory electronic applications.
- The device supports 16 ADC channels allowing parallel data acquisition and conversion.
Product Description
Texas Instruments ADS7953SBDBT is a high-performance 16-channel 12-bit successive approximation analogue to digital converter with a maximum sampling rate of 1 Msps. Packaged in a compact 38-pin TSSOP form factor, it supports SPI interface communication and operates on supply voltages between 3.3V and 5.25V. It is designed for surface mounting in high-density electronic circuit boards, withstanding industrial wide temperature ranges from -40°C to 125°C.
This ADC architecture uses SAR technology, offering accurate and fast analog to digital conversion for multiple input channels, making it suitable for embedded systems, industrial automation, data acquisition, and laboratory instrumentation. The multiple ADC channels facilitate simultaneous signal processing and measurement from various sensors or analog sources.
The package dimensions include a length of 4.45mm and a height of 1.2mm, ensuring compact integration into designs requiring high channel density and resolution without sacrificing board space.
Featuring no automotive certification, it is tailored for standard electronic applications requiring reliable, precise data conversion. Its robustness against temperature extremes further supports demanding industrial and laboratory environments.
This ADC supports 16 input channels with 12-bit resolution and SAR architecture. Sampling rate is up to 1 million samples per second, ensuring rapid data acquisition. Surface mount package type TSSOP with 38 pins fits compact PCB layouts.
Wide temperature operating range from -40°C to 125°C suitable for harsh conditions. Supply voltage range from 3.3V to 5.25V allows flexibility in power design. SPI interface enables straightforward digital communication and control.
Ideal for electronic components in measurement, control, and data converter applications. No specific standards or approvals apply, intended for general electronics use.
Explore more Texas Instruments analogue and digital converters in EnvMart's Electronics & Electricals section, ideal for advanced electronic designs in industrial, laboratory, and embedded system contexts.
Explore more products in our Analogue to Digital Converters category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum sampling rate of this model is 1 Msps (million samples per second).
This ADC has a resolution of 12 bits.
It supports 16 input channels for data acquisition and conversion.
The device operates within a supply voltage range of 3.3V to 5.25V.
It supports SPI (Serial Peripheral Interface) for communication.
The package measures 4.45mm in length and 1.2mm in height.
It can operate within a temperature range of -40°C to 125°C.
This ADC utilizes SAR (Successive Approximation Register) architecture for data conversion.
No, this model does not have specific automotive standards or certifications.
It is designed for surface mounting on high-density electronic circuit boards.
The input type for this ADC is voltage.
It is suitable for embedded systems, industrial automation, data acquisition, and laboratory instrumentation.
