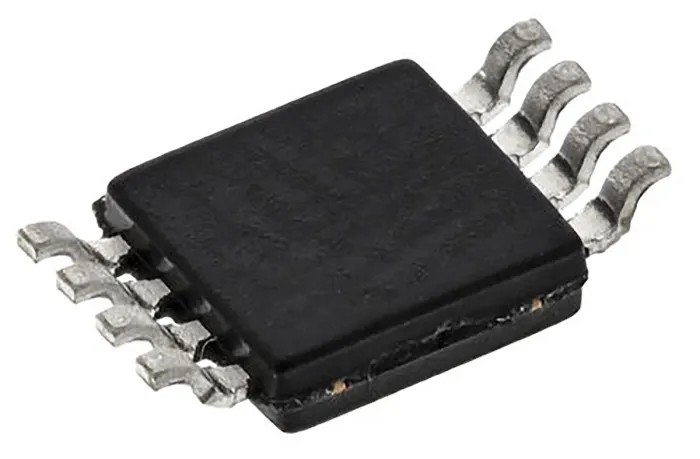

Texas Instruments 16 Bit SAR Architecture Analogue to Digital Converter 100 ksps 8-Pin MSOP ADS8325IBDGKT
Specifications
| Country of Origin | India |
|---|---|
| Resolution | 16 bit |
| Brand | Texas Instruments |
| Height | 1.1mm |
| Length | 3.1mm |
| Model | ADS8325IBDGKT |
| Mount Type | Surface |
| Sampling rate | 100ksps |
| Series | ADS8325 |
| Input Type | Voltage |
| Maximum Operating Temperature | 85°C |
| Package Type | MSOP |
| Minimum Operating Temperature | -40°C |
| Interface Type | SPI |
| Architecture | SAR |
| Pin Count | 8 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 5V |
| Number of ADCs | 1 |
Key Features
- Features successive approximation register (SAR) architecture for accurate conversion.
- Single-channel ADC with 16-bit resolution for high precision measurements.
- Operates at a sampling rate of 100 thousand samples per second (ksps).
- Compact 8-pin MSOP surface mount package for space-saving PCB designs.
- Supports SPI interface type for communication with microcontrollers and other devices.
- Wide operating temperature range from -40°C to 85°C suitable for industrial environments.
- Designed for 5 V supply voltage with a maximum of 5.5 V for stable operation.
- Ideal for industrial, laboratory, instrumentation, and measurement applications.
Product Description
Texas Instruments ADS8325IBDGKT is a high-performance 16-bit analogue to digital converter (ADC) featuring a successive approximation register (SAR) architecture. This ADC supports a single input channel and operates at a sampling rate of 100 ksps, making it suitable for precise and fast data acquisition.
The device is housed in an 8-pin MSOP surface mount package, measuring 3.1mm in length and 1.1mm in height, facilitating compact and efficient PCB layouts. It communicates via SPI interface, ensuring compatibility with a broad range of microcontrollers and embedded systems.
Designed to operate within an extended temperature range of -40°C to 85°C, this ADC is reliable for use in harsh industrial and laboratory environments. It requires a supply voltage of 5 V, with a maximum of 5.5 V, supporting standard power systems in embedded applications.
This product is ideal for applications demanding high resolution and sampling speeds, such as instrumentation, process control, data acquisition systems, and other electronic measurement equipment. The ADS8325 series offers robustness and accuracy required in automotive, manufacturing, laboratory, and industrial sectors.
Successive approximation register (SAR) architecture ensures precise ADC performance. 16-bit resolution offers fine measurement granularity. 100 ksps sampling rate supports high-speed data capture. 8-pin MSOP package enables compact device integration.
SPI interface for seamless communication with embedded systems. Wide temperature operation and voltage range for industrial robustness. Single-channel ADC suitable for versatile analog signal conversions. Compact dimensions of 3.1mm length and 1.1mm height support compact circuit design.
The set contains one unit of the Texas Instruments ADS8325IBDGKT ADC. This product is new and sourced from India. Discover more advanced Analogue to Digital Converters and semiconductor electronics at EnvMart to enhance your design and development projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The ADS8325IBDGKT features a resolution of 16 bits, allowing for high precision measurements.
It operates at a maximum sampling rate of 100 ksps, suitable for fast data acquisition.
This model is housed in an 8-pin MSOP surface mount package, measuring 3.1mm in length and 1.1mm in height.
The device operates within a temperature range of -40°C to 85°C, making it suitable for industrial environments.
It requires a supply voltage of 5 V, with a maximum of 5.5 V for stable operation.
The ADS8325IBDGKT supports an SPI interface for communication with microcontrollers and other devices.
This model features a single input channel for voltage measurements.
It utilizes a successive approximation register (SAR) architecture, ensuring precise ADC performance.
The height of this model is 1.1mm, facilitating compact circuit designs.
It is ideal for applications in instrumentation, process control, data acquisition systems, and other electronic measurement equipment.
This product is sourced from India.
The length of this analogue to digital converter is 3.1mm, supporting efficient PCB layouts.
