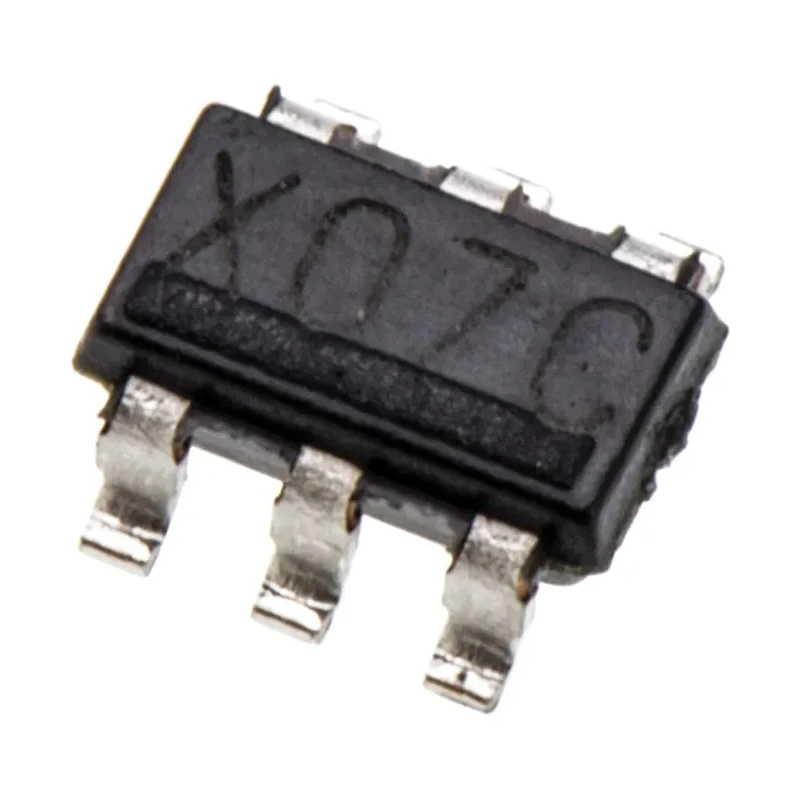

Texas Instruments 1 3-Input AND Logic Gate, 6-Pin SOT-23 Surface Mount SN74LVC1G11DBVR

The Texas Instruments SN74LVC1G11DBVR is a 1 3-Input AND logic gate designed for surface mounting applications. This logic IC features a compact 6-pin SOT-23 package, making it suitable for space-constrained electronic circuit designs.

Operating within a supply voltage range of 1.65 to 5.5 volts, it is compatible with various low voltage logic circuits. The device uses CMOS input technology which ensures low power consumption and high noise immunity for reliable performance.

It can handle temperatures from -40°C to +125°C, supporting robust operation in diverse industrial and commercial environments. The maximum propagation delay time at the specified load capacitance is 4.6 nanoseconds, facilitating high-speed switching for timing-sensitive applications.

This logic gate provides single-element functionality with 3 inputs per gate, making it a basic building block for digital logic circuits implementing AND functions. This logic gate has a CMOS input type for low power consumption.

It supports 3 input signals per gate with one element included. The device operates over a voltage range from 1.65V to 5.5V. The maximum propagation delay at CL is 4.6 nanoseconds ensuring fast switching. It tolerates operating temperatures from -40°C up to 125°C.

The package follows the SOT-23 standard with a 6-pin count for easy PCB mounting. Logic family type is LVC, providing compatibility with low voltage circuits. The gate output is CMOS type with a maximum high level output current of -32mA and low level of 32mA.

Schmitt trigger input is not included in this model. This component is ideal for compact, surface-mounted electronic applications requiring AND logic functions. This Logic Gate finds usage in industrial automation, consumer electronics, embedded systems, and other semiconductor electronic assemblies.

Its surface mount nature and compact dimensions make it suitable for modern miniaturized PCB designs in the electronics manufacturing sector. Overall, the Texas Instruments SN74LVC1G11DBVR combines robust electrical characteristics with practical design features to support diverse logic implementations.
