Texas Instruments DAC 16 bit 8-Channel QSPI SPI Microwire 16-Pin TSSOP DAC8568ICPW

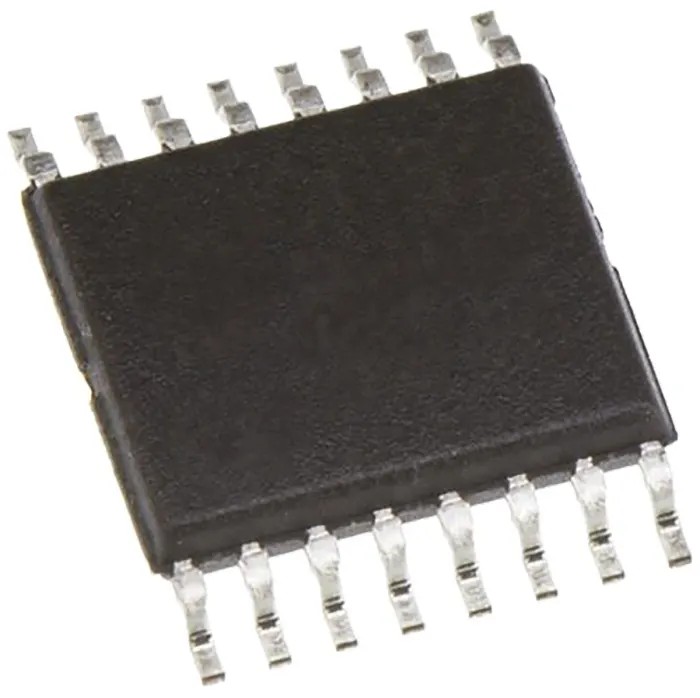

Texas Instruments DAC8568ICPW is a high-precision 16-bit digital to analogue converter designed for sophisticated electronic applications requiring multi-channel output. This device features eight output channels, making it suitable for systems where multiple analogue signals are needed simultaneously. Its compact 16-pin Thin Shrink Small Outline Package (TSSOP) with dimensions of 5.1 mm length, 4.5 mm width, and a height of 1.2 mm, supports space-constrained designs common in industrial and commercial instrumentation.

The DAC8568ICPW uses a resistor string architecture offering stable and accurate analogue voltage outputs. Its versatility is enhanced by compatibility with a range of serial communication interfaces including QSPI, SPI, and Microwire, providing ease of integration into microcontroller- or FPGA-based systems. Operating voltage ranges between 3.3 V to 5.5 V with robust performance guaranteed across a broad temperature range from -40°C to +125°C, making it ideal for harsh industrial environments.

This DAC boasts a settling time of just 10 microseconds, granting rapid signal stabilization essential in control and measurement applications. The device does not conform to any specific automotive standards and bears no formal approvals, aligning it primarily with general industrial and laboratory use cases.

High resolution 16-bit DAC delivers precise analogue voltage output. Eight independent channels for versatile multi-output applications. Compact 16-pin TSSOP surface mount package with low profile height of 1.2 mm. Supports multiple serial interfaces: QSPI, SPI, and Microwire for flexible connectivity.

Wide operating voltage range from 3.3 V minimum up to 5.5 V maximum. Operates reliably between -40°C and 125°C for industrial use. Fast settling time of 10 μs ensures quick signal response. Resistor string DAC architecture optimized for stable analogue output.

Small footprint: length 5.1 mm and width 4.5 mm ideal for compact PCB layouts.

This component is widely used in applications such as data acquisition, signal processing, instrumentation, and industrial automation systems where precise analogue control is required.
