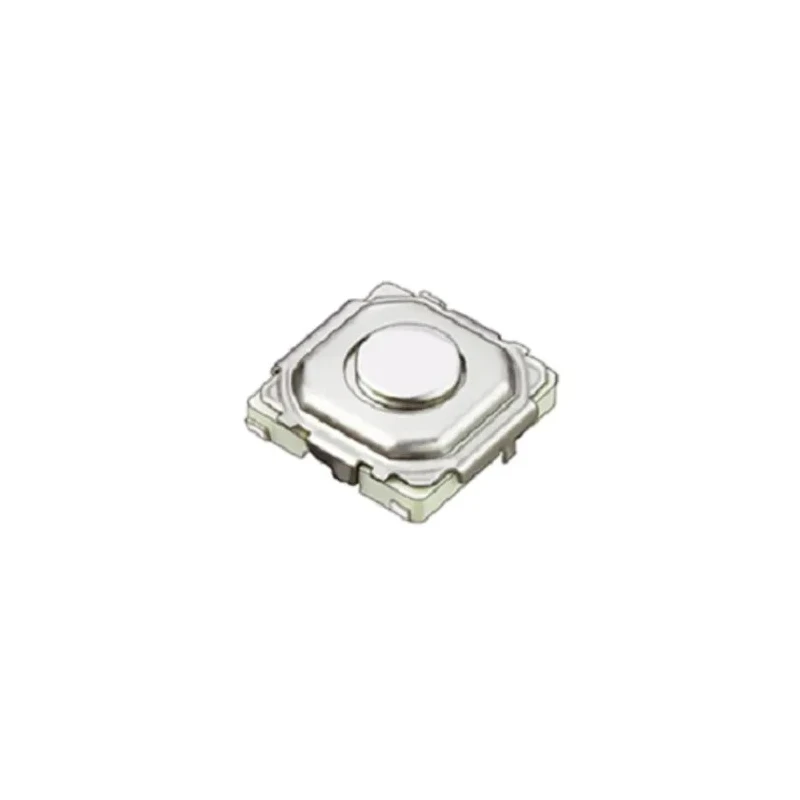

Panasonic Silver Tactile Switch Push Plate 3.4 mm SPST 20mA Surface EVQPT9A15
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | Panasonic |
| Model | EVQPT9A15 |
| Mount Type | Surface |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Terminal type | J Bend |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 238-3748PBrand: PanasonicManufacturers Part No.: EVQPT9A15 |
| Switch Operation | Push-On |
| Actuator Colour | Silver |
| Actuator Length | 3.4mm |
| Actuator Style | Push Plate |
| Actuator Orientation | Straight |
| Switch Contact Current | 20mA |
| Operating Force | 1.6N |
| Mechanical Life | 2000000Cycles |
Key Features
- Silver-colored push plate actuator with straight orientation provides tactile feedback.
- SPST contact configuration ensures single-pole single-throw switching operation.
- J Bend terminal type designed for surface mounting applications.
- Operates at a switch contact current of up to 20mA with push-on switch mechanism.
- Mechanical life rated at 2,000,000 cycles supporting long-term reliability.
- Maximum operating temperature is 70°C ensuring stable operation under elevated temperatures.
- Operating force of 1.6 Newtons for smooth actuation.
- Compact 4.9 mm square SMD tactile switch type suitable for portable electronics and car audio systems.
Product Description
Panasonic EVQPT9A15 tactile switch with silver push plate actuator and 3.4 mm length is designed for precision control in electronic equipment. This tactile switch features SPST contact configuration with a push-on type switch operation providing reliable user tactile feedback in compact devices.
The switch uses a J Bend terminal for surface mounting to PCB assemblies, optimizing installation in portable and automotive electronic applications. Rated for electrical switching at 20mA current and a maximum temperature of 70°C, it ensures consistent performance in harsh operating conditions.
Designed to endure up to 2,000,000 switching cycles, it is engineered for durability in intensive use scenarios. The 1.6N actuation force provides a balanced response suitable for keypad and control panel integration. This tactile switch finds industrial applications across consumer electronics, automotive audio controls, instrumentation, and compact electronic systems.
Silver-colored push plate actuator with straight orientation provides tactile feedback. SPST contact configuration ensures single-pole single-throw switching operation. J Bend terminal type designed for surface mounting applications.
Operates at a switch contact current of up to 20mA with push-on switch mechanism. Mechanical life rated at 2,000,000 cycles supporting long-term reliability. Maximum operating temperature is 70°C ensuring stable operation under elevated temperatures.
Operating force of 1.6 Newtons for smooth actuation. Compact 4.9 mm square SMD tactile switch type suitable for portable electronics and car audio systems. Set contains 1 Pc Panasonic Silver Tactile Switch Push Plate EVQPT9A15.
Browse more Tactile Switches and related components from Panasonic and other top brands on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this tactile switch is 70°C, ensuring stable operation under elevated temperatures.
This model requires an operating force of 1.6 Newtons for smooth actuation.
The contact configuration of the Panasonic EVQPT9A15 is SPST (single-pole single-throw).
This switch is rated for a mechanical life of up to 2,000,000 cycles, supporting long-term reliability.
This model uses a J Bend terminal type designed for surface mounting applications.
The actuator length of the push plate is 3.4 mm.
The switch operation mechanism for this tactile switch is push-on, providing tactile feedback during use.
The tactile switch has a compact size of 4.9 mm square, making it suitable for portable electronics.
This product is manufactured in Malaysia.
This tactile switch is suitable for applications in consumer electronics, automotive audio controls, instrumentation, and compact electronic systems.
The switch contact current rating for this model is up to 20mA.
The actuator color of the push plate is silver.
