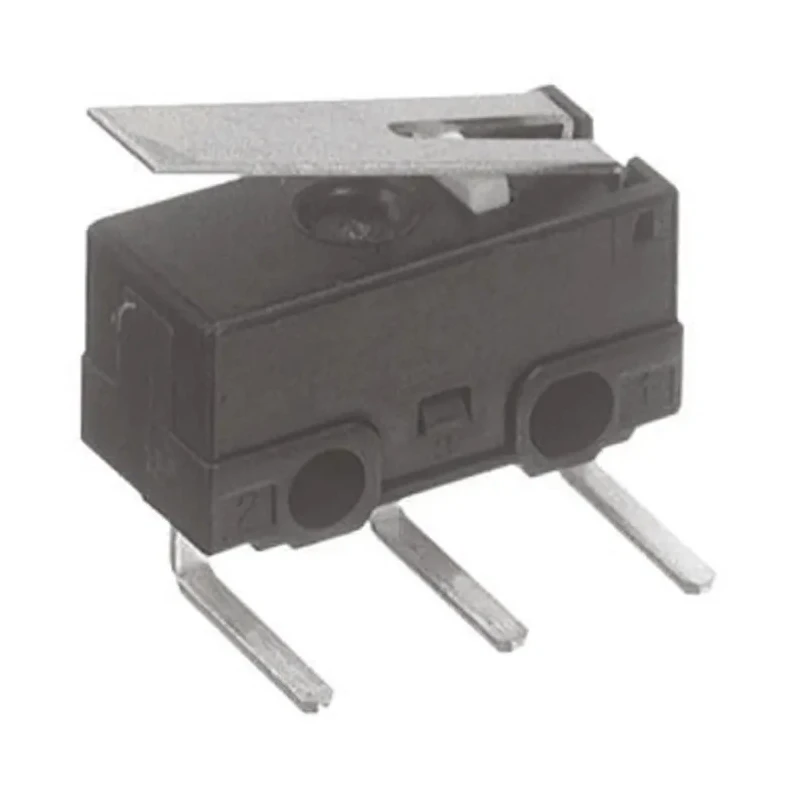

Panasonic Hinge Lever Micro Switch, Right Angle PCB Terminal, 1A, 125V AC, 30V DC, SPCO AH1782-A

Panasonic AH1782-A micro switch features a hinge lever actuator and right angle PCB terminal designed for precise and reliable switching in compact electronic equipment. This ultra miniature micro switch measures 12.8 x 6 x 8.5 mm, making it ideal for space-constrained applications like computer mice, mobile phone chargers, and automotive key position detections.

The switch supports a contact current of 1 ampere, operating at voltages up to 125V AC and 30V DC, with an SPCO contact configuration ensuring stable switching performance. It requires a low operating force of 0.25N, enabling sensitive actuation. Its operating temperature range from -25°C to 85°C allows it to function reliably in diverse environmental conditions.

Robust construction gives it a mechanical lifespan rated for 10 million operations, making it suitable for high-duty industrial and consumer electronic applications. The integral moulded terminal block prevents soldering flux from entering the switch housing, enhancing durability and longevity. The flat terminal shape facilitates easy and secure PCB soldering.

This micro switch complies with international standards including CSA and UR, and is RoHS certified, making it suitable for environmentally conscious manufacturing. Made in Thailand, it assures quality craftsmanship and consistent performance.

Commonly utilized in industrial automation, electronics manufacturing, laboratory instruments, and automotive electronics, this switch offers dependable performance where miniature size and precise actuation are critical.

Ultra miniature design with compact dimensions of 12.8 x 6 x 8.5 mm. SPCO contact configuration suitable for precision switching applications. Operating force of 0.25N ensures sensitive actuation. Wide operating temperature range from -25°C to 85°C for varied environments.

High mechanical life capacity rated for 10 million operations. Integrally moulded terminal block prevents soldering flux ingress. Flat terminal shape enables easy soldering on PCBs. Certified to CSA, UR standards and RoHS compliant.

Designed for use in computer mice, mobile charger units, automotive position detection. Manufactured in Thailand ensuring quality and consistency. Explore the comprehensive range of Panasonic Micro Switches and precision electronic components at EnvMart for your industrial and commercial automation needs.
