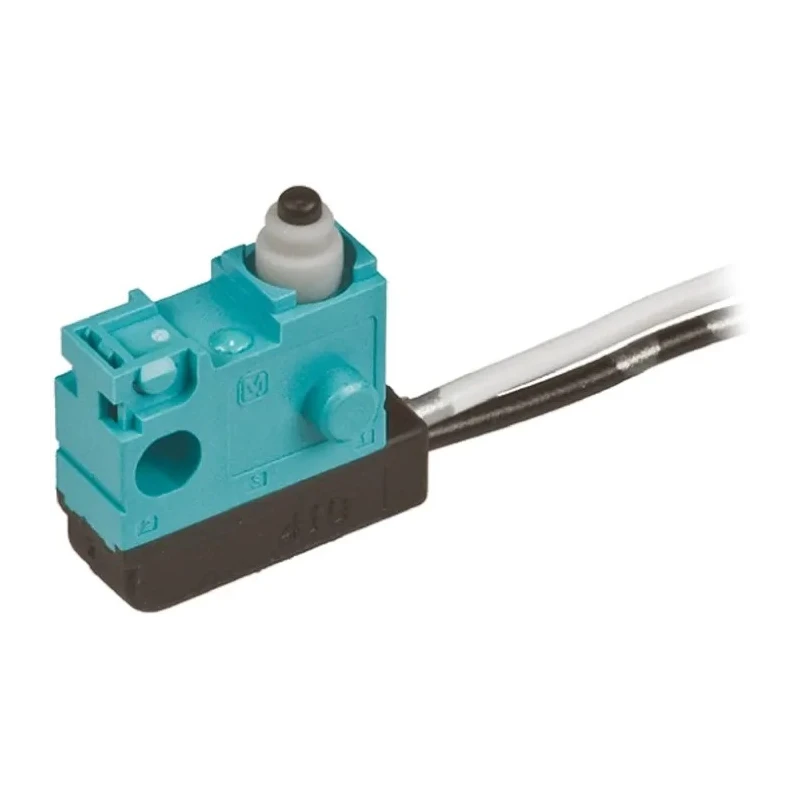

Panasonic Pin Plunger Micro Switch, Pre-Wired Terminal, 100mA, 30 V dc, SPST, IP67 ASQ10320
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Model | ASQ10320 |
| Depth | 5.4mm |
| IP Rating | IP67 |
| Series | ASQ |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Actuator Type | Pin Plunger |
| Minimum Operating Temperature | -40°C |
| Terminal type | Pre-Wired |
| Standards/Approvals | RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 699-0094Brand: PanasonicManufacturers Part No.: ASQ10320 |
| Contact DC Voltage | 30V dc |
| Switch Contact Current | 100mA |
| Operating Force | 1.5N |
| Microswitch Type | Ultra Miniature |
Key Features
- The switch features a pin plunger actuator for precise mechanical control.
- Pre-wired terminals provide ease of installation and wiring.
- Its compact ultra-miniature design fits space-constrained environments with a 5.4mm depth.
- Capable of operating at 30 V DC with a contact configuration of SPST for single-pole, single-throw use.
- IP67 rated for waterproof and dustproof protection ensuring durability in harsh conditions.
- Operates silently and provides high contact reliability for low level switching loads.
- Designed for industrial, automotive, and automation systems applications.
- Wide temperature range from -40°C to 85°C supports diverse environment needs.
Product Description
Panasonic ASQ10320 Pin Plunger Micro Switch is an ultra-miniature contact device designed for reliable switching performance in industrial and automotive use cases. Rated at 100mA contact current with a 30 V DC voltage, this micro switch features a pin plunger actuator and pre-wired terminals that simplify installation and wiring.
The switch is IP67 rated, providing robust protection against dust ingress and water immersion, making it suitable for harsh environments. Its compact 5.4mm depth facilitates integration into tight spaces, while the silent operation and bounce-free switching enhance control precision.
This model employs a novel sliding contact system allowing high overtravel of 2.5mm with optimal contact force, ensuring stable and hysteresis-free switching action. The switch can operate within a temperature range from -40°C to 85°C, accommodating various industrial climates.
Compliant with RoHS directives, it supports environmentally responsible manufacturing and usage. The ASQ10320 micro switch is widely used across industrial automation equipment, automotive systems, and machinery requiring durable and reliable low-level load switching.
The switch actuator type is a pin plunger facilitating mechanical actuation. Pre-wired terminal connections allow for quick and secure electrical integration. Current rating stands at 100mA, ideal for control circuits and signal switching.
Contact configuration is single-pole, single-throw (SPST) to manage simple on/off functions. IP67 rating guarantees dust-tight and immersion protection for harsh working conditions. Operating force of 1.5N facilitates precise activation effort.
Operating temperature spectrum from -40°C minimum to 85°C maximum enables use in varied settings. Japanese origin ensures rigid manufacturing standards and reliability. RoHS compliance assures product safety and ecological sustainability.
Ultra-miniature size contributes to compact industrial designs. Explore Panasonic Micro Switches at EnvMart for trusted quality and application versatility across electrical automation, automotive, and industrial sectors.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 85°C.
This micro switch features a single-pole, single-throw (SPST) contact configuration.
It has a compact depth of 5.4mm, making it suitable for space-constrained environments.
The switch is rated for a contact current of 100mA and operates at a voltage of 30 V DC.
It uses a pin plunger actuator for mechanical control.
This micro switch has an IP67 rating, providing protection against dust and water immersion.
The minimum operating temperature is -40°C, allowing for use in various industrial climates.
The pre-wired terminals simplify installation and wiring, allowing for quick and secure electrical integration.
The operating force required is 1.5N, facilitating precise activation.
Yes, it is compliant with RoHS directives, ensuring environmentally responsible manufacturing and usage.
This model is widely used in industrial automation equipment, automotive systems, and machinery requiring low-level load switching.
It employs a novel sliding contact system that allows high overtravel of 2.5mm with optimal contact force for stable and hysteresis-free switching action.
