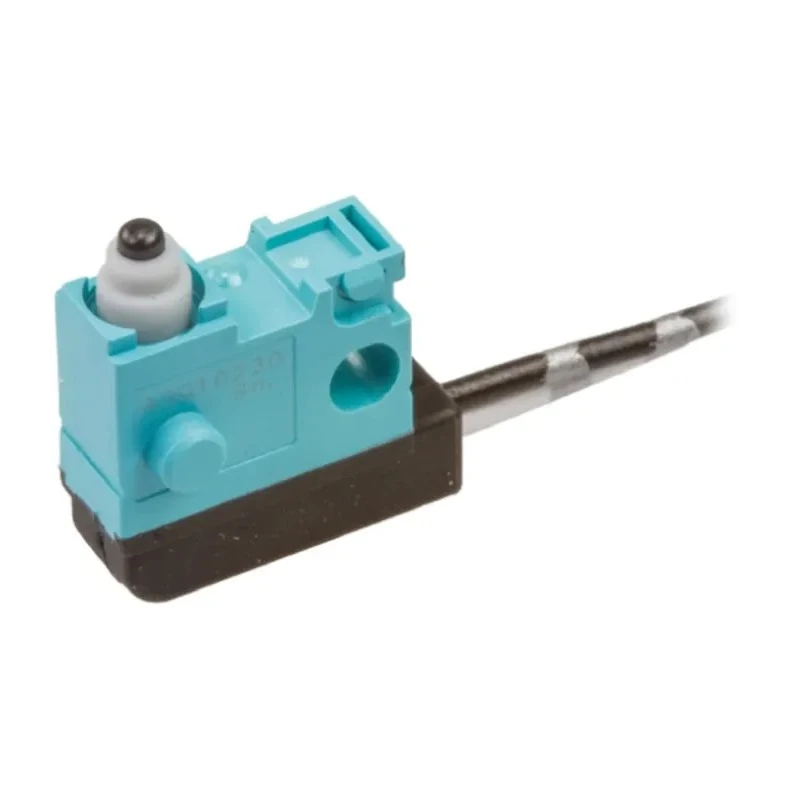

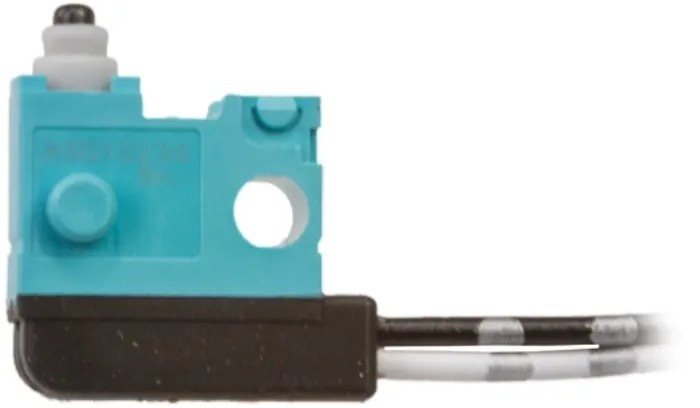

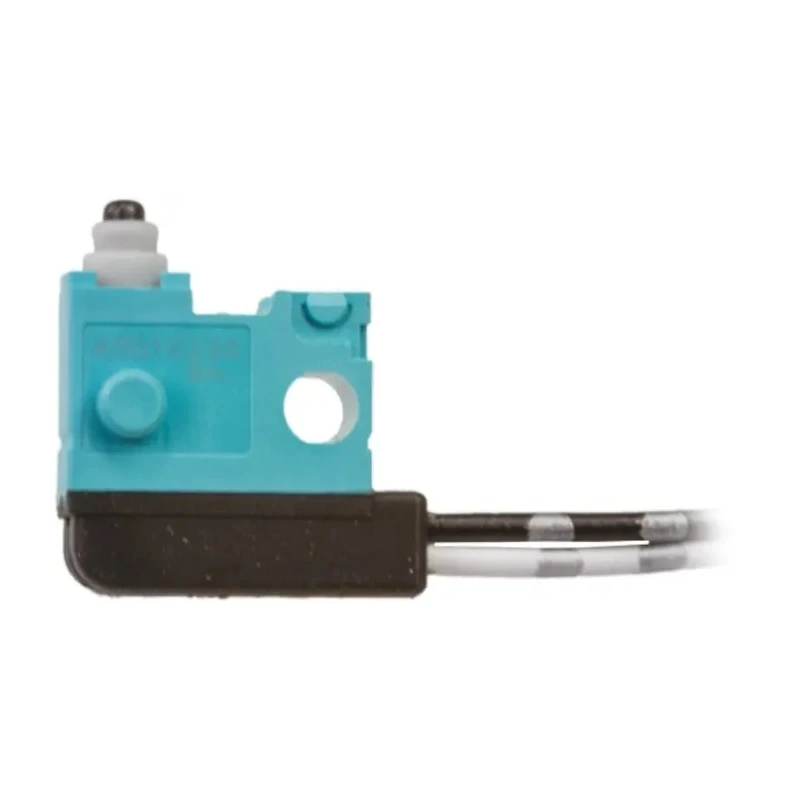

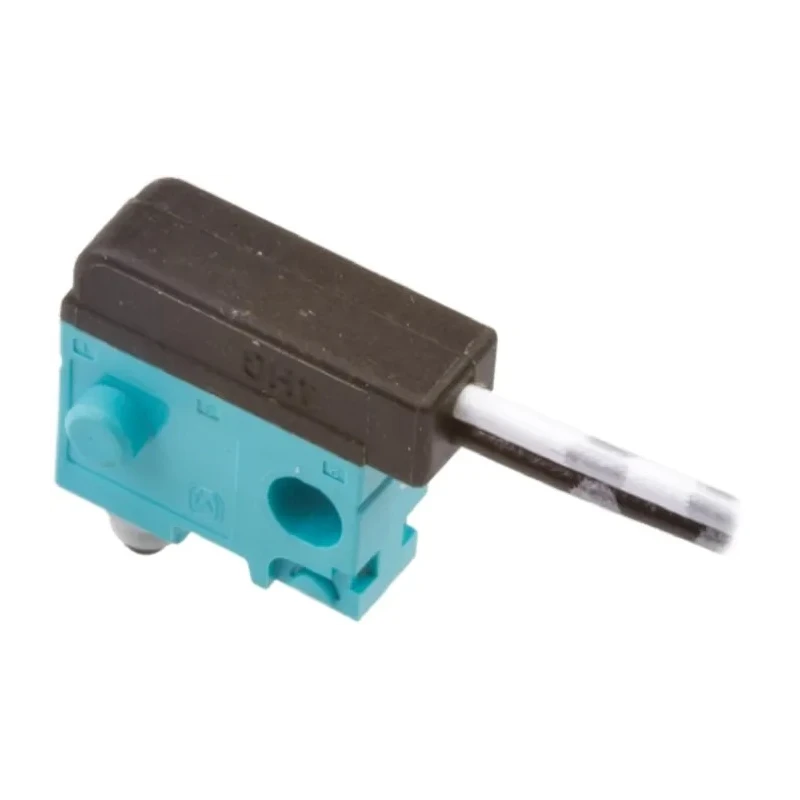

Panasonic Pin Plunger Micro Switch Pre-Wired Terminal 100mA 30 V dc SPST IP67 ASQ10230
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Model | ASQ10230 |
| IP Rating | IP67 |
| Width | 5.4mm |
| Series | ASQ |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Actuator Type | Pin Plunger |
| Minimum Operating Temperature | -40°C |
| Terminal type | Pre-Wired |
| Standards/Approvals | RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 699-0088Brand: PanasonicManufacturers Part No.: ASQ10230Distrelec Article No.: 30121800 |
| Contact DC Voltage | 30V dc |
| Switch Contact Current | 100mA |
| Operating Force | 1.5N |
| Microswitch Type | Ultra Miniature |
Key Features
- Designed with an ultra-miniature pin plunger actuator for precise operation.
- IP67 rated enclosure providing dusttight and immersion protection.
- Operating temperature range from -40°C to 85°C for versatile industrial use.
- Features sliding contacts enabling a high overtravel of 2.5mm for easy installation and adjustment.
- Silent operation with bounce-free and hysteresis-free switching characteristics.
- High contact reliability supports low-level switching loads effectively.
- Ideal for automotive and various industrial applications demanding robust micro switches.
- Compact width of 5.4mm facilitates integration in space-constrained environments.
Product Description
Panasonic ASQ10230 is an ultra-miniature pin plunger micro switch featuring a pre-wired terminal design, rated for 100mA contact current and operational at 30 V dc. This SPST (Single Pole Single Throw) microswitch is engineered with sliding contacts, delivering an extensive overtravel of 2.5mm which simplifies both installation and precise adjustment.
With an IP67 ingress protection rating, the outer shell is dust-tight and waterproof, making it suitable for harsh industrial and automotive environments requiring high reliability and durability. The switch operates silently and is designed to eliminate contact bounce and hysteresis, enhancing switching accuracy and longevity.
The device maintains functional integrity across a wide temperature range from -40°C to 85°C, suitable for demanding applications. Its compact 5.4mm width allows easy fitment in tight spaces.
Manufactured in Japan under strict quality standards, this Panasonic ASQ series switch complies with RoHS directives, ensuring environmentally safe materials and production methods. It is highly recommended for industrial automation systems, control panels, and automotive control applications that demand reliable low-level switching performance.
Ultra-miniature pin plunger actuator enhancing precise switching. Pre-wired terminal for simplified electrical connection. High overtravel of 2.5mm enabling easy installation. IP67 rated for dust and water ingress protection.
Silent, bounce-free and hysteresis-free operation. Operating temperature range from -40°C to 85°C suited for various environments. Complies with RoHS environmental standards. Compact 5.4mm width for space-saving applications.
Manufactured in Japan ensuring high quality. SPST contact configuration supporting industrial and automotive uses. Explore more Micro Switches and electrical components in the Electrical & Automation category at EnvMart to find the right fit for your industrial automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 85°C.
This micro switch features a Single Pole Single Throw (SPST) contact configuration.
The width of this model is 5.4mm, making it suitable for space-constrained applications.
The operating force for this micro switch is 1.5N.
This micro switch has an IP67 rating, providing dust-tight and waterproof protection.
The minimum operating temperature for this model is -40°C.
The contact current rating for this micro switch is 100mA.
This model utilizes a pin plunger actuator for precise operation.
The switch operates at a contact DC voltage of 30V.
This model complies with RoHS environmental standards, ensuring safe materials and production methods.
This micro switch features a pre-wired terminal design for simplified electrical connections.
This micro switch is manufactured in Japan under strict quality standards.
