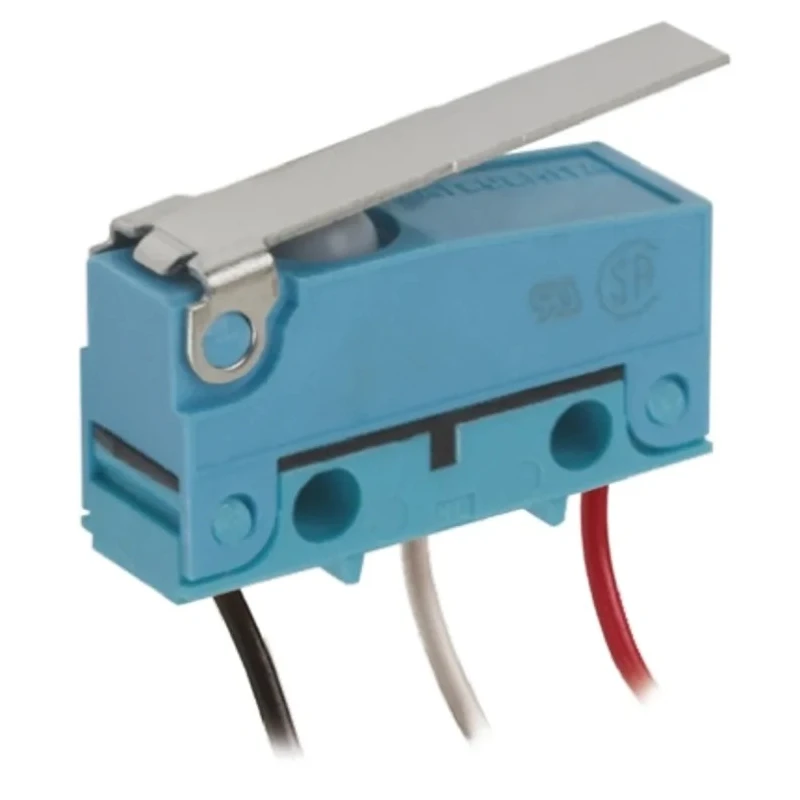

Panasonic Short Hinge Lever Micro Switch Pre-Wired Terminal 2A 30V DC SPCO IP67 ABS161140
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Length | 19.8mm |
| Model | ABS161140 |
| Depth | 11.1mm |
| IP Rating | IP67 |
| Width | 6.4mm |
| Series | ABS |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPCO |
| Actuator Type | Short Hinge Lever |
| Minimum Operating Temperature | -40°C |
| Terminal type | Pre-Wired |
| Standards/Approvals | REACH, cURus, VDE, RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 698-9823Brand: PanasonicManufacturers Part No.: ABS161140 |
| Contact DC Voltage | 30V dc |
| Switch Contact Current | 2A |
| Operating Force | 0.39N |
| Mechanical Life | 5000000Operations |
| Microswitch Type | Subminiature |
Key Features
- The micro switch has a short hinge lever actuator.
- Pre-wired terminal design ensures easy installation.
- Rated for 2A contact current and 30 V DC contact voltage.
- Sealed with IP67 rating for high environmental resistance.
- Compact subminiature size with dimensions 19.8mm length, 11.1mm depth, and 6.4mm width.
- Mechanical life of up to 5,000,000 operations ensures durability.
- Operating temperature range from -40°C to 85°C.
- Complies with REACH, cURus, VDE, and RoHS standards.
Product Description
Panasonic ABS161140 Short Hinge Lever Micro Switch features a pre-wired terminal and is rated for a 2 ampere switch contact current at 30 volts DC with Single Pole Change Over (SPCO) contact configuration. This subminiature micro switch is sealed and IP67 rated, offering excellent protection against dust and water ingress.
The compact dimensions of 19.8 mm length, 11.1 mm depth, and 6.4 mm width make it suitable for space-constrained applications. Its robust design supports an operating force of 0.39N and is capable of enduring up to 5 million mechanical operations, ensuring long-term reliability.
Designed using elastomer double moulding and ultrasonic swaging technology, this switch offers uniform sealing and environmental resistance. The operating temperature ranges from -40°C to 85°C, allowing use in diverse industrial and commercial environments.
Standards compliance includes REACH, cURus, VDE, and RoHS directives, confirming environmental and safety adherence. Typical applications include use in home appliances and automotive electrical systems where dependable switching is critical.
The short hinge lever actuator enables precise and responsive operation. Pre-wired terminals simplify wiring and installation tasks. IP67 sealing protects the switch from water and dust exposure. Compact size supports integration into tight spaces.
Durable mechanical life supports extensive use in industrial environments. Wide operating temperature range ensures versatility. Conformity with international standards guarantees safety and compliance. Used extensively in control panels, automation systems, and automotive electronics.
Manufactured in Japan with a focus on quality and reliability.
This micro switch is part of Panasonic's ABS series, known for subminiature sealed switches. It is an excellent choice for engineering, industrial automation, electrical, and automotive applications requiring compact and reliable switching solutions.
Explore more electronic component products and Micro Switches in the appropriate categories on EnvMart to find compatible solutions for your industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This micro switch is rated for a contact current of 2A and a contact voltage of 30V DC.
It has an IP67 rating, providing excellent protection against dust and water ingress.
The dimensions are 19.8mm in length, 11.1mm in depth, and 6.4mm in width.
It has a mechanical life of up to 5,000,000 operations, ensuring long-term reliability.
The operating temperature range is from -40°C to 85°C, allowing for use in diverse environments.
It features a short hinge lever actuator, enabling precise and responsive operation.
It complies with REACH, cURus, VDE, and RoHS standards, confirming its environmental and safety adherence.
It has a pre-wired terminal design that simplifies wiring and installation tasks.
The contact configuration is Single Pole Change Over (SPCO).
The switch requires an operating force of 0.39N.
It is manufactured in Japan, reflecting a focus on quality and reliability.
Typical applications include home appliances and automotive electrical systems where dependable switching is critical.
