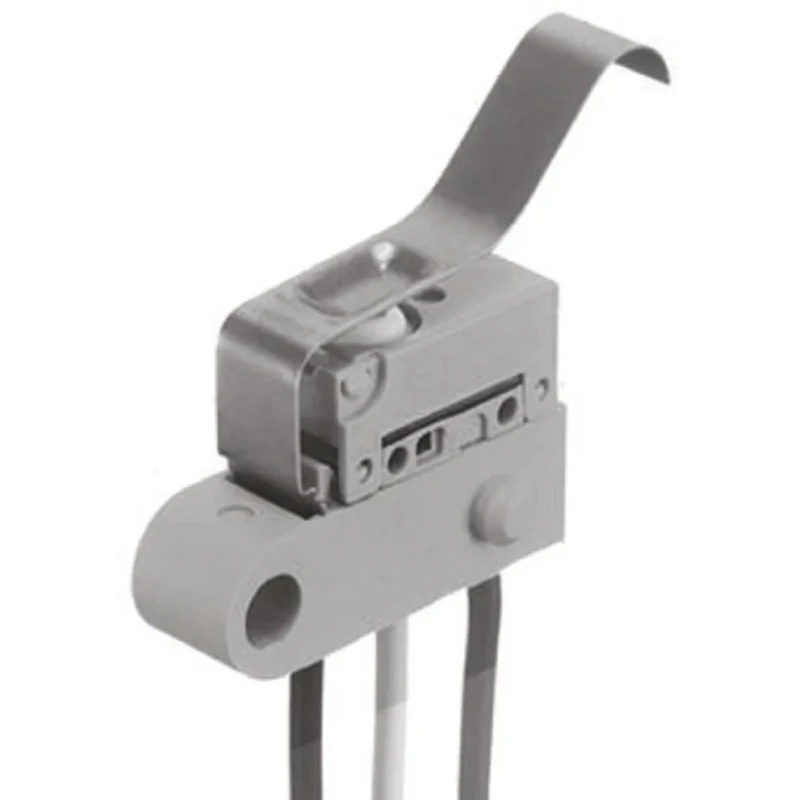

Panasonic Leaf Lever Micro Switch, Pre-Wired Terminal, 100mA, 125 V ac, 30 V dc, SPCO, IP67 ABJ361841

Panasonic ABJ361841 Leaf Lever Micro Switch is an ultra-miniature switch designed with a leaf lever actuator and pre-wired terminals. It supports a switch contact current of 100mA at 125 V AC and 30 V DC, making it suitable for low voltage electrical control applications. The Single Pole Change Over (SPCO) contact configuration ensures dependable switching performance. This micro switch enjoys an IP67 ingress protection rating, signifying dust-tight and water immersion resistance, ideal for industrial and harsh environment uses.

The operating force required is 0.98N, offering a balanced activation effort without compromising responsiveness. It can operate reliably over a wide temperature range from -40°C to 85°C, accommodating varied operational climates. The mechanical lifespan is rated for 10 million operations, underscoring excellent durability for repetitive switching tasks in automation and control systems.

The switch dimensions are compact, with a length of 12.8mm and depth of 6mm, enabling installation in space-constrained equipment. The ABJ series emphasizes superior sealing and robustness with its ultra-miniature form factor and robustness certified to recognized standards including CSA, RoHS, and UR, ensuring compliance with stringent electrical and safety regulations. Manufactured in Japan, it adheres to high quality and manufacturing standards.

Typical applications include industrial automation, electrical control panels, machinery controls, HVAC systems, and other settings where precise, reliable micro switch operation is critical. The pre-wired terminal configuration simplifies wiring tasks, improving installation efficiency. IP67 protection allows use in environments where exposure to dust or water ingress is a concern.

Overall, the Panasonic ABJ361841 is a premium sealed ultra-miniature micro switch combining compact design, robust protection, and excellent mechanical endurance for demanding electrical switch roles in industrial, laboratory, and manufacturing systems.

The actuator type is a durable leaf lever ensuring reliable operation. Pre-wired terminals facilitate easy installation and connection. The switch supports an operating force of 0.98N for consistent actuation. It operates within a temperature range of -40°C to 85°C suitable for harsh environments.

Mechanical life of the switch is rated for 10 million operations for extended durability. Ultra miniature form factor with dimensions length 12.8mm and depth 6mm. Certified to CSA, RoHS, and UR standards for safety and quality compliance.

Manufactured in Japan to ensure premium build quality and reliability. Explore more quality Micro Switches and electrical components at EnvMart to suit your industrial and automation needs.
