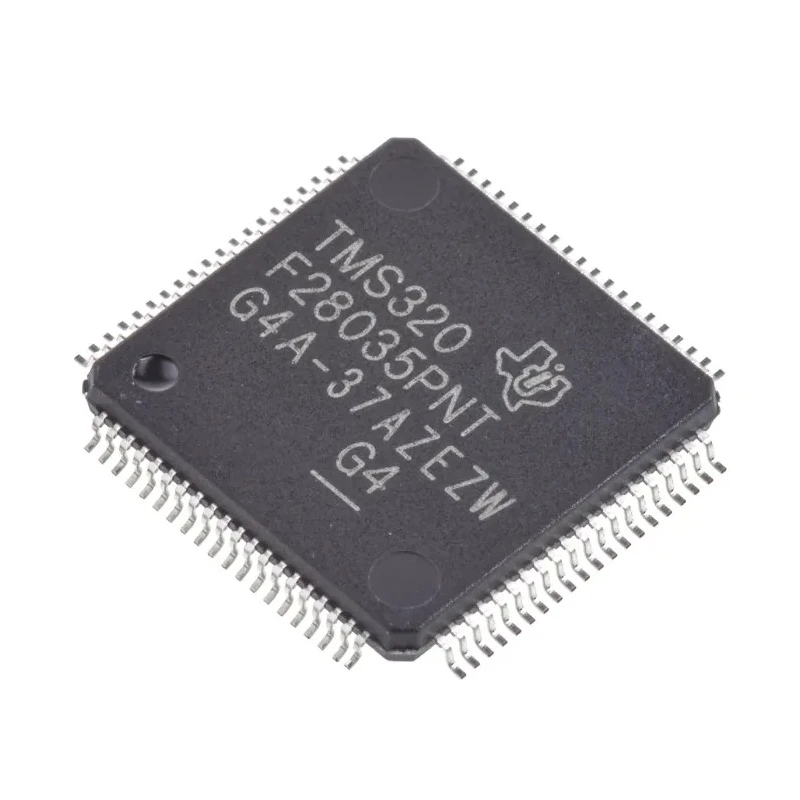

Texas Instruments Piccolo 32-bit C28x Microcontroller 128kB FLASH 60 MHz 80-Pin LQFP TMS320F28035PNT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.45mm |
| Length | 12.2mm |
| Model | TMS320F28035PNT |
| Width | 12.2mm |
| Mount Type | Surface |
| Series | Piccolo |
| Maximum Operating Temperature | 105°C |
| Package Type | LQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 20kB |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 698-7013Brand: Texas InstrumentsManufacturers Part No.: TMS320F28035PNT |
| Pin Count | 80 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 4.6V |
| Minimum Supply Voltage | -0.3V |
| Device Core | C28x |
| Program Memory Size | 128kB |
| Maximum Clock Frequency | 60MHz |
| Number of Programmable I/Os | 45 |
| Analogue Comparators | 3 |
| Number of Timers | 3 |
| Instruction Set Architecture | RISC |
| ADCs | 16 x 12 Bit |
| Program Memory Type | FLASH |
| DACs | 3 x 10 Bit |
Key Features
- Features a 32-bit C28x device core with RISC architecture for efficient processing.
- Includes 20kB RAM and 128kB FLASH program memory for robust application support.
- Operates at a maximum supply voltage of 4.6V and minimum of -0.3V.
- Equipped with 45 programmable I/Os, three 10-bit DACs, and sixteen 12-bit ADCs for versatile interfacing.
- Meets AEC-Q100 automotive standard and operates reliably from -40°C to 105°C.
- Compact dimensions with 12.2mm length, width, and a height of 1.45mm in LQFP package.
- Surface mount package designed for modern PCB assembly processes.
- Includes three analogue comparators and three timers to support complex control tasks.
Product Description
Texas Instruments TMS320F28035PNT Piccolo 32-bit C28x Microcontroller features a high-performance C28x device core built on RISC architecture, designed for demanding industrial and automotive embedded control applications. With a maximum clock frequency of 60 MHz and 128kB of FLASH program memory, it supports efficient execution of control algorithms and signal processing.
This microcontroller includes 20kB of RAM, providing ample data storage for real-time tasks. Its surface-mount 80-Pin LQFP package with compact dimensions (12.2mm x 12.2mm x 1.45mm) allows space-efficient PCB layout.
Designed to meet the stringent AEC-Q100 automotive standard, the TMS320F28035PNT operates reliably across a wide temperature range from -40°C to 105°C, making it suitable for harsh environmental conditions.
The device supports up to 45 programmable input/output ports, enhanced with three 10-bit DAC channels and sixteen 12-bit ADC inputs, facilitating precise analog signal interfacing. Additional peripherals include three analogue comparators and three timers, enabling advanced control system design.
The microcontroller's operating voltage ranges from -0.3V to a maximum of 4.6V, ensuring compatibility with various power schemes in embedded environments. Its FLASH program memory supports fast code execution and frequent updates.
Features a high-speed 32-bit C28x RISC processor core. 128kB FLASH program memory and 20kB RAM for complex control applications. 45 programmable I/O pins with advanced analogue capabilities. Three 10-bit DACs and sixteen 12-bit ADCs support precise signal conversions.
Meets automotive AEC-Q100 standard for reliability in automotive environments. Operates securely within temperature ranges of -40°C to 105°C. Compact 80-Pin LQFP surface-mount package suits modern manufacturing. Three timers and three analogue comparators enhance timing and control functions.
This microcontroller is ideal for use in industrial automation, automotive control systems, and embedded applications where reliable high-speed processing and precision signal interfacing are critical. With its robust peripheral set and automotive qualification, it offers flexibility and durability for complex embedded designs.
Explore the complete range of Texas Instruments Microcontrollers and components for your next high-performance embedded project at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 60 MHz.
It features 128kB of FLASH program memory for efficient execution of control algorithms.
This microcontroller includes 45 programmable input/output ports, allowing for versatile interfacing.
It operates reliably within a temperature range of -40°C to 105°C.
It is available in an 80-Pin LQFP surface-mount package, suitable for modern PCB assembly.
The TMS320F28035PNT features sixteen 12-bit ADCs for precise analog signal interfacing.
Yes, it meets the AEC-Q100 automotive standard, ensuring reliability in automotive applications.
This microcontroller has a RAM size of 20kB, providing sufficient data storage for real-time tasks.
It includes three 10-bit DACs for enhanced analog signal processing capabilities.
The operating supply voltage ranges from a minimum of -0.3V to a maximum of 4.6V.
This microcontroller is equipped with three timers to support complex control tasks.
The height of this microcontroller in its LQFP package is 1.45mm.
